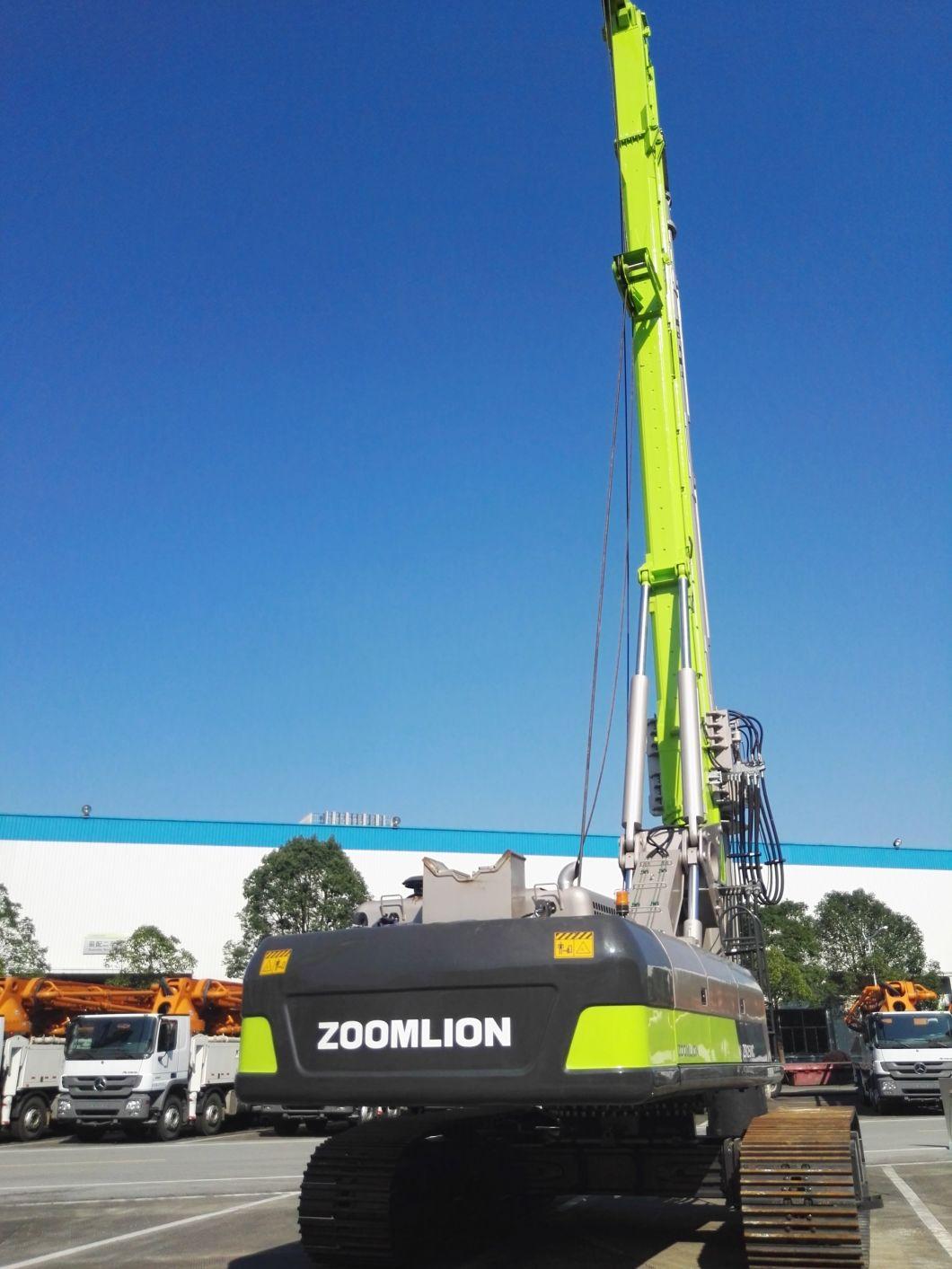

Zoomlion Rotary Drilling Rig Zr160c-3 Drilling Depth 62m

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：>150m
  • Bit Type：Diamond Bit
  • Drilling Way：Compound

Base Info

  • Model NO.：ZR160C-3
  • Type：Crawler
  • Transport Package：by Sea
  • Specification：Max. Output Torque: 155 kN. m
  • Trademark：sany
  • Origin：China
  • HS Code：84264910
  • Production Capacity：500,Month

Description

NAME SPEC.Torque(KN.M)160Drilling Diameter(mm)1500Drilling Depth(m)inter-locking44Friction56/62Drilling Speed(r/min)5~33 / 5~45Engine ModelCummins 6C 8.3Rated Power(kw)186Rated Engine Speed(r/min)2000Max.Crowd Force(kN)160Max.Crowd Cylinder Pull(kN)160Line Pull(main winch)(kN)160Line Speed(main winch)(m/min)73Line Pull(aux.winch)(kN)60Line Speed(aux.winch)(m/min)80Operating Mass(t)50Traction Force(kN)330Rope diameter(Main winch)(mm)26Rope diameter(auxiliary winch)(mm)18Zoomlion Rotary Drilling Rig Zr160c-3 Drilling Depth 62m
