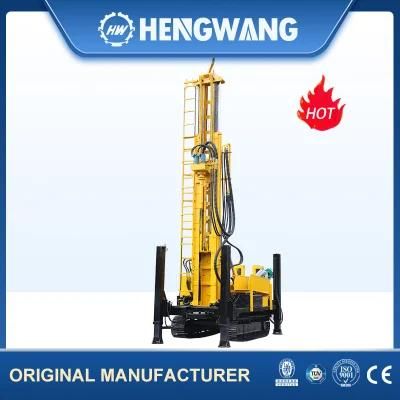

Crawler Pneumatic Hard Rock Borehole Drilling Rig

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Support
  • Warranty：Support
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：150-200mm

Base Info

  • Model NO.：180m
  • Drill Hole Depth：100-150m
  • Bit Type：DTH Bit
  • Drilling Way：Impactor
  • Type：Crawler
  • Dimension：3400*1500*2400mm
  • Drilling Diameter：130-245mm
  • Overall Weight：3.5t
  • Working Air Pressure：1.45 - 2.5MPa
  • Air Consumption：15 - 27m3,Min
  • Main Machine Power：Yunnei 42kw
  • Transport Package：FCL
  • Specification：3400*1500*2400mm
  • Trademark：HW
  • Origin：China
  • Production Capacity：8000 Set ,Year

Description

Model

HQZ-180L

Overall weight (T )

3.5

Dimension (mm )

3400*1500*2400

Drilling diameter (mm )

130-245

Drilling depth (m)

180

One-time advance length of the drill(mm)

3000

Traveling speed (km/h )

2.5

Climbing ability (max )

25°

Minimum Ground Clearance (mm)

250

Working Air Pressure (mpa )

1.45 - 2.5

Air consumption(m³/min)

15 - 27

Main machine power (kw)

Yunnei 42Kw

Rotary Speed (rpm)

38 - 80

Rotary torque (Nm)

4000-5000

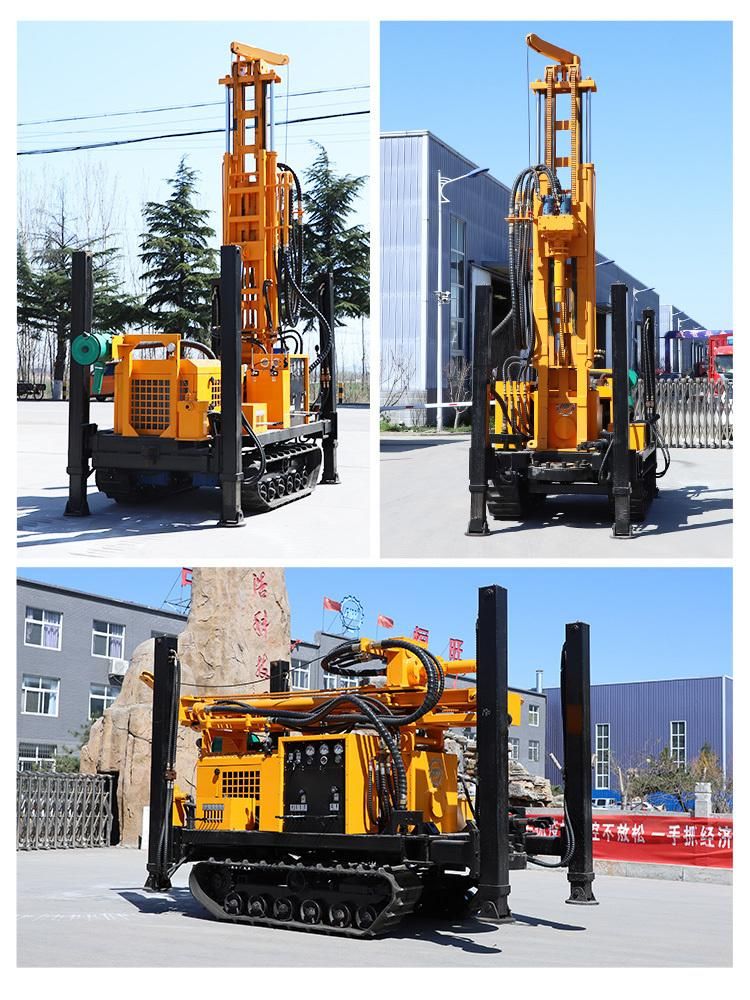

Crawler Pneumatic Hard Rock Borehole Drilling Rig
Crawler Pneumatic Hard Rock Borehole Drilling Rig

Crawler Pneumatic Hard Rock Borehole Drilling Rig
Crawler Pneumatic Hard Rock Borehole Drilling Rig
