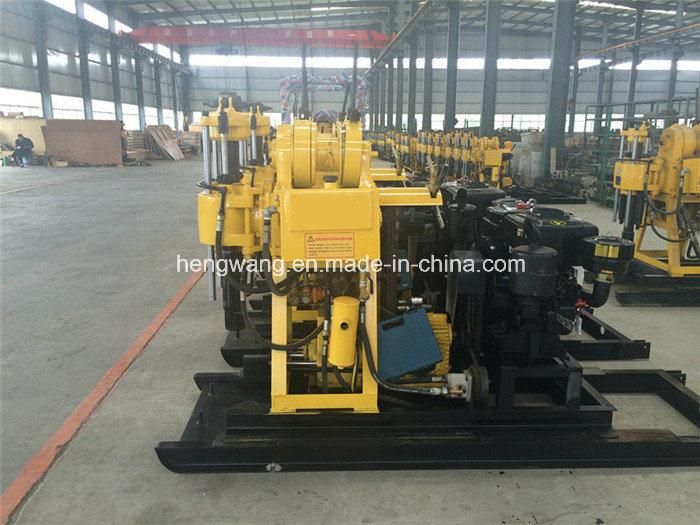

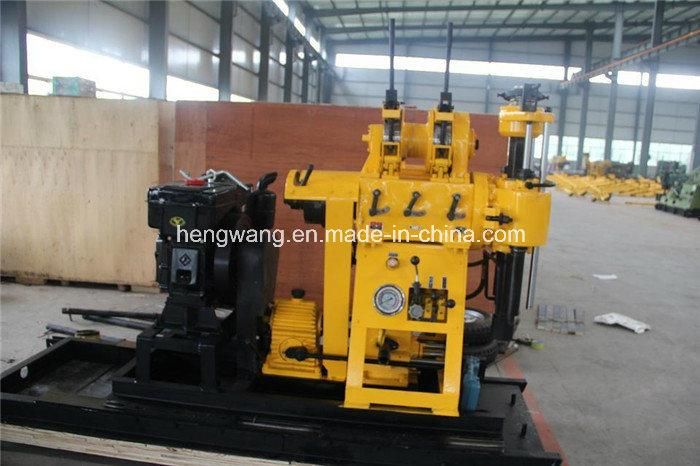

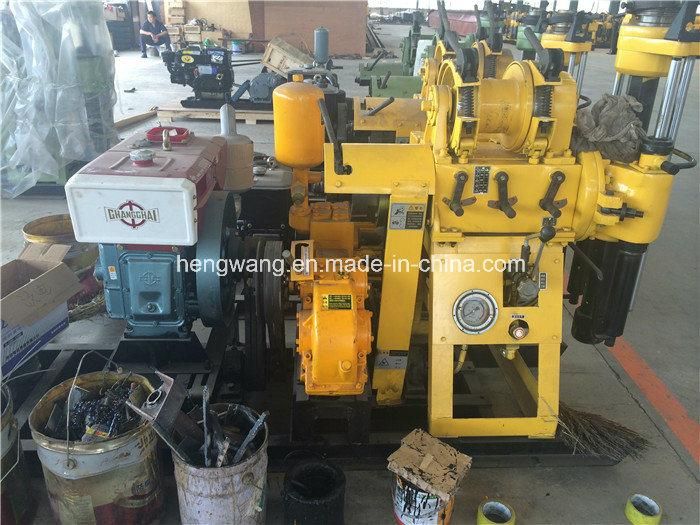

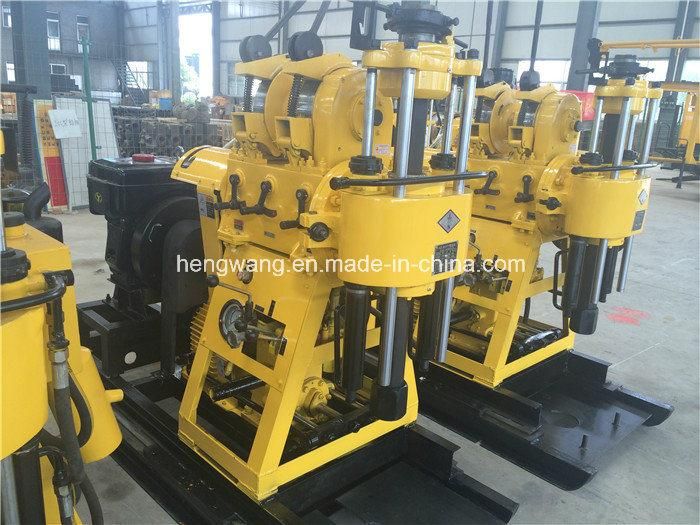

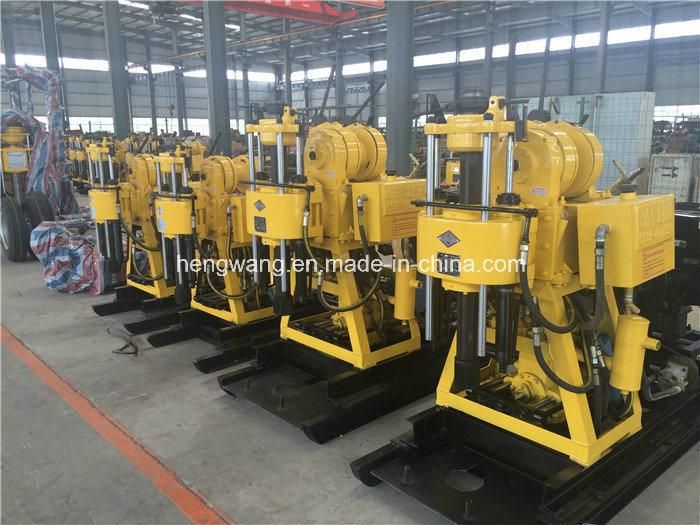

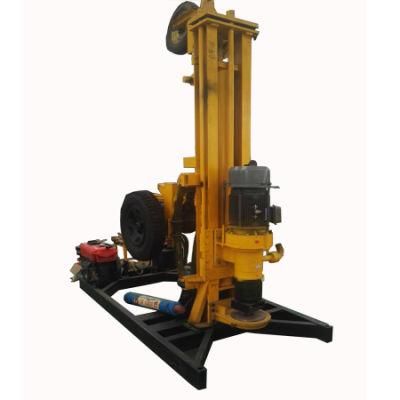

100-200m Water Well Drilling Machine/Borehole Drilling Machine
Ji Ning Hengwang Mining Machinery Co., Ltd.- Certification：ISO 9001:2000
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：100-150mm
- Drill Hole Depth：100-150m
- Bit Type：Diamond Bit
Base Info
- Model NO.：HW
- Drilling Way：Mobile Gyrator
- Type：Core Drilling Rig
- Part Name：Water Well Drilling Rig
- Drilling Depth：160m
- Maximum Open Hole Caliber：260mm
- End Hole Caliber：75mm
- Drill Rod Caliber：50mm
- Drilling Angle：90~75
- Diesle Engine Power：18 HP
- Usage：Coal, Water Well
- Power Type：Diesel
- Transport Package：Wooden Case
- Specification：SGS
- Trademark：HW
- Origin：Shandong, China
- HS Code：8430412100
- Production Capacity：1000-2000 Sets,Month
Description
Unity machine parameter
Drilling depth
10-160m
Maximum open hole caliber
260mm
End hole caliber
75mm
Drill rod caliber
50mm
Drilling angle
90~75
Drill weight (No include power)
510 560kg
Unity machine dimensions
2.5×1×1.3 2.5×0.9×1.3m
Spindle
spindle speed
142,285,570r/min
Spindle stroke
450mm
Hoist
Max.single line hoisting capacity
960kg
Single line lifting speed
0.41,0.82,1.64m/s
Tightrope caliber
27m
Mud pump
Type
Horizontal single urn twin-action
Displacement
95/77L/min
Diesle engine
Model s1110 18HP
Electric motor
Y160M-4 11kw 1440r/min
Maximum pressure
1.2Mpa
Work pressure
0.7Mpa
Water inlet caliber
30mm
Water to exit caliber
25mm
Triangle conveyor belt
B1575mm
