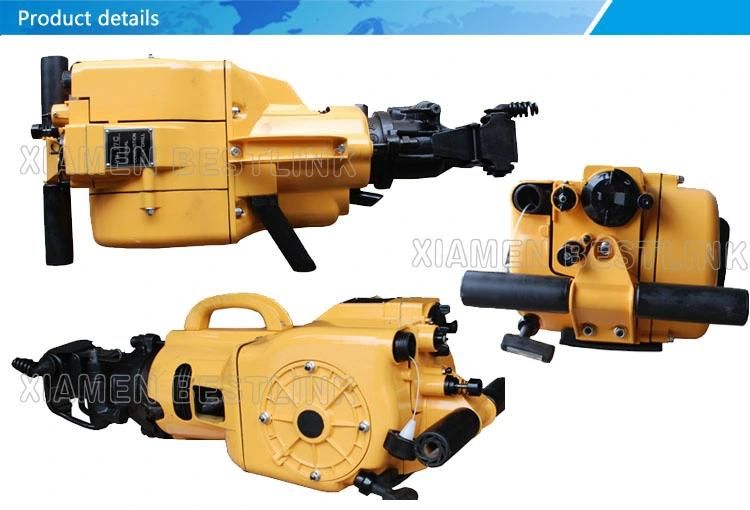

Yn27 Gas Powered Rock Drill Breaker

Xiamen Bestlink Factory Co., Ltd.

Certification：ISO 9001:2008
Condition：New
Motor：AC Motor
Drill Hole Diameter：<100mm
Drill Hole Depth：<30m
Bit Type：Diamond Bit

Base Info

Model NO.：YN27
Drilling Way：Rotary
Color：Yellow
Gross Weigh：27kgs
Function：New
Hole Diameter：28-42mm
Mining Object：Coal Machinery
Usage：Coal
Power Type：Gasoline
Type：Drilling Machine
Transport Package：Carton
Specification：ISO
Trademark：BESTLINK
Origin：China
HS Code：84671100
Production Capacity：1000000PCS Per Year

Description

Technical specificationsWeight of main machine27kgOverall dimensions(L*W*H)746*315*229mmType of engineSingle cylinder, air cooled two strokesCylinder diameter*stroke of pistonΦ58*70mmRotation speed of engine≥2450rpmDisplacement of engine piston185cm³Type of carburetorhand needle valve, floatless typeIgnition systemcontrollable silicon, contactless systemDrilling speed (mean value of five holes)≥250mm/minDrilling hole diameterΦ28-42mmMax drilling depth6mFuel consumption≤0.12L/mTank capacity≥1.5literMixture ratio of gasoline and lubrication oil (in volumes)12:01Drill rod and breaker shankHex22*108mmRotating speed of drill rod≥200rounds/minClearance of spark plug0.5-0.7mm Yn27 Gas Powered Rock Drill Breaker

Yn27 Gas Powered Rock Drill Breaker

Yn27 Gas Powered Rock Drill Breaker

Yn27 Gas Powered Rock Drill Breaker
