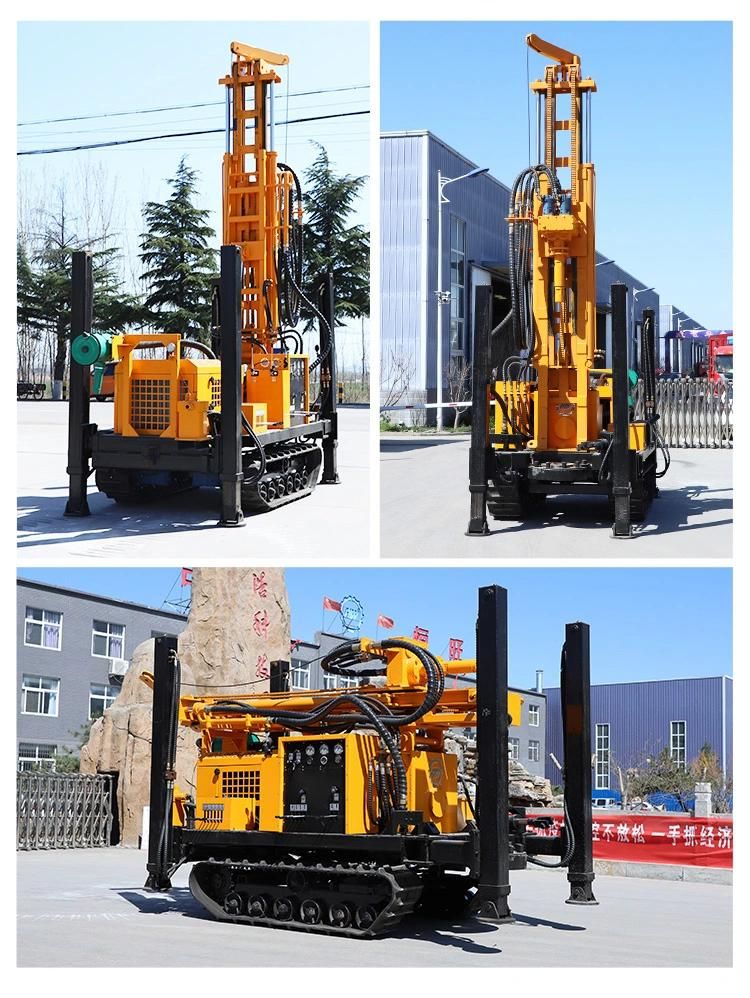

Depth 300m Hydraulic Water Well Drilling Rig
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：Diesel Engine
- Drill Hole Diameter：>300mm
Base Info
- Model NO.：HQZ-320
- Drill Hole Depth：>200m
- Bit Type：Hammer Bit
- Drilling Way：Rotary
- Type：Crawler
- Product Name：Water Well Drilling Rig
- Drill Depth：260m
- Drill Diameter：100-300mm
- Engine Power：76kw
- Machine Weight：6500kg
- Rotary Torque：7000-9000nm
- Air Consumption：17-35m³,Min
- Working Air Pressure：1.7-3.0MPa
- Min. Ground Clearance：250mm
- Transport Package：Standard
- Specification：4100*1900*2600mm
- Trademark：HW
- Origin：China
- HS Code：8430691900
- Production Capacity：200sets,Year
Description
Mud pump hammer air compressor drill rig for rock mine Model HQZ150L HQZ180L HQZ260L HQZ300L HQZ400L HQZ500L Overall weight (T) 3.5 4.2 6.4 8 8.7 9.5 Dimension (mm ) 3400*1500*2400 3800*1700*2350 4100*1900*2600 5500*1950*2780 5300*2050*2700 5350*2100*2700 Drilling diameter(mm ) 130-245 130-294 140-300 140-325 130-400 140-400 Drilling depth(m) 150 180 260 300 400 500 One-time advance length of the drill(mm) 3000 3000 3000 3000/6000 3000/6000 3000/6000 Traveling speed(km/h ) 2.5 2.5 2.5 2.5 6 6 Climbing ability(max ) 25 30 30 30 25 25 Minimum Ground Clearance(mm) 250 250 250 230 300 350 Working Air Pressure(mpa ) 1.45 - 2.5 1.7-2.5 1.7-3.0 1.7-3.3 1.7-3.5 1.7-3.5 Air consumption 15 - 27 15 - 27 17-35 23 17-35 17-35 Main machine power(kw) 42 /Yunnei 60/ Yunnei 85/Yuchai 92/Yuchai 100/6 cylinder 114/6 cylinder
Packing & Delivery
2.This rough terrain forklift truck should loaded into one 20 feet container,if you need two sets and more,need use 40HQ container.
3.Deliver it to the warehouse which you have requested . We will tell you logistic or express tracking number .
Exhibition
We have been participated in 2019 Shanghai BMW, the German BMW exhibition, exhibition of Pakistan, Russia of exhibition,exhibition of Vietnam, and so on.Our rough terrain forklift has got the favour of a lot of clients, and also made some cooperation, hope buyers from all over the world can know hengwang group in this way, we hope our rough terrain forklift can go to more countries.
FAQ

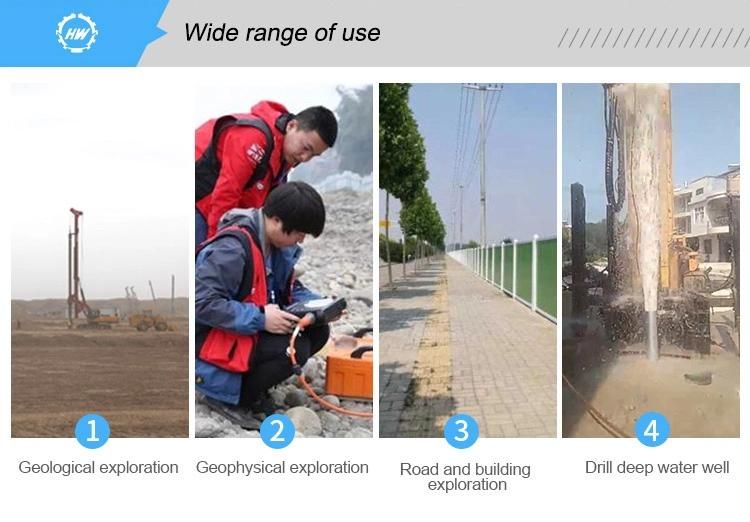

Q1.What is the main function of our drill rig?
Ans.: It has different models used for water well drill rig,mine blast hole drill,underground drill project,,etc
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.
Q6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
Q9: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend
and we sincerely do business and make friends with them,
no matter where they come from.
Q10.Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001
