Design Professional Deadline Anchor Drilling Rig with DTH Hammer

Zhengzhou Hanfa Prospecting Machinery Co., Ltd.
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：110-250mm
  • Drill Hole Depth：130m
  • Bit Type：Auger Drill Bit,DTH Drill Bit
  • Drilling Way：Impactor

Base Info

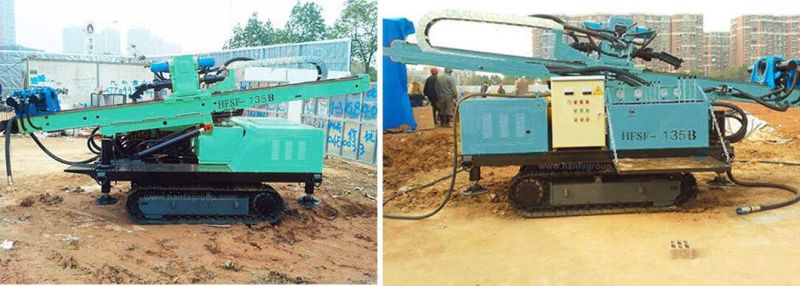

  • Model NO.：hfsf135b
  • Type：Crawler
  • Output Torque of Driver Power Head：7500n.M
  • Feeding Stroke：3500mm
  • Feeding and Lifting：40,60kn
  • Engine Power：45+22kw
  • Rig Mass：5400kg
  • Drilling Angle：10-90degree
  • Transport Package：Machine in Nude Package,Spare Parts in Wooden Case
  • Specification：63000*2000*2500mm
  • Trademark：hf
  • Origin：Zhengzhou City
  • HS Code：8430490000
  • Production Capacity：20sets,Month

Description

Overview Product Description

1. Strong drill ability, Wide Application, Long Stroke, Fast Drill Speed, Easy Accidence Handling, High Boring Efficiency.

2. Drill head is available to change speed by gear or hydraulic. Satisfied with DTH hammer, casing following, casing drilling & carbide rotation and other various drill techniques.

3. Patent Design of telescoping system in output shaft will effectively protect drill tools Turn drill head & orifice can extend the drill angle range.

Hot Sale Crawler Use Widely Track Jet Grouting Anchor Drilling Rig

4. Machine installed a hydraulic clamping & breakout system in order to automatic wrench the drill pipe and tools. Both assistant time and lobar intensity are reduced during the drill work.

5. Crawler Chassis with turning platform system, make it easy and rapidly to move and get hole position.To preferably select the parts from domestic and international well known brand products provides HFSF-Series Drill reliable performance and long using life.

6. In this series, HFSF-Q crawler drilling rig has level system (drill arm) is able to adjust mast in different angle and height without moving drilling rig. Specially for anchoring drilling in deep foundation basis.

7. Drilling rig is installed with jet grouting device in order to drill enlarge head anchoring work. It is also available for normal simplex, duplex, triplex tube jet grouting drill work.

Product ParametersCompany Profile

Hot Sale Crawler Use Widely Track Jet Grouting Anchor Drilling RigHot Sale Crawler Use Widely Track Jet Grouting Anchor Drilling RigHot Sale Crawler Use Widely Track Jet Grouting Anchor Drilling RigFAQ

1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.

2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.

3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.

4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.

5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.

6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
