• Model NO.：LD100
• Drilling Way：Rotary
• Drill Rod：60*1000mm
• Rotary Speed：0-93rpm
• Working Pressure：0.5-0.7MPa
• Air Consumption：>10m3,Min
• Lifting Force：9600n
• Performance：Excellent
• Color：Customized
• Transport Package：Standard Export Packing
• Specification：ISO, CE
• Trademark：Leadcrete
• Origin：Henan China
• HS Code：84303900
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. LD100 Drilling Way Rotary Drill Rod 60*1000mm Rotary Speed 0-93rpm Working Pressure 0.5-0.7MPa Air Consumption >10m3/Min Lifting Force 9600n Performance Excellent Color Customized Transport Package Standard Export Packing Specification ISO, CE Trademark Leadcrete Origin Henan China HS Code 84303900 Production Capacity 100 Sets/Month

Product Description

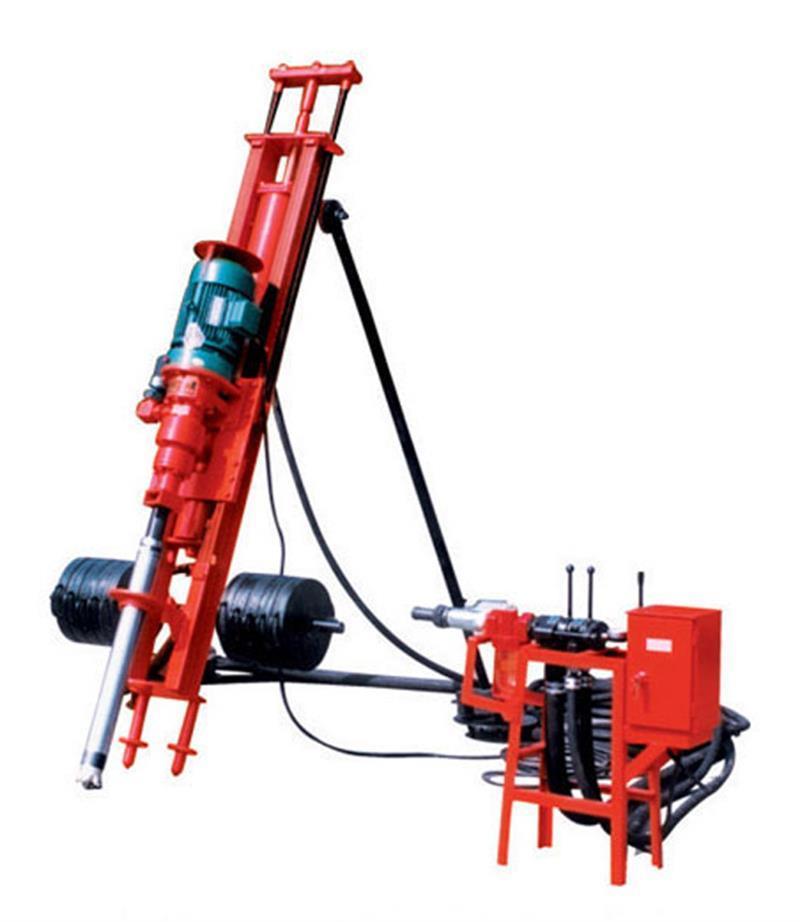

LD100 mine drill rig DTH drilling machine for borehole

Description:
The Ultimate combination of performance and economy. DTH system delivers the highest-possible drilling performance at low running cost. DTH used in variety heavy industry. It is used to drill blasting holes like small to medium mining projects., national defense projects, irrigation projects, road construction and etc. Our down-the-hole drill is ideal equipment for down-hole blasting.


Technical data:

Drilling diameter	80-100mm
Drilling depth	≥20m
Rotating speed	0-93rpm
Working pressure	0.5-0.7Mpa
Air consumption	>10m³/min
Lift power	15000N
Motor power	pneumatic
Overall demension	2100*900*750mm
Weight	500Kg
