• Model NO.：HXY180
• Bit Type：Cone Bit
• Drilling Way：Rotary
• Type：Crawler
• The Weight：4.5t
• The Hole Diameter：140-254 M
• One-Time Advance Length：3.3m
• Walking Speed：2.5km,H
• Drill Pipe Length：1.5m 2.0m 3.0m
• Width of Loading：2.4m
• Equipped Capacitor：55 Kw
• Using Air Pressure：1.7-2.MPa
• Air Consumption：17-31 M3,Min
• Swing Speed：45-70 Rpm
• Transport Package：Container
• Trademark：EVER STAR
• Origin：China
• Production Capacity：100,Year

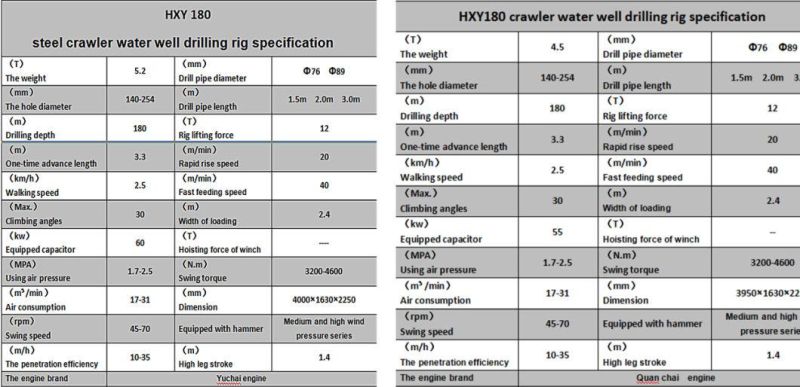

Basic Info.

Model NO. HXY180 Bit Type Cone Bit Drilling Way Rotary Type Crawler The Weight 4.5t The Hole Diameter 140-254 M One-Time Advance Length 3.3m Walking Speed 2.5km/H Drill Pipe Length 1.5m 2.0m 3.0m Width of Loading 2.4m Equipped Capacitor 55 Kw Using Air Pressure 1.7-2.MPa Air Consumption 17-31 M3/Min Swing Speed 45-70 Rpm Transport Package Container Trademark EVER STAR Origin China Production Capacity 100/Year

Product Description

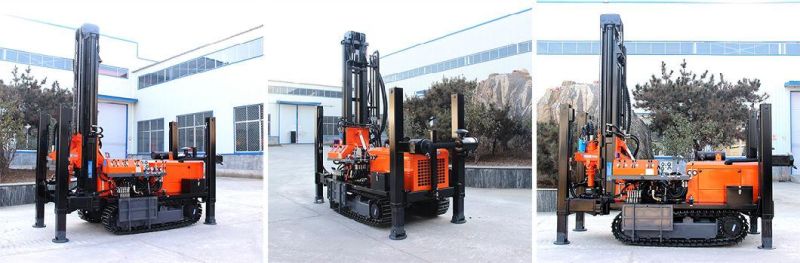

Applicable scope of HXY180 crawler pneumatic water well drilling rig
It is suitable for industrial and civilian drilling, geothermal drilling and other well holes, especially for water intake projects in rock formations in mountainous areas.1. Large drilling diameter, deep drilling, fast footage, flexible and efficient. It is equipped with high-torque hydraulic motor and large-bore hydraulic cylinder for propulsion, and the pump set design is convenient for maintenance.

2. The drilling rig adopts the excavator crawler chassis, which has strong off-road capability, independent modular design, and superior maneuverability. 3. The combined positioner can be adjusted and replaced according to different types of drill rods and impactors to ensure accurate positioning and centering. 4. The chassis comes with four high-strength hydraulic high outriggers, which have strong bearing capacity and the support height of the outriggers can reach 1.5 meters. The loading and unloading truck can reduce the cost of hoisting and can be used as a leveling and stable drilling rig during work. 5. The hoisting mechanism facilitates the lifting of drilling tools, reduces the labor intensity of the operator, and saves time and effor  FAQ 1.What is the main function of our Well Driiling Rig?
Ans.:it is the best choice for industrial and civilian drilling, geothermal drilling and other well holes, especially for water intake projects in rock formations in mountainous areas.
 2.What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer),during this time all accessories broken can be changed for a new one.And we provide videos for machine install and operation.

 3.What is the lead time and shipping method?
 Ans.:Usually the lead time is 3 days, and we send the machine by sea.

 4.What kinds of payment terms do we accept?
Ans.:T/T or L/C at sight...
