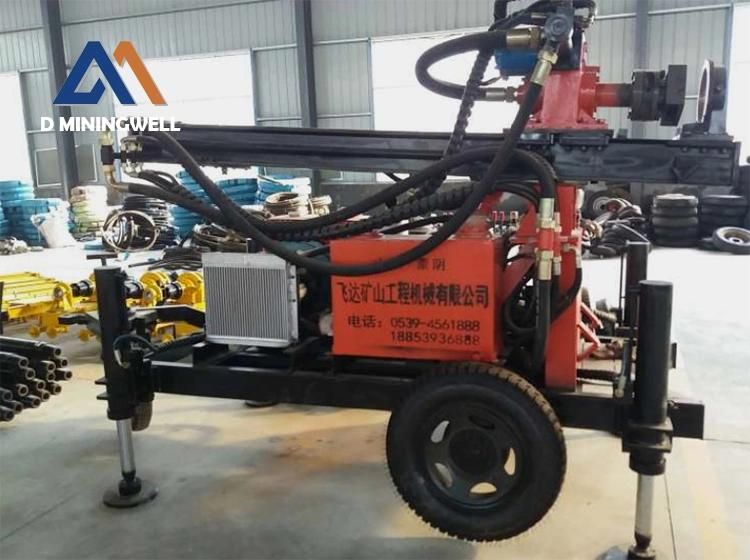

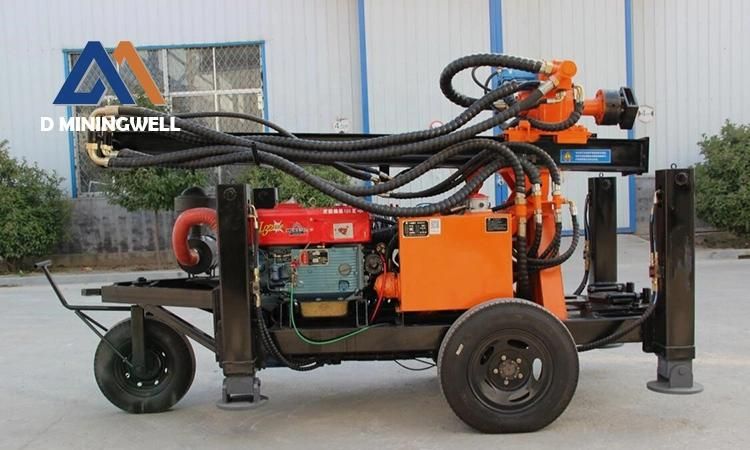

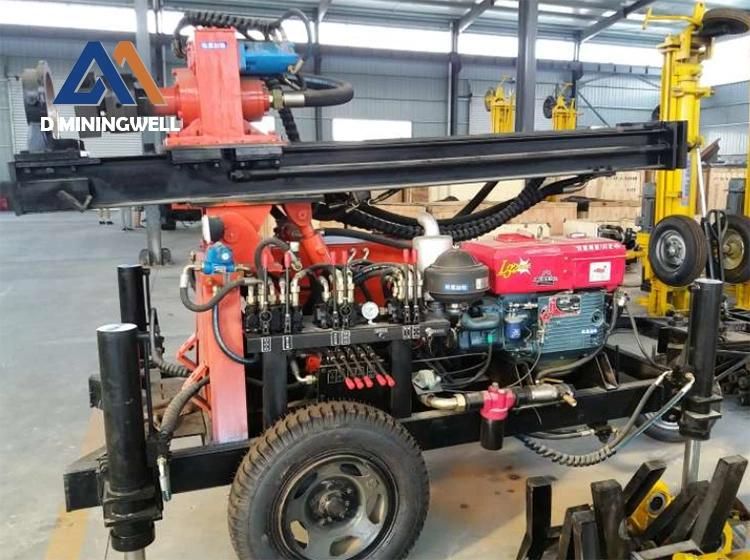

Hydraulic Fy130 Water Well Drilling Rig with 32HP Diesel Motor with 2m Drilling Rog

Zhejiang Miningwell Supply Chain Management Co., Ltd.
  • After-sales Service：Service Provided:Online Support, Video Technical
  • Warranty：3 Months
  • Certification：ISO 9001:2000
  • Condition：New
  • Drill Hole Diameter：100-219mm
  • Drill Hole Depth：130m

Base Info

  • Model NO.：FY130
  • Type：Four-Wheel trailer
  • Specification：4000*1400*2450mm
  • Origin：Zhejiang
  • Production Capacity：20,Month

Description

Technical Parameters of FY130 wheeled hydraulic well drillModelFY130Dimension4000*1400*2450mmThe hole diameter100-219mmDrilling depth130mOne-time advance length2.3mPower23kWUsing air pressure1.45-2.5MPAAir consumption15-29m³/minDrill pipe length1.5/2mDrill pipe diameter76mm,89mmWalking speed2.5km/hClimbing angles30°Rig lifting force6TSwing speed40-65rpmSwing torque2200-3000N.mHydraulic Fy130 Water Well Drilling Rig with 32HP Diesel Motor with 2m Drilling RogHydraulic Fy130 Water Well Drilling Rig with 32HP Diesel Motor with 2m Drilling RogHydraulic Fy130 Water Well Drilling Rig with 32HP Diesel Motor with 2m Drilling RogHydraulic Fy130 Water Well Drilling Rig with 32HP Diesel Motor with 2m Drilling RogHydraulic Fy130 Water Well Drilling Rig with 32HP Diesel Motor with 2m Drilling RogHydraulic Fy130 Water Well Drilling Rig with 32HP Diesel Motor with 2m Drilling RogHydraulic Fy130 Water Well Drilling Rig with 32HP Diesel Motor with 2m Drilling RogHydraulic Fy130 Water Well Drilling Rig with 32HP Diesel Motor with 2m Drilling RogHydraulic Fy130 Water Well Drilling Rig with 32HP Diesel Motor with 2m Drilling Rog
