600 Meters Truck Mounted Water Well Drilling Rig Drilling Rig for Water Well DTH Drilling Machine
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Support
- Warranty：18 Month
- Certification：CE, ISO 9001:2000
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：150-200mm
Base Info
- Drill Hole Depth：>200m
- Bit Type：DTH Bit
- Drilling Way：Impactor
- Type：Crawler
- Overall Weight：4.2 T
- Dimension：3800*1700*2350mm
- Drilling Diameter：220m
- One-Time Advancece Length of The Drill：3000mm
- Traveling Speed：2.5 Km,H
- Climbing Ability：25 Degree
- Main Machine Power：Yunnei 60kw
- Rotary Torque：4200-5600 Nm
- Rotary Speed：48 - 70 Rpm
- Air Consumption：15 - 27 M³,Min
- Working Air Pressure：1.7 - 2.5 MPa
- Transport Package：Loading Within 20FT Container
- Specification：3400*1500*2400 mm
- Trademark：HW
- Origin：China
- HS Code：8430419000
- Production Capacity：8000 Set ,Year
Description
Model
HQZ-220L
Overall weight (T )
4.2
Dimension (mm )
3800*1700*2350
Drilling diameter (mm )
130-294
Drilling depth (m)
220
One-time advance length of the drill(mm)
3000
Traveling speed (km/h )
2.5
Climbing ability (max )
25°
Minimum Ground Clearance (mm)
250
Working Air Pressure (mpa )
1.7 - 2.5
Air consumption(m³/min)
15 - 27
Main machine power (kw)
Yunnei 60Kw
Rotary Speed (rpm)
48 - 70
Rotary torque (Nm)
4200-5600
HQZ-220L drilling rig detail information
The drilling rig is multi-functional, with different configurations suitable for different geology.All our water drilling rig accept customization, any good idea there please contact us, our engineers will help you get what you want, we can also put the rig on a truck mounted chassis.

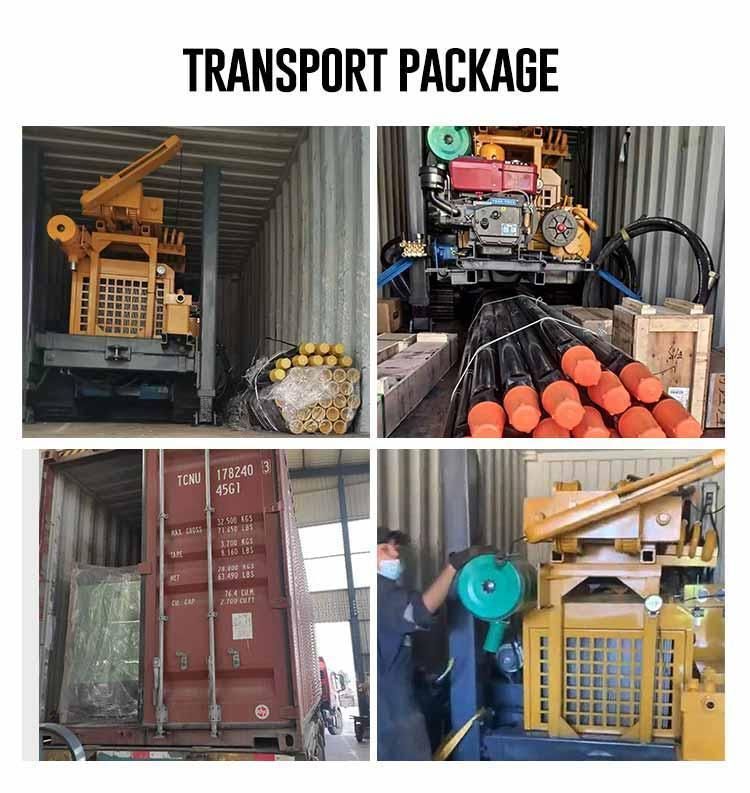

Drill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;Whole set with air compressor needs a 40GP;
Our factory is specialized in manufacture drilling rig , we have many models , if you have any questions, pls contact with us ,Contact person : Sally
