Cheap Price Crawler Mounted DTH Drilling Rig 300m Borehole Water Well Drilling Rig
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Yes
- Warranty：Yes
- Certification：ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：Diesel Engine
- Drill Hole Diameter：90-300mm
Base Info
- Drill Hole Depth：260m
- Bit Type：Diamond Bit
- Drilling Way：Impactor
- Type：Crawler
- Name：Crawler Pneumatic Rock Drilling Machine
- Drill Diameter：90-300mm
- Drill Depth：260m
- Geology：Rock
- Once Promotion Distance：2000mm
- Drill Pipe：Dia.76mm Dia.89 Dia.102
- Drill Pipe Length：3m
- Impact Frequency：0-900r,Min
- Weight：6400kg
- Air Consumption：16---25m3,Min
- Transport Package：Container
- Specification：4400*2100*2300mm
- Trademark：Hengwang
- Origin：Shandong, China
- HS Code：8430691900
- Production Capacity：500 Sets Per Month
Description
Model
HQZ-260L
Total Weight(T)
6.4
Dimensions(mm)
4100*1900*2600
Drilling Diameter(mm)
140-300
Drilling Depth(m)
260
One-time Advance Length of the Drill(mm)
3000
Walking Speed(Km/h)
2.5
Climbing Ability(max)
30
Min. Ground Clearance(mm)
250
Working Air pressure(Mpa)
1.7-3.0
Air Consumption(m³/min)
17-35
Main Power(kw)
73/Yuchai
Rotation(rpm)
40-70
Rotary Torque(Nm)
7000-9000

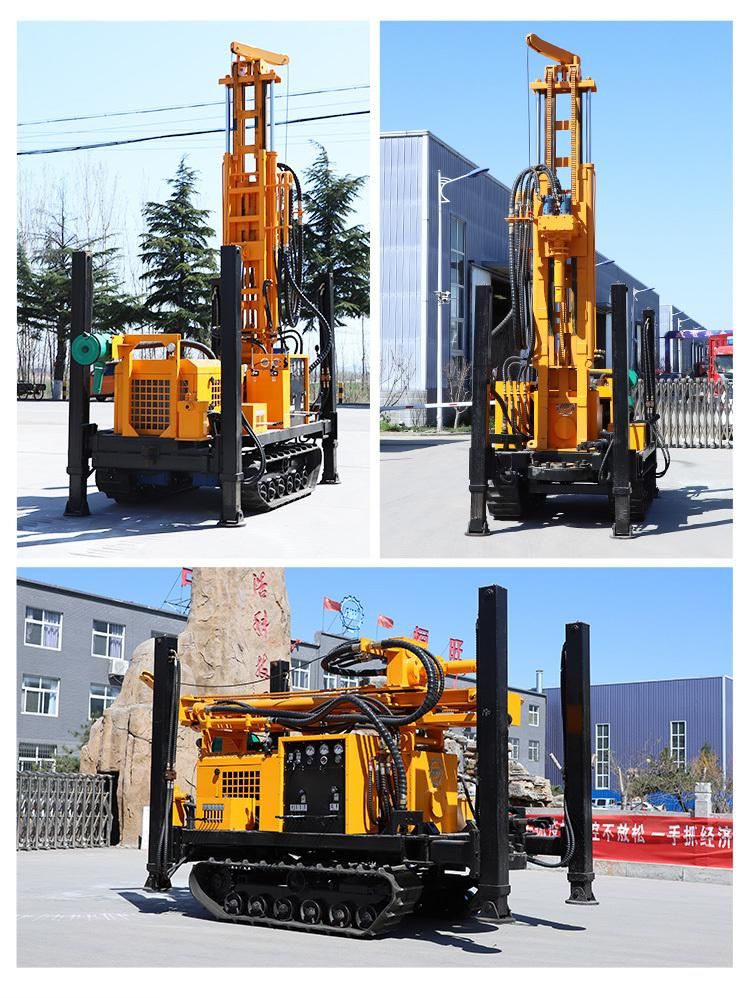

Detail Photos

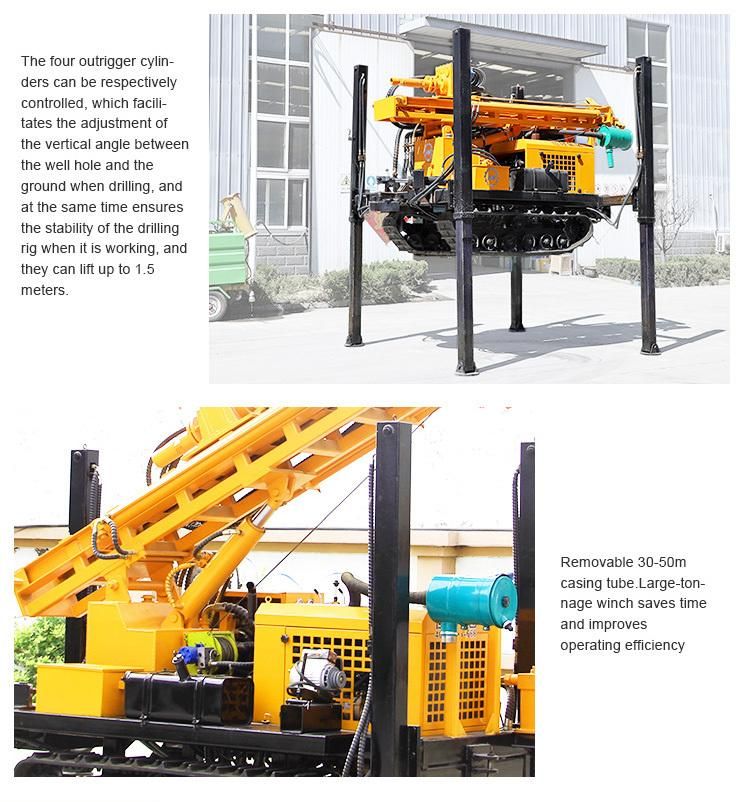

1.Pneumatic dth drilling rig mainly drilling rock use together with air compressor .
2.It have rubber and steel crawler ,mast can be customized 6m.
3.Drilling speed can be 30m per hours .
4.Use import hydraulic pump and valve .
Application&Feedback

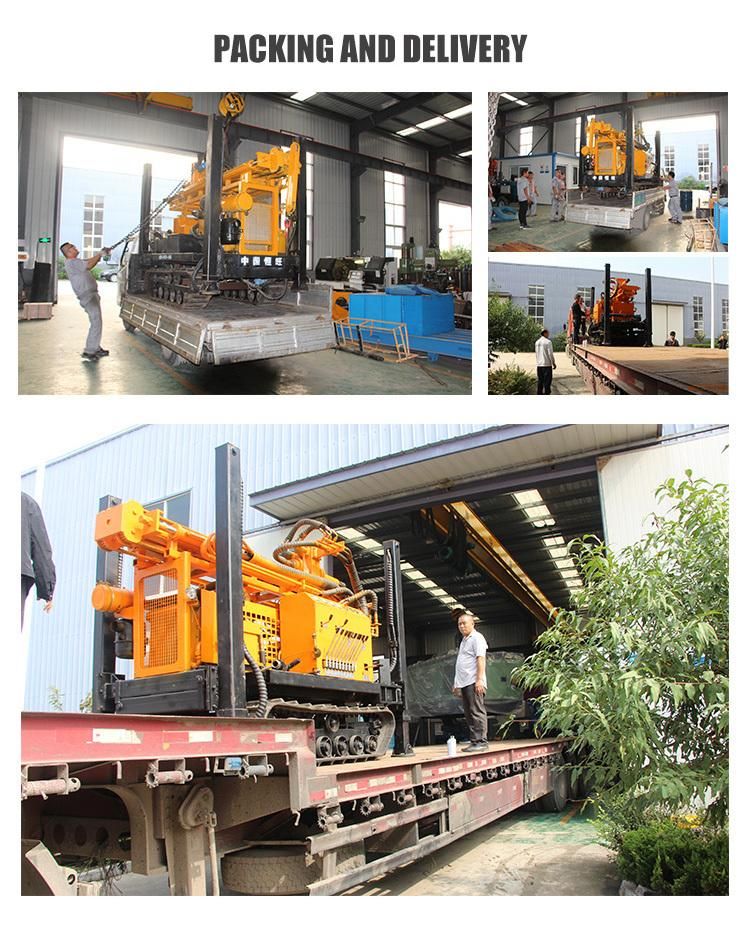

Pneumatic dth drilling rig delivery
Delivery
Pneumatic dth drilling rig delivery
