Best Seller Gl-I Trailer Mounted Drilling Rig

Glorytek Industry (Beijing) Co., Ltd.
  • Certification：CE
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：150-200m
  • Bit Type：Drag Bit

Base Info

  • Model NO.：GL-I
  • Drilling Way：Compound
  • Type：Rotary Drilling Rig
  • Item：Gl-I Trailer Mounted Drill
  • Hole Diameter (mm)：90--1000
  • Hole Depth (M)：120
  • Run of Rod (M)：3
  • Drill Rod Diameter (mm)：60 73 89 95 133
  • Drill Head Inside Diameter (mm)：35 60 80
  • Rig Mass (Kg)：2500
  • Drilling Technology：Normaland Reverse Circulation for Both Mud and Air
  • Down-The-Hole Hammers：Middle-High-Pressure Air
  • Drill Head Lifting Speed (M/S)：0.25 0.15
  • Usage：Water Well
  • Power Type：Diesel
  • Transport Package：,
  • Specification：,
  • Trademark：GLORYTEK
  • Origin：Beijing, China

Description

Basic Info.

Model NO. GL-I Drilling Way Compound Type Rotary Drilling Rig Item Gl-I Trailer Mounted Drill Hole Diameter (mm) 90--1000 Hole Depth (M) 120 Run of Rod (M) 3 Drill Rod Diameter (mm) 60738995133 Drill Head Inside Diameter (mm) 356080 Rig Mass (Kg) 2500 Drilling Technology Normaland Reverse Circulation for Both Mud and Air Down-The-Hole Hammers Middle-High-Pressure Air Drill Head Lifting Speed (M/S) 0.25 0.15 Usage Water Well Power Type Diesel Transport Package / Specification / Trademark GLORYTEK Origin Beijing, China

Product Description

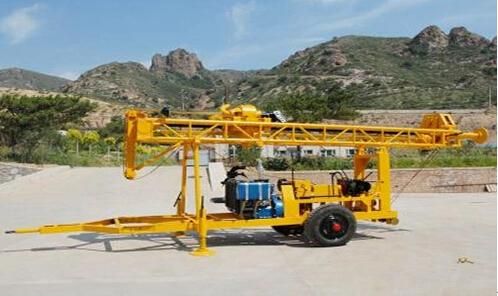

GL-ITrailer Mounted Drilling Rig



Main Application

Drilling wells for urban and rural life

Drilling wells for agricultural irrigation and industries

Drilling for geotechnical survey

Drilling construction engineering holes

Drilling geothermal pump wells
Best Seller Gl-I Trailer Mounted Drilling Rig

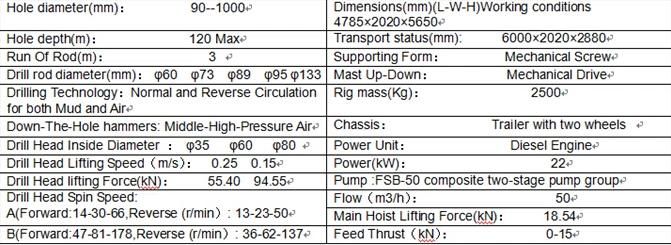

Main technical parameters:
Best Seller Gl-I Trailer Mounted Drilling Rig

Notes: Drill head spin speed can be selected, A is normal.
