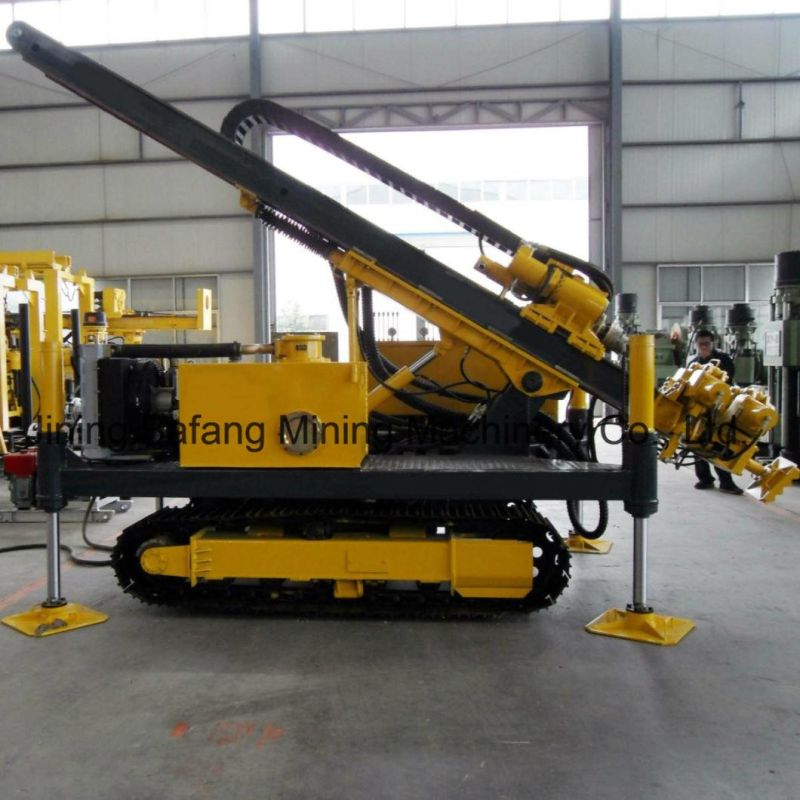

Multi-Function Mdl-150 Crawler Anchor Drilling Rig
Jining Bafang Mining Machinery Group Co., Ltd.- Certification：CE, ISO 9001:2000
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：150-250mm
- Drill Hole Depth：130-200m
- Bit Type：Diamond Bit
Base Info
- Model NO.：MDL-150
- Drilling Way：Rotary
- Specification：5400*2100*2000mm
- Trademark：BAFANG
- Origin：China
- Production Capacity：10pieces,Month
Description
Drilling diameter
(mm)
150-250
Rotary spray pile diameter
(mm)
Drilling depth
(m)
130-200
Drill rod caliber/Tube diameter
(mm)
73, 89, 102, 114
Drill pipe inclination angle
(°)
0-90
Gyrator parameter
Rated output speed
(r/min)
10, 20, 30, 35, 40, 60, 65, 70, 85, 130, 170
Rated output torque
(N.m)
7500
Route
(mm)
3400
The route of shaft shackle slipping
(mm)
900
Lifting power
(kN)
70
Lifting speed
(m/min)
0-5(adjustable), 7, 23, 30
Pressure
(kN)
36
Pressure speed
(m/min)
0-10(adjustable), 14, 46, 59
Parameter of whole machine
Input power(electric motor)
(kW)
55+18.5
Overall dimension of main engine
Transport state(length*width*height)
(mm)
5400*2100*2000
Construction state(length*width*height)
(mm)
Weight of main engine
(kg)
6000
Walking parameter
Walking pattern
Crawler walking
Climbing angle
(°)
25
Crawler ground bearing
(kPa)
37.8
Traveling speed
(km/h)
0.4
Turning parameter
Turning way
Whole manual rotation
Turing structure
Pivotal bearing
Location mode
Locating pin
Auxiliary parts situation
Holder shackle device
Standard configuration
Crawler chassis
Standard configuration
