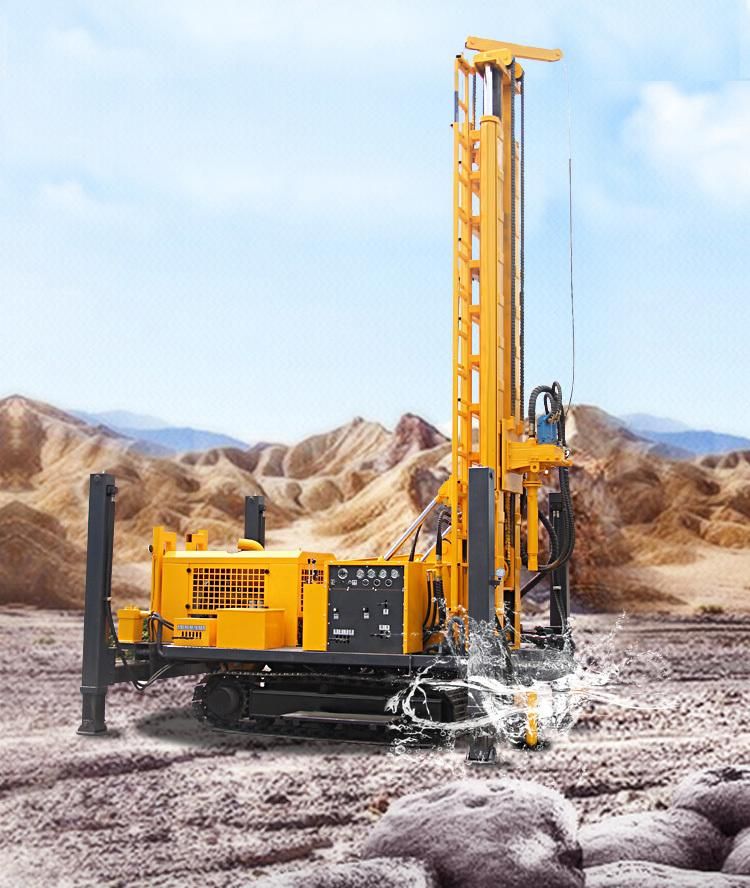

Crawler Mounted Pneumatic Blasthole Drilling Rig DTH Stone Drilling Machine

Ji Ning Hengwang Mining Machinery Co., Ltd.

Certification：ISO 9001:2000
Condition：New
Drill Hole Diameter：>300mm
Drill Hole Depth：>150m
Bit Type：Diamond Bit
Drilling Way：Rotary

Base Info

Model NO.：HW400
Type：Crawler
Product Name：Pneumatic Drilling Rig
Drilling Diameter：130-219mm
Drilling Depth：150m
Traveling Speed：2.5km,H
Air Consumption：15 - 27
Overall Weight：3.5t
Dimension：3400*1500*2400mm
Transport Package：Standard Package
Specification：400m
Trademark：Hengwang
Origin：Shandong
HS Code：8430412900
Production Capacity：10000pieces,Year

Description

Model HWZ150LHWZ180LHWZ260LHWZ300LHWZ400LHWZ500LOverall weight (T)3.54.26.488.79.5Dimension (mm )3400*1500*24003800*1700*23504100*1900*26005500*1950*27805300*2050*27005350*2100*2700 Drilling diameter(mm )130-219130-294140-300140-325130-400140-400Drilling depth(m)150180260300400500One-time advance length of the drill(mm)3000300030003000/60003000/60003000/6000Traveling speed(km/h )2.52.52.52.566Climbing ability(max )253030302525Minimum Ground Clearance(mm)250250250230300350 Working Air Pressure(mpa )1.45 - 2.51.7-2.51.7-3.01.7-3.31.7-3.51.7-3.5Air consumption15 - 2715-2717-352317-3517-35Main machine power(kw)42 /Yunnei60/ Yunnei85/Yuchai92/Yuchai100/6 cylinder114/6 cylinderRotary Speed (rpm) 38 - 8048 - 7040-7055-11545-7545 - 75Rotary torque(Nm )4000-50004200-56007000-90008500-100009000-100009500-10000

Crawler Mounted Pneumatic Blasthole Drilling Rig DTH Stone Drilling Machine
