Air Water Drilling Rig 200m Water Well Drilling Rig Borehole Drilling Rig for Sale

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Support
  • Warranty：1 Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：200-250mm

Base Info

  • Model NO.：HQZ220L
  • Drill Hole Depth：>200m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Type：Crawler
  • Name：Drilling Rig
  • Color：Yellow
  • Engine：60kw
  • Transport Package：Standard Export Package
  • Specification：12 CBM
  • Trademark：HW
  • Origin：Shandong, China
  • HS Code：8430419000
  • Production Capacity：500 Sets Per Month

Description

ApplicationAir Water Drilling Rig 200m Water Well Drilling Rig Borehole Drilling Rig for SaleAir Water Drilling Rig 200m Water Well Drilling Rig Borehole Drilling Rig for Sale
Specification

Model

HQZ220L

Overall weight (T )

4.2

Dimension (mm )

3800*1700*2350

Drilling diameter (mm )

130-294

Drilling depth (m )

220

One-time advance length of the drill(mm)

3000

Traveling speed (km/h )

2.5

Climbing ability (max )

30

Minimum Ground Clearance (mm)

250

Working Air Pressure (mpa )

1.7-2.5

Air consumption (m³/min)

15-27

Main machine power (kw)

Yunnei 60Kw

Rotary Speed (rpm)

48 - 70

Rotary torque (Nm )

4200-5600

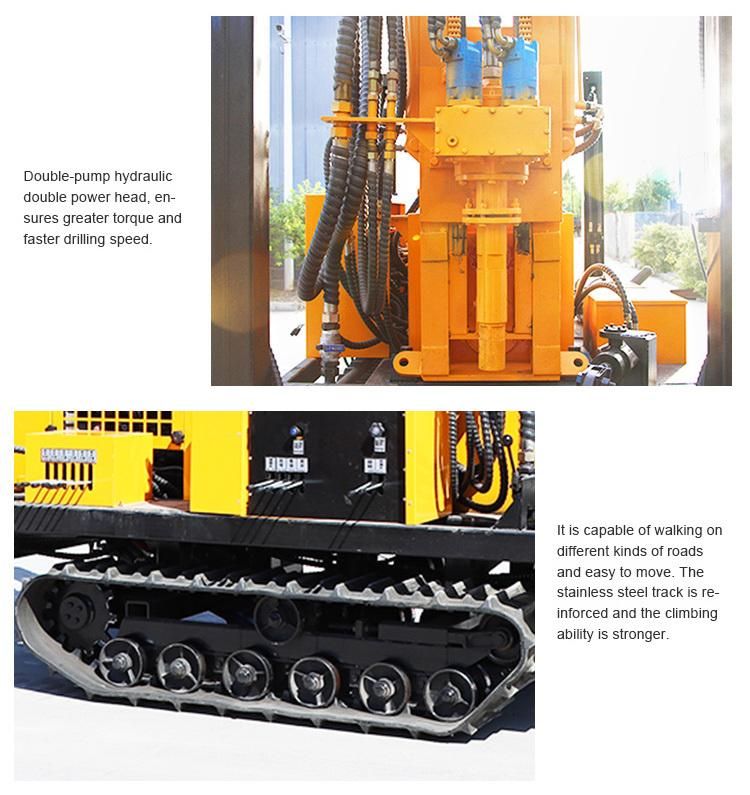

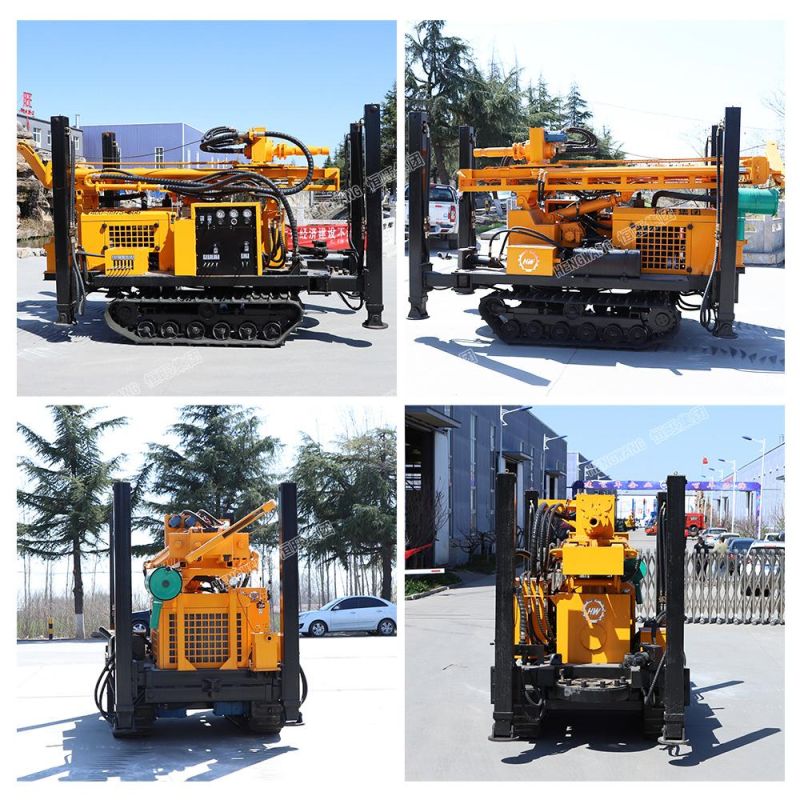

Products DetailsAir Water Drilling Rig 200m Water Well Drilling Rig Borehole Drilling Rig for SaleAir Water Drilling Rig 200m Water Well Drilling Rig Borehole Drilling Rig for Sale
Packing and deliveryAir Water Drilling Rig 200m Water Well Drilling Rig Borehole Drilling Rig for Sale



Our factory

Air Water Drilling Rig 200m Water Well Drilling Rig Borehole Drilling Rig for Sale
