Mining Y24 Handheld Pneumatic Rock Drill Machine for Drilling Vertically
SHANDONG BETTER ONWARD MACHINERY CO., LTD.- Certification：CE
- Condition：New
- Motor：Pneumatic Motor
- Drill Hole Diameter：34-42mm
- Drill Hole Depth：6m
- Bit Type：Taper Drill Bit
Base Info
- Model NO.：Y24
- Drilling Way：Rotary
- Machine Length：604mm
- Cylinder Diameter：70mm
- Piston Stroke：70mm
- Working Air Pressure：0.4-0.63MPa
- Shank Size：22* 108+,-1mm
- Delivery Time：Within 2-3days
- Transport Package：Cartons Packing
- Specification：24kg
- Trademark：better onward
- Origin：China
- HS Code：8430390000
- Production Capacity：2000sets,Month
Description
Basic Info.
Model NO. Y24 Drilling Way Rotary Machine Length 604mm Cylinder Diameter 70mm Piston Stroke 70mm Working Air Pressure 0.4-0.63MPa Shank Size 22* 108+/-1mm Delivery Time Within 2-3days Transport Package Cartons Packing Specification 24kg Trademark better onward Origin China HS Code 8430390000 Production Capacity 2000sets/MonthProduct Description
Introduction of Mining Y24 Handheld Pneumatic Rock drill machineHand-held Rock Drill is widely use for dry drilling in the medium-hard and hard rock.
Parameter of Mining Y24 Handheld Pneumatic Rock drill machine
| Model | Y24 handheld rock drill |
| Machine weight | 24kg |
| Machine length | 604mm |
| Cylinder diameter | 70mm |
| Piston stroke | 70mm |
| Working air pressure | 0.4-0.63Mpa |
| Compact frequency | ≥27Hz |
| Air consumption | ≤50L/S |
| Air pipe diameter | 19mm |
| Bore diameter | 34-42mm |
| Shank size | 22* 108+/-1mm |

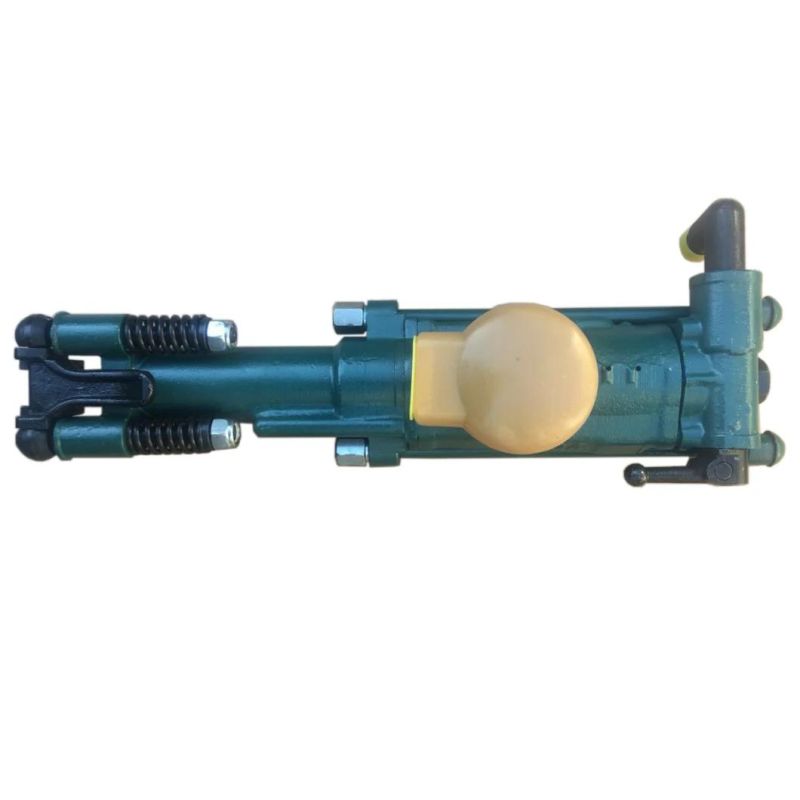

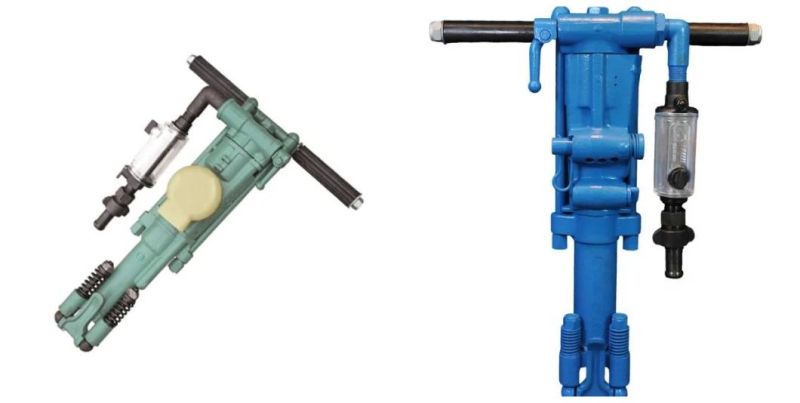

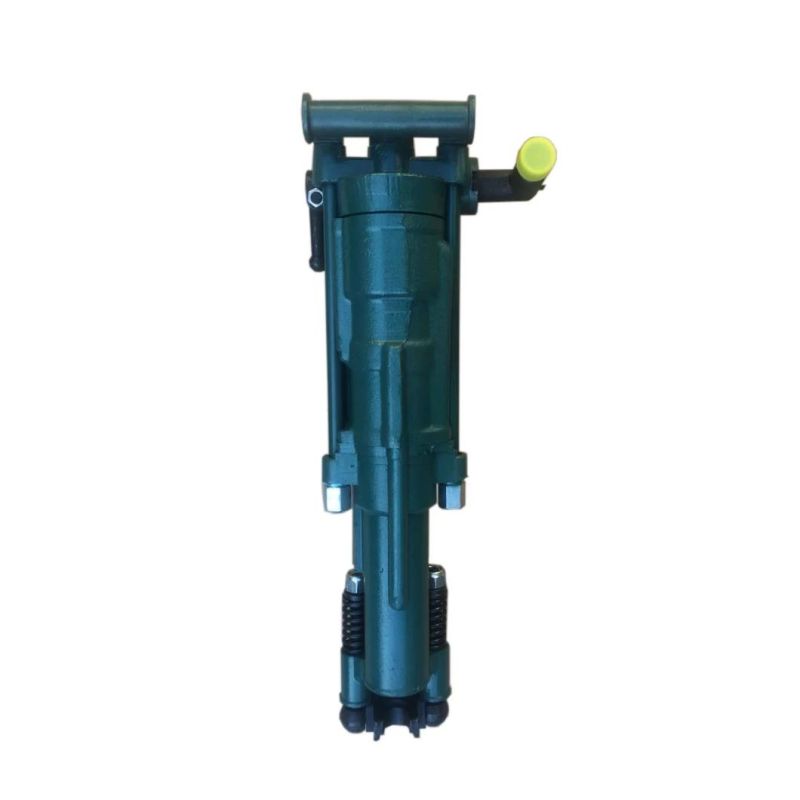

Images of Mining Y24 Handheld Pneumatic Rock drill machine
