Handheld Yt24 Air Leg Rock Drill for Drilling Holes Horizontally
SHANDONG BETTER ONWARD MACHINERY CO., LTD.- Certification：CE
- Condition：New
- Motor：Compressor
- Drill Hole Diameter：34-42mm
- Drill Hole Depth：5m
- Bit Type：Taper Drill Bit
Base Info
- Model NO.：YT24
- Drilling Way：Rotary
- State：New
- Shank Size：H22* 108+,-1mm
- Cylinder Diameter：70mm
- Air Pipe Inner Diameter：19mm
- Water Pipe Inner Diameter：13mm
- Delivery Time：Within 2-3 Days
- Transport Package：Cartons Packing
- Specification：24kg
- Trademark：better onward
- Origin：China
- HS Code：8430390000
- Production Capacity：5000sets,Month
Description
Basic Info.
Model NO. YT24 Drilling Way Rotary State New Shank Size H22* 108+/-1mm Cylinder Diameter 70mm Air Pipe Inner Diameter 19mm Water Pipe Inner Diameter 13mm Delivery Time Within 2-3 Days Transport Package Cartons Packing Specification 24kg Trademark better onward Origin China HS Code 8430390000 Production Capacity 5000sets/MonthProduct Description
Introduction of YT24 rock drillYT24 air leg rock drill with the characteristics of high efficiency and low consumption.
It is especially suitable for railway, highway, water and electricity construction.
It is also the replacement product of mine tunnel excavation and various rock drilling operations in metallurgy, coal and other mines.
YT24 Air leg rock drill is suitable for drilling horizontal and inclined holes on medium hard and hard rocks (f=8~18), and also could drill bolt holes upward, the drill hole diameter is 34-42mm, effective drill hole depth is 5m.
Parameter of YT24 rock drill
| Machine weight | 24kg |
| Machine length | 678mm |
| Cylinder diameter | 70mm |
| Piston structure stroke | 70mm |
| Working pressure | 0.40-0.63Mpa |
| Impact Frequency | ≥31Hz |
| Air comsumption | ≤66.7L/s |
| Air pipe inner diameter | 19mm |
| Water pipe inner diameter | 13mm |
| Drill hole diameter | 34-42mm |
| Max. drill hole depth | 5m |
| Shank size | H22* 108+/-1mm |

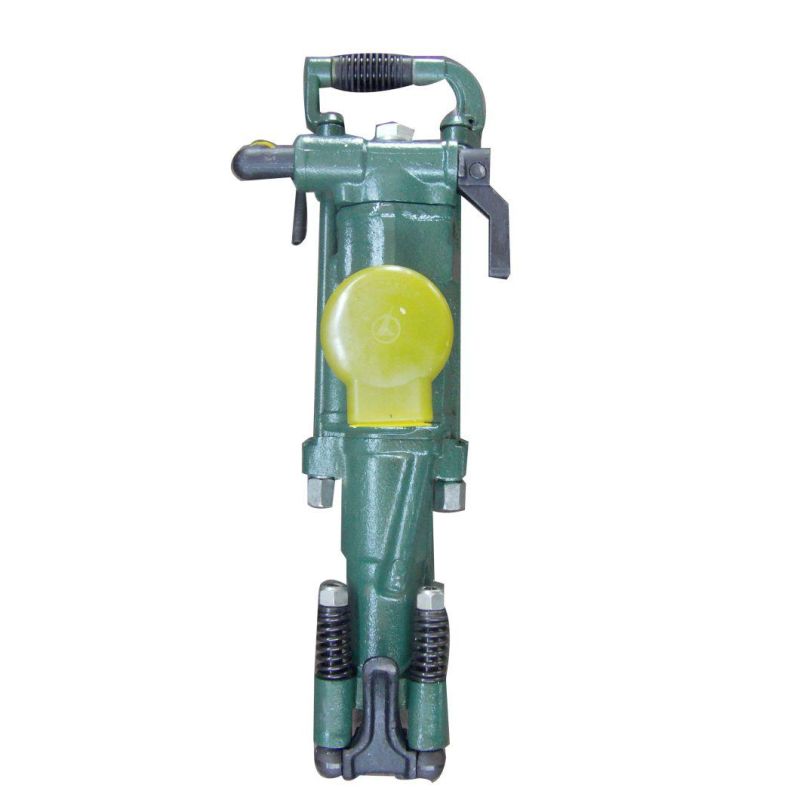

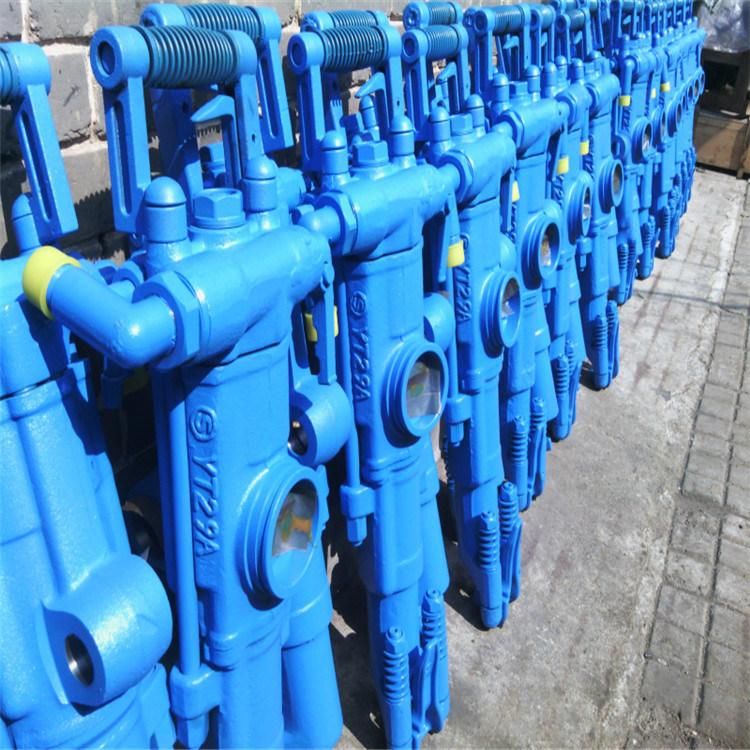

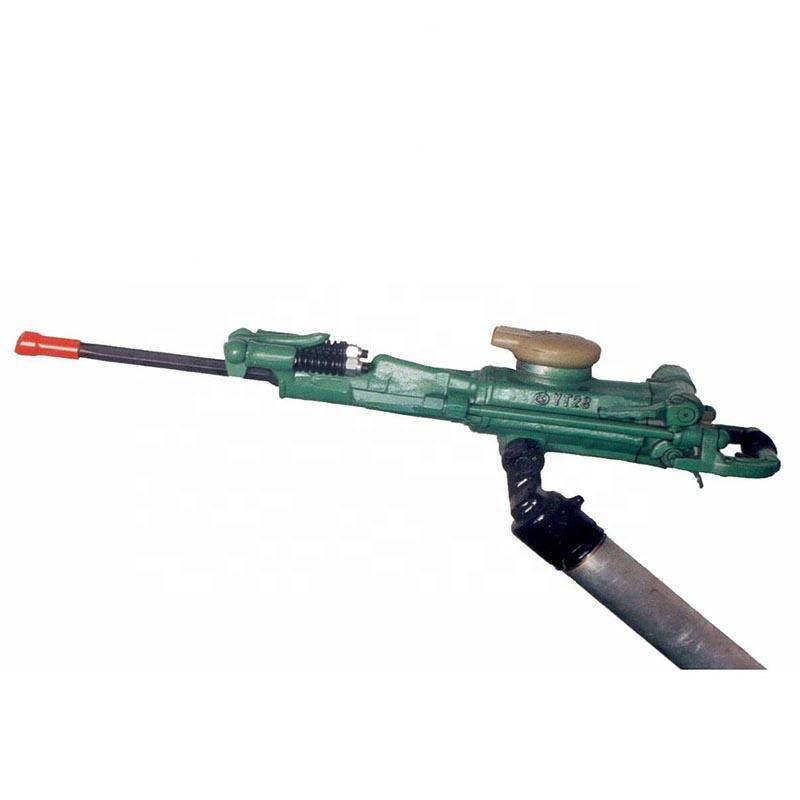

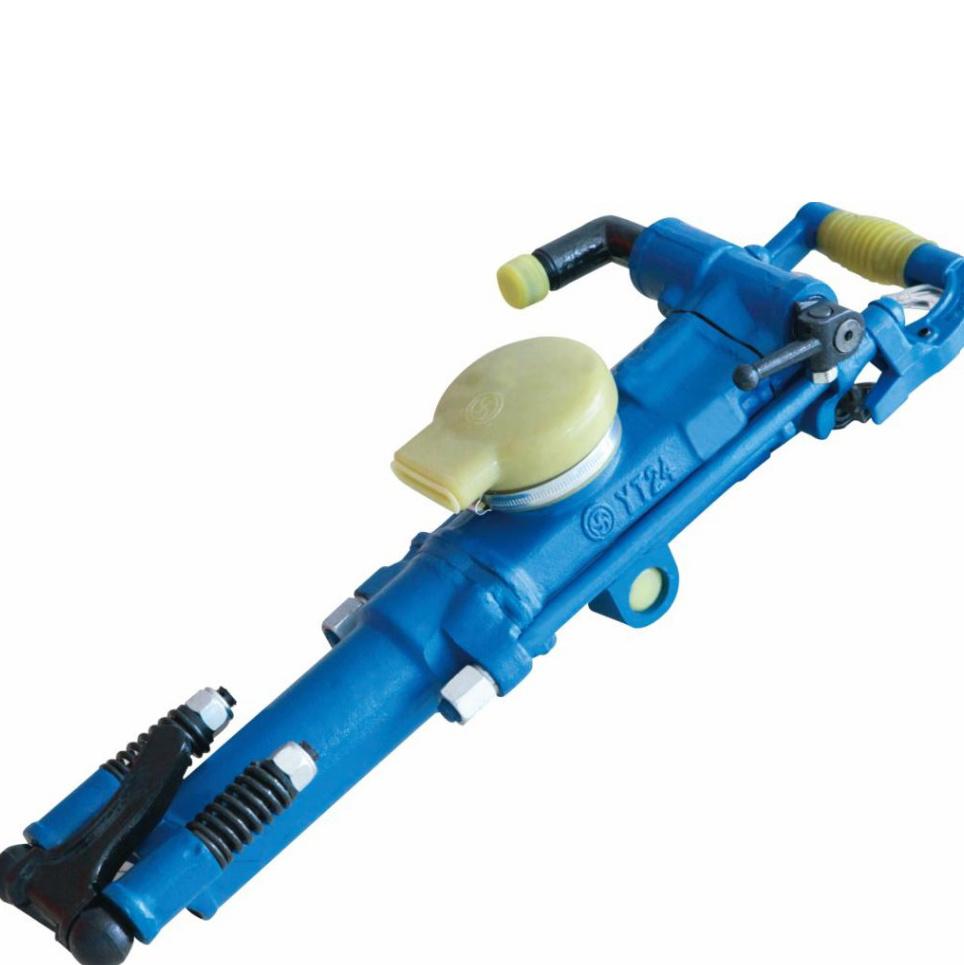

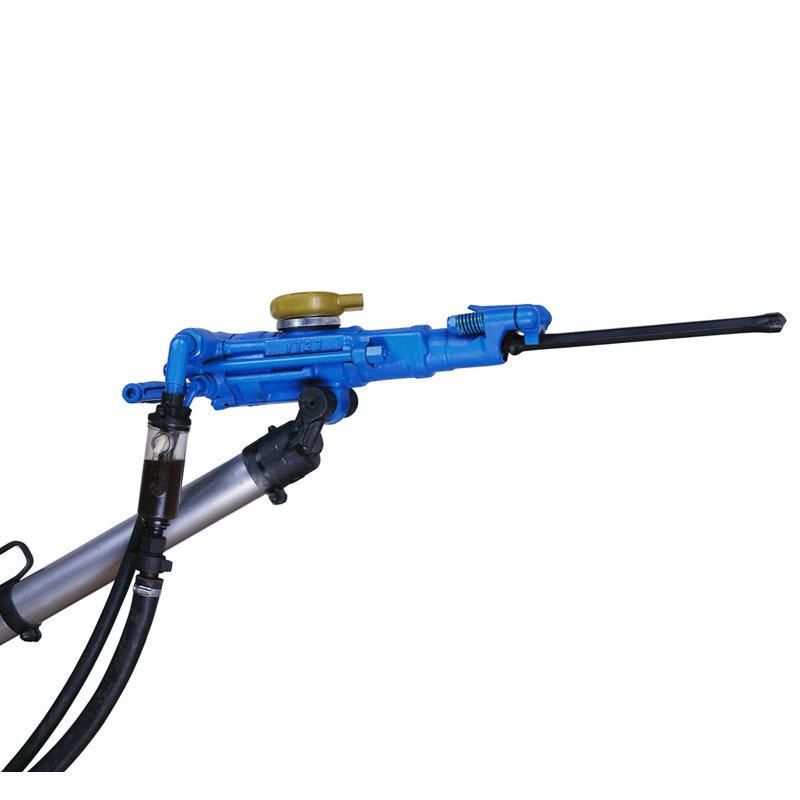

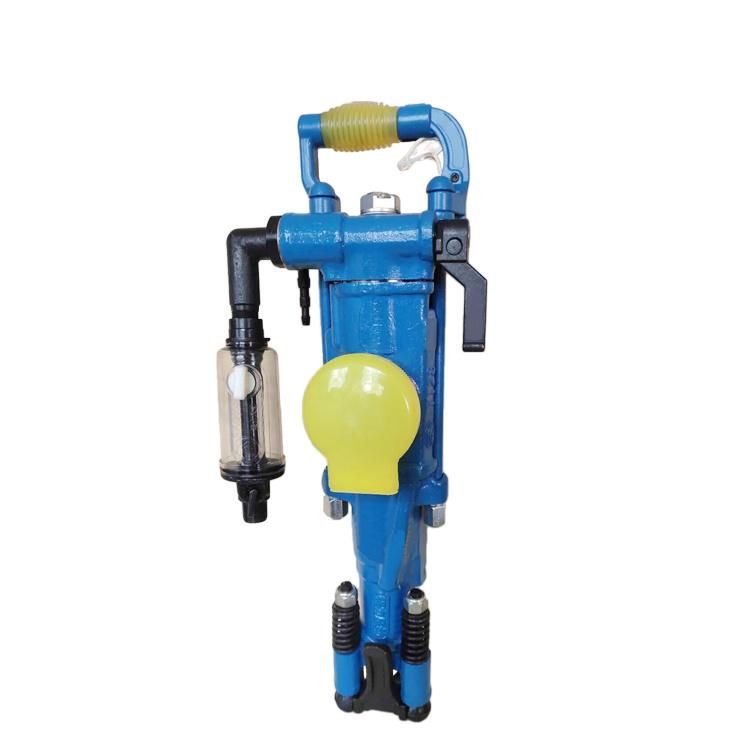

Images of YT24 rock drill
