Air and Mud Pump Drilling Rig Borehole Water Well Drilling Machine

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：100-450mm

Base Info

  • Model NO.：HQZ450L
  • Drill Hole Depth：450m
  • Bit Type：Diamond Bit
  • Drilling Way：Rotary
  • Type：Crawler
  • Model：Hqz450L
  • Drilling Diameter：130-400
  • Drilling Depth：450
  • Walking Speed：3 Km,H
  • Min.Ground Clearance：300mm
  • Working Air Pressure：1.7-3.5 MPa
  • Air Consumption：17-35 M3 ,Min

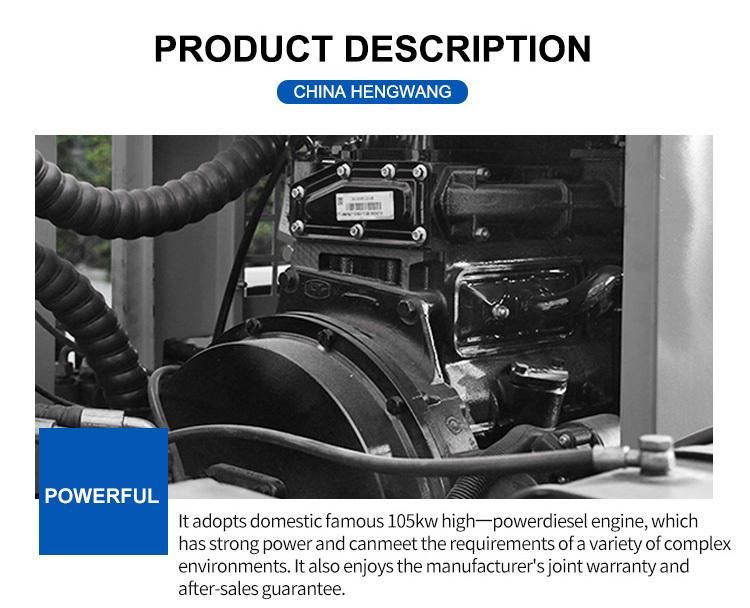

  • Engine：105kw
  • Rotation：45-75
  • Rotary Torque：9000-10000 N.M
  • Transport Package：Standard
  • Specification：5300*2050*2700
  • Trademark：Hengwang
  • Origin：China
  • Production Capacity：2000sets,Year

Description

Model

HQZ-450L

Total Weight(T )

8/10

Dimensions(mm )

5300*2050*2700

Drilling Diameter(mm)

130-400

Drilling Depth(m)

450

One-time Advance Length of the Drill(mm)

3000/6000

Walking Speed(km/h)

6

Climbing Ability(max )

25

Min.Ground Clearance(mm )

300

Working Air Pressure(Mpa )

1.7-3.5

Air Consumption(m3 /min )

17-35

Main Power(kw)

100/6 cylinder

Rotation(rpm)

45-75

Rotary Torque(N.m )

9000-10000

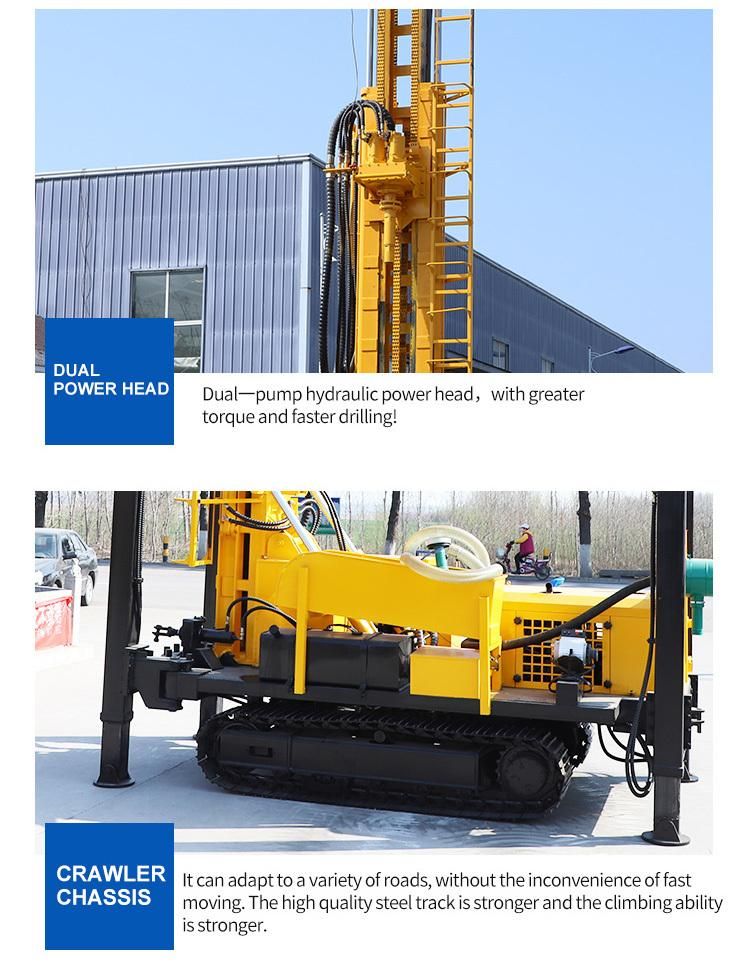

 Detail Photos
Air and Mud Pump Drilling Rig Borehole Water Well Drilling MachineAir and Mud Pump Drilling Rig Borehole Water Well Drilling Machine Product ConfigurationSuccessful ProjectPackaging&ShippingDrill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;
Whole set with air compressor needs a 40GP;

Air and Mud Pump Drilling Rig Borehole Water Well Drilling MachineCompany Profile
