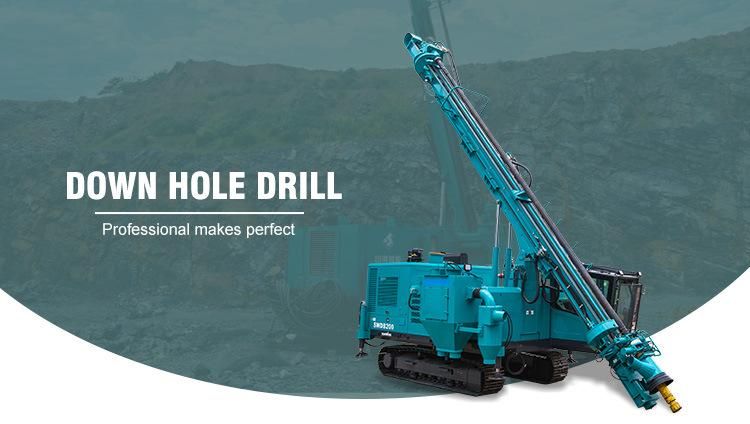

Sunward Swdb120b New Design Hydraulic Pile Rock Drill Rig for Mining

Sunward Intelligent Equipment Co., Ltd.
  • Certification：179kw,1800rpm
  • Condition：New
  • Motor：AC Motor
  • Bit Type：Drag Bit
  • Drilling Way：Rotary
  • Applicable Industries：Advertising Company, Building Material Shops

Base Info

  • Model NO.：SWDB120B
  • Weight：14.5t
  • Dimension(L*W*H)：6.65X4.1X10.8 M
  • Type：Core Drilling Rig
  • After-Sales Service Provided：Field Installation, Commissioning and Training
  • Voltage：Engineering
  • Warranty：2 Years
  • Power Type：Diesel
  • Color：Blue
  • Usage：Coal
  • Specification：6.65x4.1x10.8 m
  • Trademark：SUNWARD
  • Origin：Hunan, China

Description

Dust collection deviceDry (standard) / Wet (optional)Air compressorManufacturerGHHModelCF128Working pressure1.7MPaDisplacement16m3/minPower--EngineManufacturerCumminsModelQSL8.9-C325Power242kWFuel tank capacity520LFeedFeed beam length6920mmFeed stroke4380mmFeed extension1200mmFeed rate, max0.8m/sFeed force, max30kNForward tilting angle140°Overturning angle-20°~90°BoomFull length2800mmLifting angle50°~-30°Oscillating angle15°(L) / 45°(R)Travel capabilityTraveling speed3.2km/hTraction force, max100kNGradeability25°Track tilt angle±10°Ground clearance480mmRotaryRotary speed70rpmRotary torque2800N.mDiamensionGross weight14.5tL×W×H(Working)8.5×3.4×7.3 mL×W×H (Transportation)10.5×3.4×3.5 m
