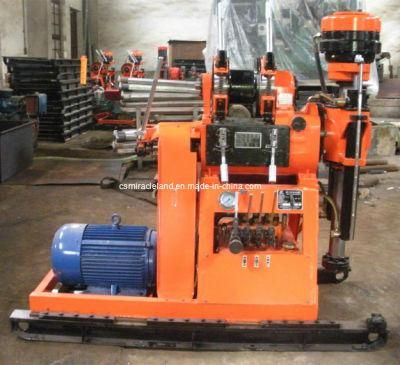

Mining Exploration Drilling Rig (HGY-1500)

Changsha Miracleland Import & Export Co., Ltd.
  • Certification：CE, ISO 9001:2008
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：76-300mm
  • Drill Hole Depth：1500m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：HGY-1500
  • Drilling Way：Rotary
  • Weight：2600-4100 Kg( Power Unit Excepted)
  • Transport Package：in Plywood Case
  • Specification：1500
  • Trademark：csmiracleland
  • Origin：Changsha, Hunan, China
  • HS Code：8430691900
  • Production Capacity：20 Sets,Month

Description

HGY-1500 Drilling RigDrilling depth( m)1500~1200Rod diameter( mm)Φ42~Φ50Spindle speed( r/min)Positive rotation rate: 54\86\145\219 \310\378\415\570\808 \1081
Reverse rotation rate: 58\152Spindle stroke(mm)600Spindle lifting power max(KN)80Spindle driving force max(KN)60Spindle output torque max(N.M)7150Spindle hole diameter( mm)Φ95Steel wire rope diameter(mm)17.5Lifting speed( m/s)0.51, 0.81, 1.37, 2.06, 2.92, 3.91Lifting capacity(single) max(KN)40Movable cylinder stroke (mm)400Gear oil pump model2CB-FA32/10-FLNominal displacement( ml/r)40Nominal pressure( MPa)14Electromotor modelY225S-4 OR Y225M-4Power(KW)37 OR 45Speed(r/min)1480Diesel engine modelR4105ZD1Power( KW) 56Diesel engine weight(kg)385Overall dimensions(mm)2460x1150x1888Weight(power unit excepted)(kg)41002600Head angle range0-90°0-360°Drill tower load(t)10 Drill tower height(m)9.5 Drill tower pedestal(m)4x4.5
