• Model NO.：HW160
• Drilling Way：Compound
• Type：Crawler
• Drilling Depth：160m
• Maximum Borehole Caliber：300mm
• Spindle Stroke：450mm
• Steel Wire Rope Diameter：13mm
• Reel Lifting Speed：1.64m,S
• Steel Wire Rope Capacity：35m
• Movable Distance：400mm
• Work Pressure：1.5MPa
• Diesel Engine：22HP

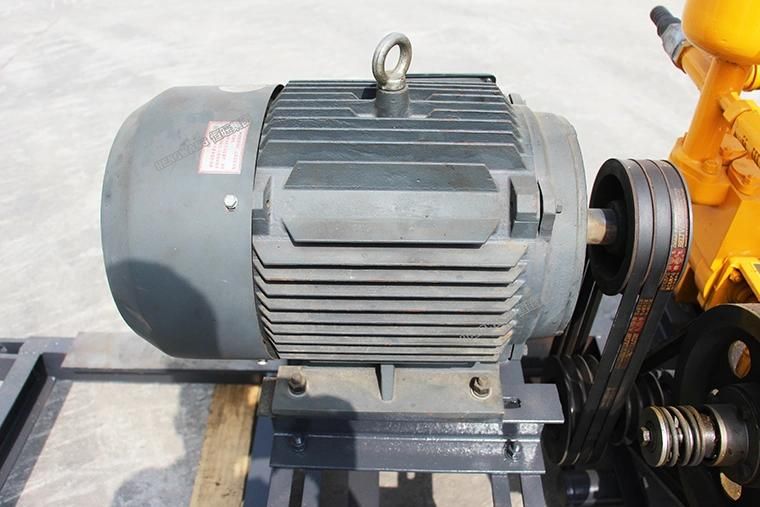

• Electric Motor：15kw
• Control System：Hydraulic
• Transport Package：Wooden Box
• Trademark：HW
• Origin：Shandong
• Production Capacity：500

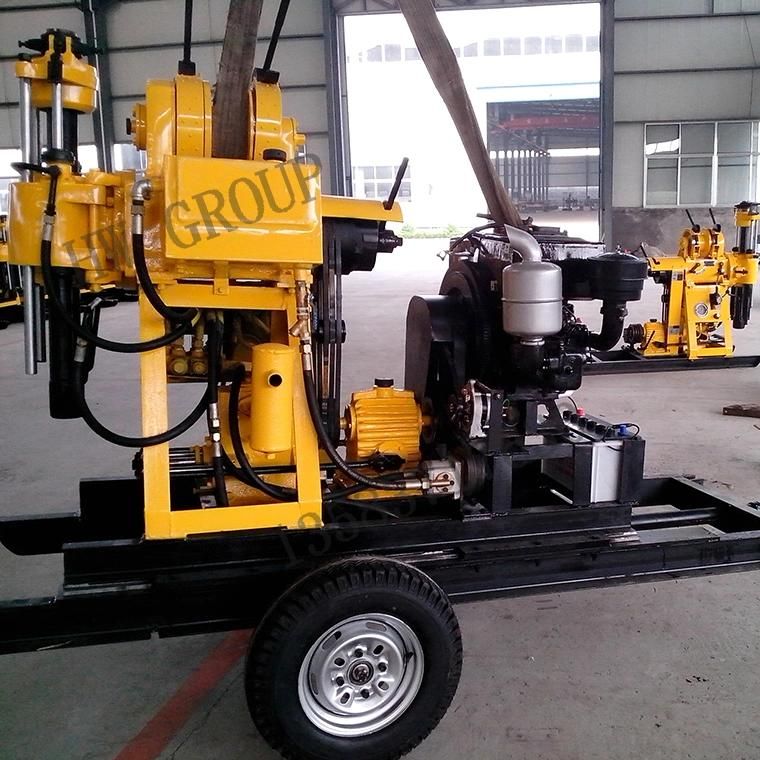

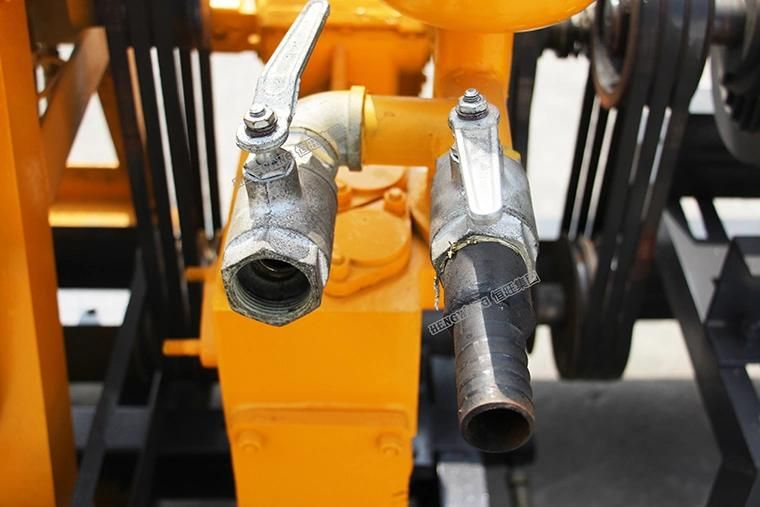

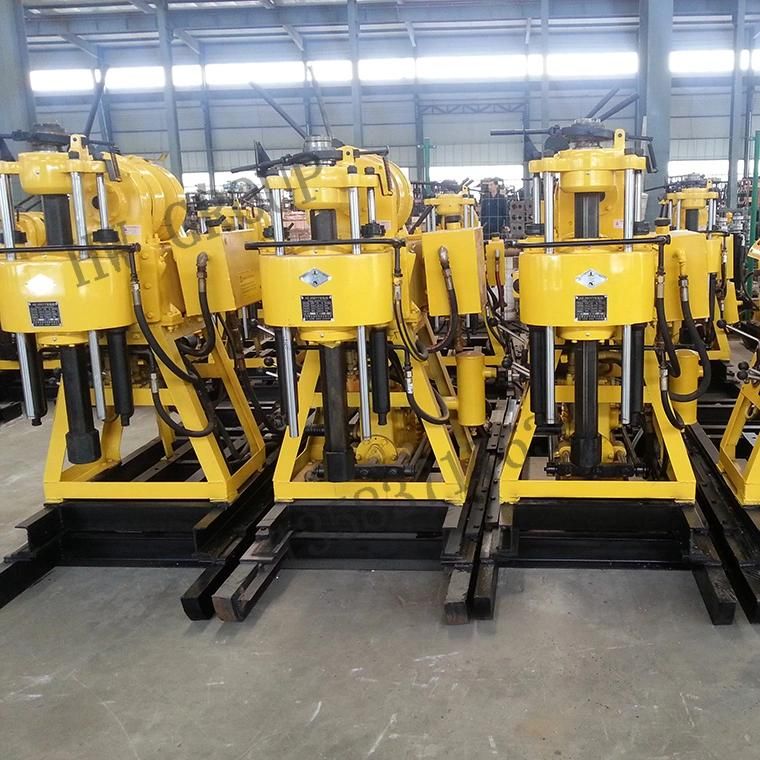

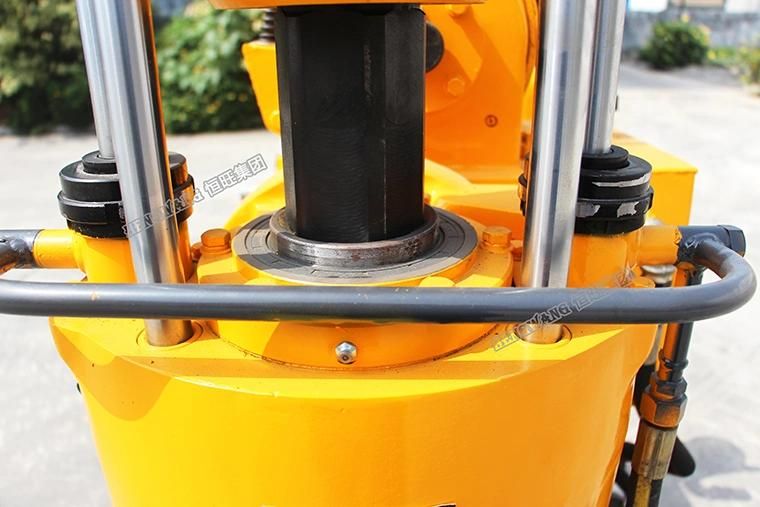

2.Vertical SpindleSpindle rotating speed64/128/287/557r/minSpindle stroke450mm3.HoistMax. single line lifting capacity2400kgReel lifting speed1.64m/sSteel wire rope diameter13mmSteel wire rope capacity35mHug floodgate diameter245mmHug floodgate belt width70mmMovable distance400mm4. Mud pumpTypeBW-160TypeHorizontal Single Cylinder with double functionMax. DischargeDiesel engine 170L/min  /Electrical Motor 140L/minMax. Pressure3MPaWork Pressure1.5MPa5. PowerDiesel engine22HPElectric Motor15KW 6. Drilling towerTypeIntegrated on drilling rigControl systemHydraulic7. Trailer chassisType4 wheelsSoil testing drilling rig equipment rotary boring hole drilling machine Pictrures:








Our company for Soil testing drilling rig equipment rotary boring hole drilling machine
