Multi-Function Borehole Drilling Machine

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • Certification：ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：115mm-245mm
  • Drill Hole Depth：150-200m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：HQZ200
  • Drilling Way：Rotary
  • Type：Four-Wheel trailer
  • Name：Wheel Type Drilling Machine
  • Drill Diameter：115-245mm
  • Drill Depth：120m
  • Geology：Rock,Sand ,Clay,Soil,etc
  • Power：37kw
  • Drill Pipe：Dia.76mm Dia.89 Dia.102
  • Drill Pipe Length：1 M 2m 3m
  • DTH Hammer：DHD360
  • Weight：1800kg
  • Size：3000*1200*2000
  • Transport Package：Container
  • Specification：3000*1200*2000
  • Trademark：Hengwang
  • Origin：Shandong, China
  • HS Code：8430691900
  • Production Capacity：500 Sets Per Month

Description

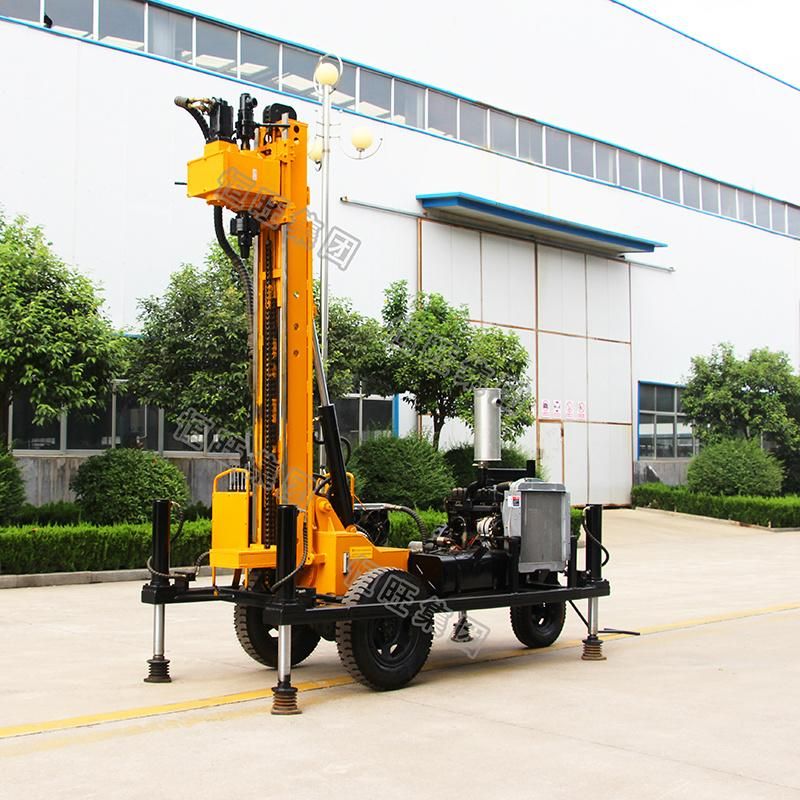

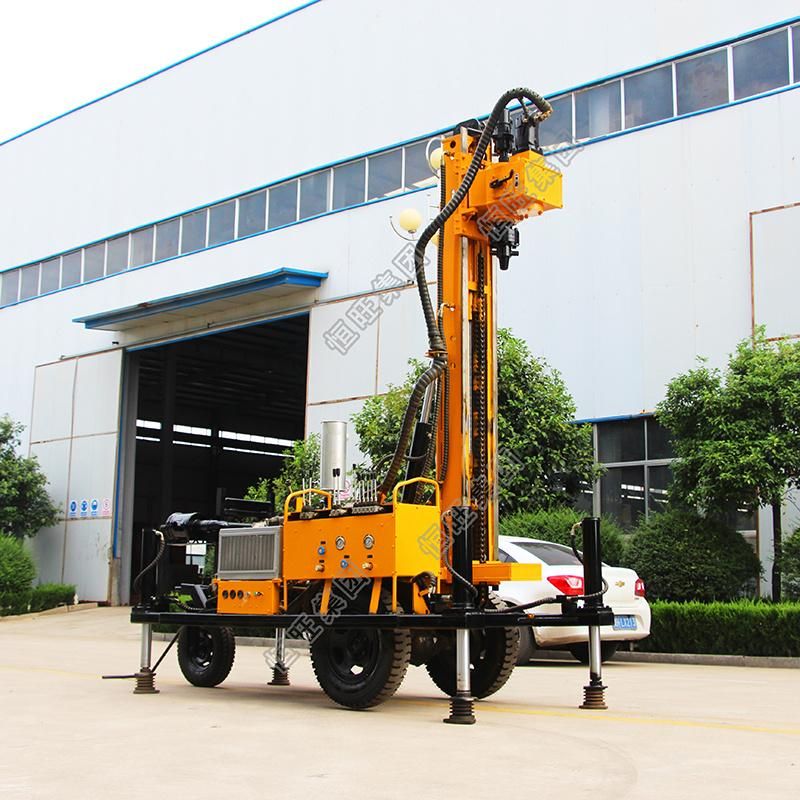

 Model  HQY100HQY200 Weight (kg)  18006000Dimension (mm) 3000*1200*2000  5300*2100*2500Walking Speed (km/h)  0-2  0-2 Engine Model  YN27  4102GBZEngine parameter(kW/ rpm)  37/2400 76/2400distance from ground (mm) 250250DTH hammerDHD360  DHD360  Climbing angle 20  20  Drilling depth (m) 120 200Air pressure (MPa)1.05-2. 46  1.05-2. 46Air consumption (m3/min)  16 -30 16 -30  Drill pipe (mm)  φ76/φ89/φ102φ76/φ89/φ102pipe length (mm)  15003000Drill bit (mm) φ115 -φ254 φ115 -φ254 feeding force (kN)  27  35 lifting force (kN)  40  75Rotary speed (rpm) slow speed 2222                                fast speed177177 Torque (N*m)  35005500Full Hydraulic Water Well Drilling Rig Photos

Multi-Function Borehole Drilling Machine


Multi-Function Borehole Drilling Machine
Multi-Function Borehole Drilling Machine
