• Model NO.：DFD-110Z
• Drilling Way：Rotary
• Type：Rotary Drilling Rig
• Power：28,33,46kw
• Drilling Hole Diameter：89~130mm
• Stratum：Soil, Gravel, Weathered Stone, Concrete
• Dimension：4400*1950*2150mm
• Weight：3100kgs
• Walking Speed：0~2.5 Km,H
• Usage：Ore, Coal, Farm Irrigation, Pile Foundation
• Power Type：Diesel
• Transport Package：as Requirement
• Specification：30m
• Trademark：DEFY
• Origin：China Mainland
• Production Capacity：50sets,Month

Basic Info.

Model NO. DFD-110Z Drilling Way Rotary Type Rotary Drilling Rig Power 28/33/46kw Drilling Hole Diameter 89~130mm Stratum Soil, Gravel, Weathered Stone, Concrete Dimension 4400*1950*2150mm Weight 3100kgs Walking Speed 0~2.5 Km/H Usage Ore, Coal, Farm Irrigation, Pile Foundation Power Type Diesel Transport Package as Requirement Specification 30m Trademark DEFY Origin China Mainland Production Capacity 50sets/Month

Product Description

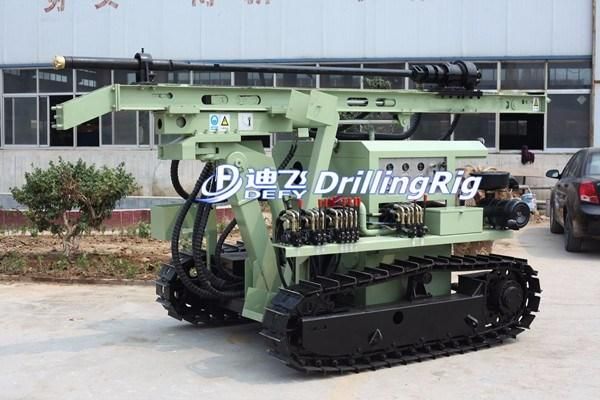

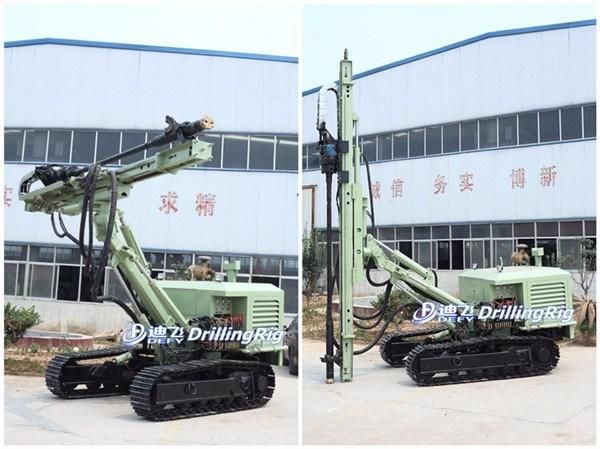

DFD-110Z 30m hard rock drill rig, deep earth drilling rig


Product Application of DFD-110z earth drilling rig
DFD-110Z  is widely used for open air mine exploit, irrigation, power station, road and other blast hole.



Brief details of DFD-110z earth drilling rig

1. DTH hammer drilling technology, depth: level 60m down 30m, hole diameter 89~130mm;
2. steel crawler mounted, suitable for any place, especially rock aera;
3. low air consumption, large rotary torque, compact structure, move around flexibly.
4. drill rod rack adopts folding type, avoid repeated disassembly during transit;



Specification of DFD-110z earth drilling rig


Weight(Kg)	3100
Dimension(mm)	4400*1950*2150
Drill caliber(mm)	89~130
Drill depth(m)	30
Walk speed(Km/h)	2
Climb capacity(°)	30
Ground clearance(mm)	300
Working pressure(MPa)	0.7~1.6
Gas consumption(m³/min)	7~15
Once promote length(mm)	2000
Skid compensate length(mm)	860
Skid up and down angle(°)	Total 100
Skid left and right angle(°)	Left20 right3
Power(Kw)	28/33/46
Hardness application(f)	6~20

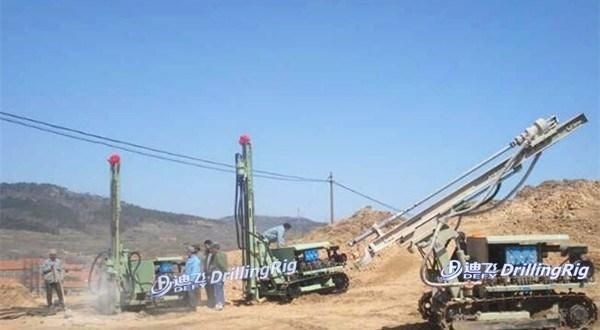

Working site of DFD-110z earth drilling rig



Customer visit


Defy Service:
1.Professional technical support pre-sale, sale and after-sale .
2.Your problems can get feedback in 8 hours and solved in 24 hours.
3.Machine can be customized as per your requirement.
4.One year quality warranty.
5.Training: operation manual and DVD operation video, overseas installation is also available.
6.Spare parts are available in our factory at cost price for former customers.
