• Model NO.：WD-50
• Drill Hole Depth：50-100m
• Bit Type：Diamond Bit
• Drilling Way：Rotary
• Lifting Force：300kg
• Feeding Force：200kg
• Drilling Angle：90 Degrees
• Drill Pipe Diameter：42mm

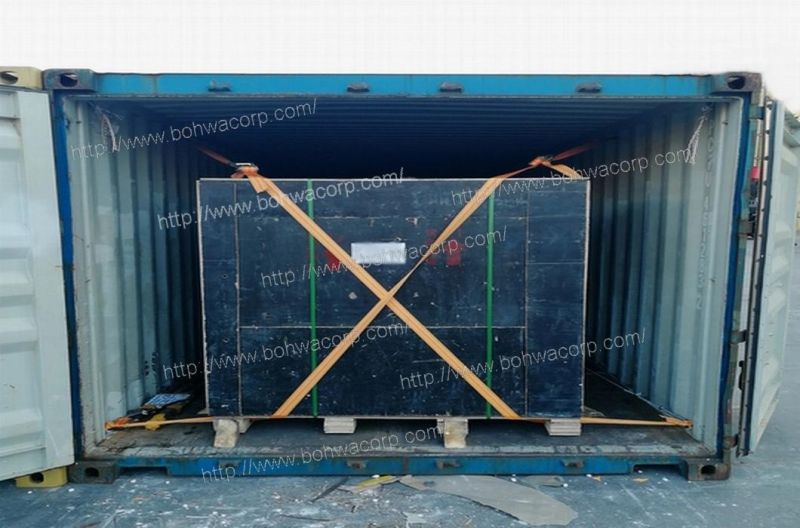

• Transport Package：Wooden Case
• Specification：1400mmx600mmx1600mm
• Trademark：Bohwa
• Origin：China

Basic Info.

Model NO. WD-50 Drill Hole Depth 50-100m Bit Type Diamond Bit Drilling Way Rotary Lifting Force 300kg Feeding Force 200kg Drilling Angle 90 Degrees Drill Pipe Diameter 42mm Transport Package Wooden Case Specification 1400mmx600mmx1600mm Trademark Bohwa Origin China

Product Description

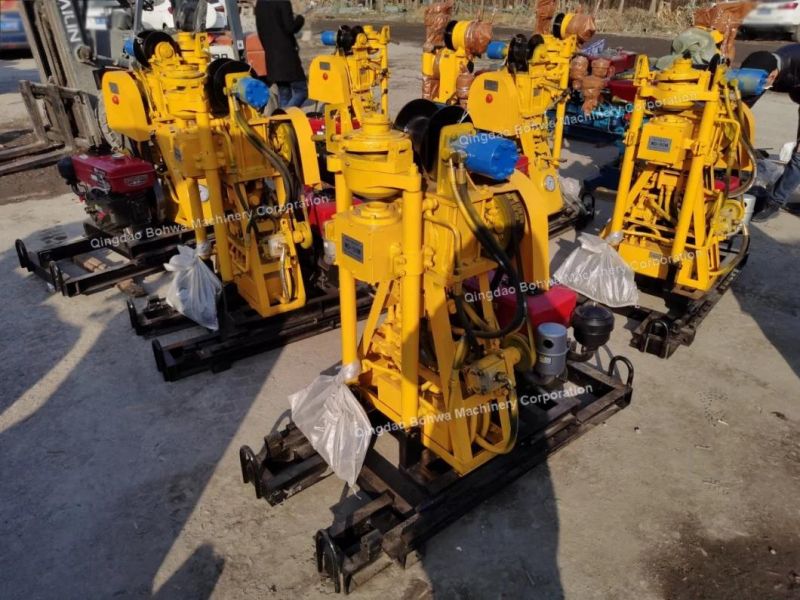

Portable Spt Test Drilling Machine and Civil Engineering Drill Rig
I. Product Description

WD-50 is a simple rig  suitable for borehole drilling in geo-construction and geo-technical exploration drilling in projects like civil building, construction of railway, hydropower, highway, bridge and dam etc. Typically, it is mainly used for:

• Soil sampling with auger drilling.
• Anchor drilling
• Micro piling.
• Geothermal drilling.
• Core drilling with conventional coring tools.
• Water well drilling by carbide and rotary drilling.

II. Main Features

Compact in size and light in weight, easy to be carried and transported on difficult working sites.  The drilling rig is modular designed. The drilling rig can be disassembled into several major parts  of each less than 70kg.

This is especially usefully for carrying the drilling rig in the places (like mountains or jungles) that is difficult to access.


III. Technical Specification

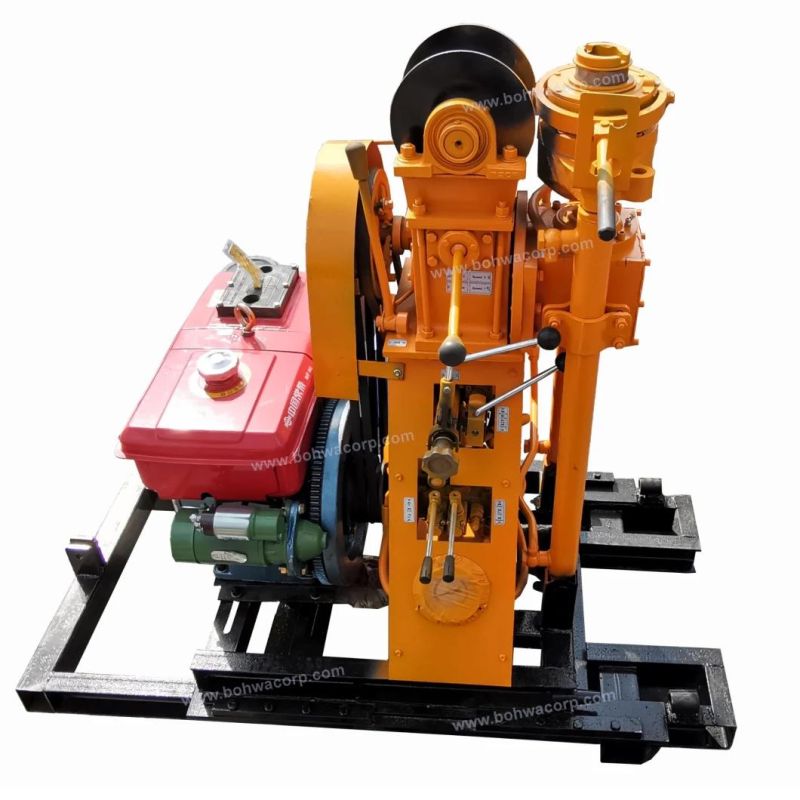

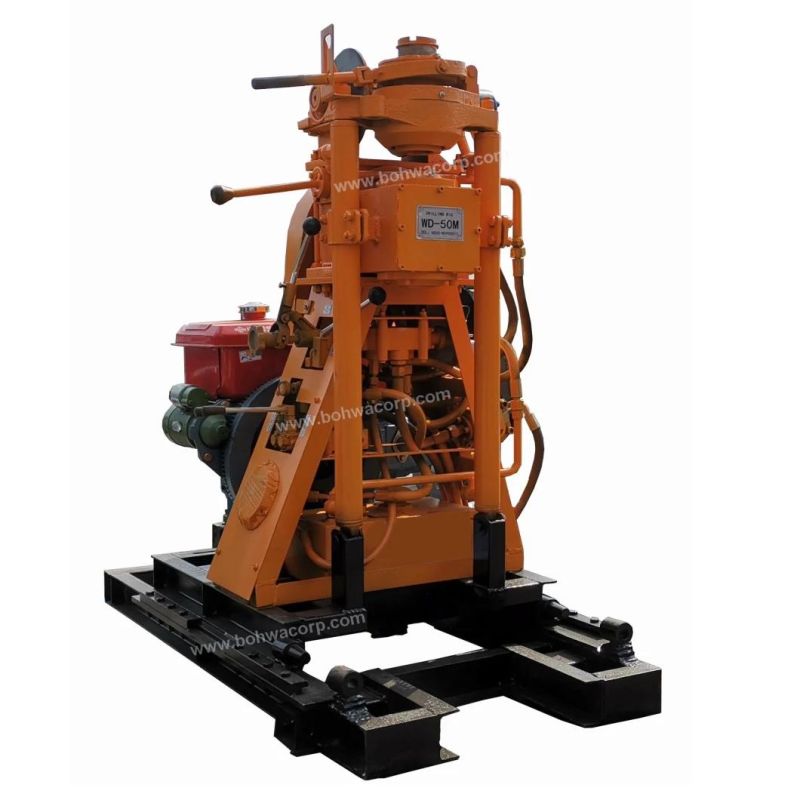

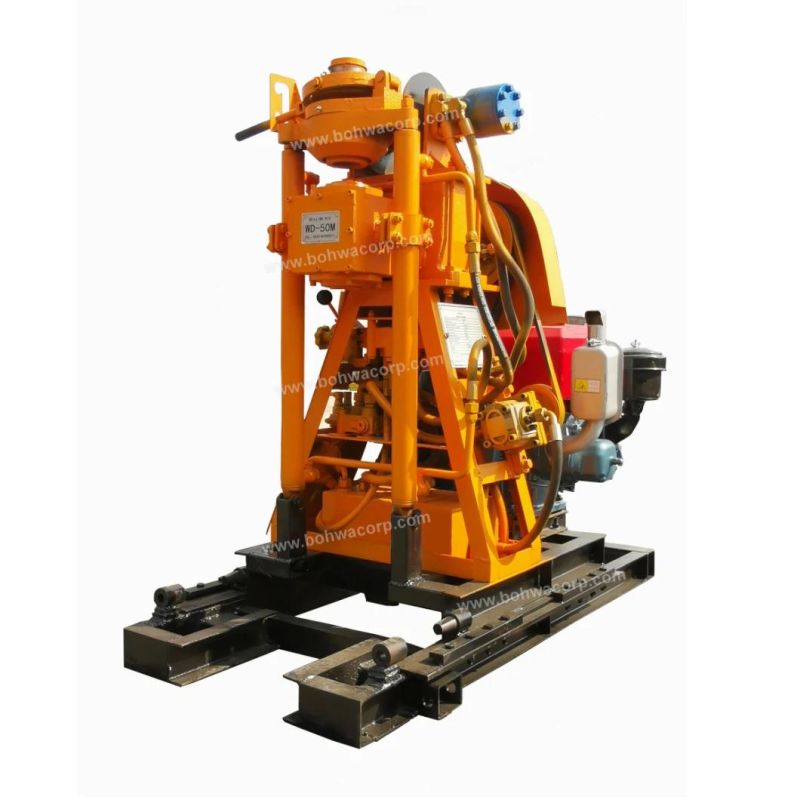

Model No.	WD50	WD50M (With Drill Mast)

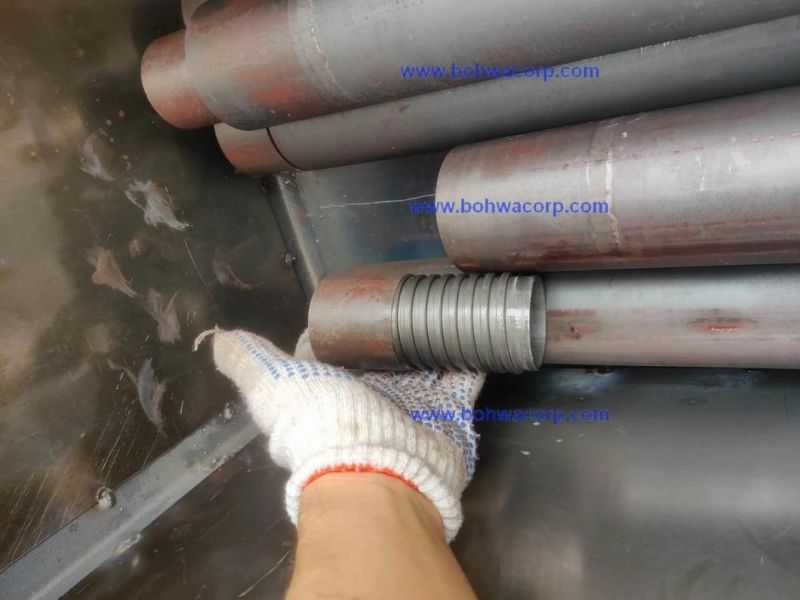

Drill Pipe Diameter	42mm
Drilling Hole Diameter	75mm
Drilling Depth	50 m
Kelly Bar	Dia.=50mm / L=1m
Recommend Drill Pipe Length	0.75m	2m
Drilling Angle	90°
Diesel Engine Power	5.7kW/2200rpm
Dimensions of Main Machine  (L x W x H)	1400x600x1600mm	1400x600x1200mm
Total Weight of Main Machine	300KG
The Heaviest Part of Machine	70KG
Spindle Rotary Speed	285, 570r/min
Spindle Stroke	1m
Lifting Force	300KG
Feeding Force	200KG

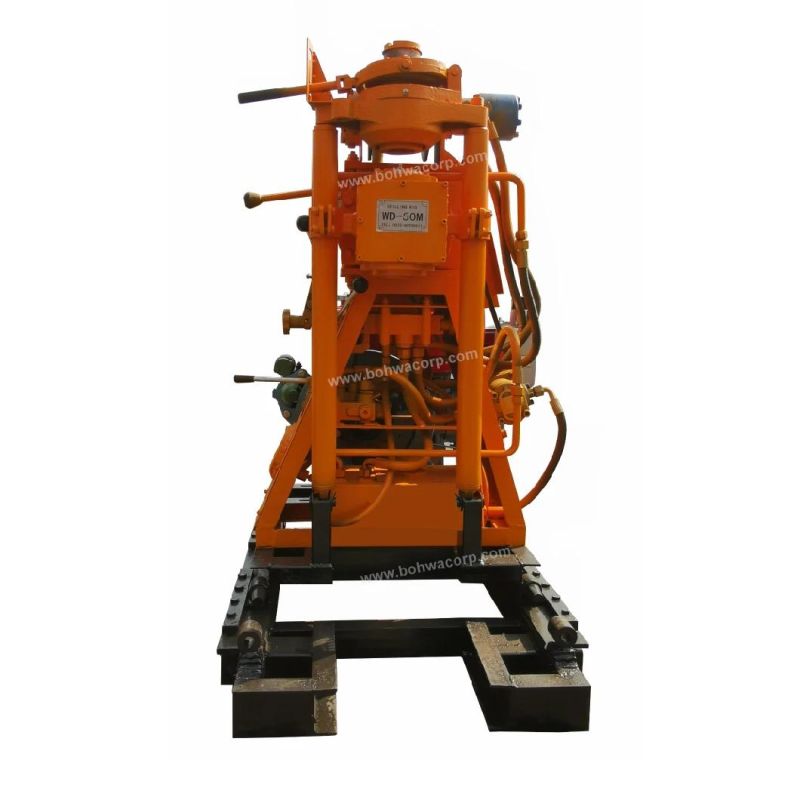

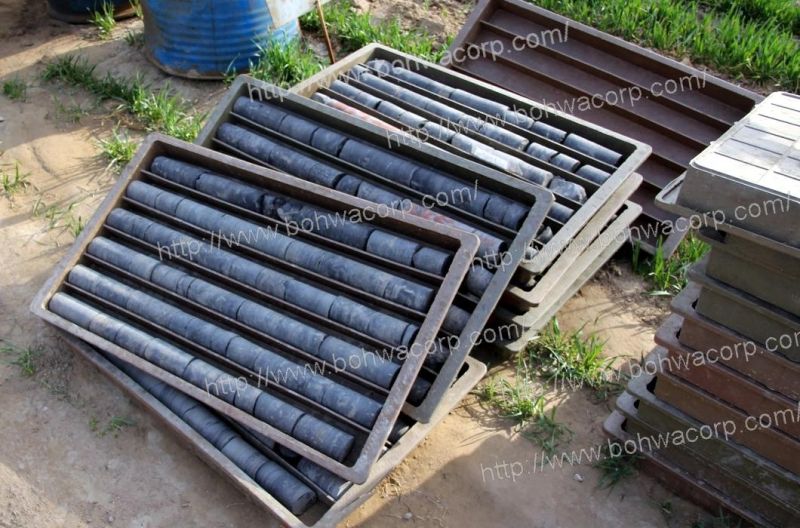

IV. Photos
