• Model NO.：YG-280
• Drill Hole Depth：50-100m
• Bit Type：Alloy Drill Bit
• Drilling Way：Rotary
• Type：Portable Water Well Drilling Rig
• Drilling Pipe Diameter：51mm
• Depth：50-100m
• Diameter：240mm
• Voltage：220V
• Power：4kw
• Bump Power：2.2kw
• Elevating Force：500kg
• Weight：150kg
• Model：Yg-240
• Transport Package：Wooden Cases
• Specification：120kg
• Trademark：Yugong
• Origin：China
• HS Code：8430419000
• Production Capacity：1500sets,Month

Model

ZX220

Engine

Diesel

Drilling Depth

120 m

Drilling Diameter

20-280 mm

Motor Power

8 HP

Drilling Method

Percussive and Rotating Type

Pump Power

3.5 HP

Drilling Rod Diameter

51 mm

Drilling Rod Length

1500 mm

Rod Change Method

Full Automatic Screw Thread

Dimensions

800*800*2700 mm

Weight

200 kg

Product Features:

1.Light weight, energy saving

2.Patented product, unique design and simple drilling structure

3.Easy to transport and can learn how to handle the machine in short time

4.Can drill through hard stratum, unless thick rock layer

5.Assure easily operation and long time service life

6.One person operation, reduce the labor intensity

7.High efficiency and work fast

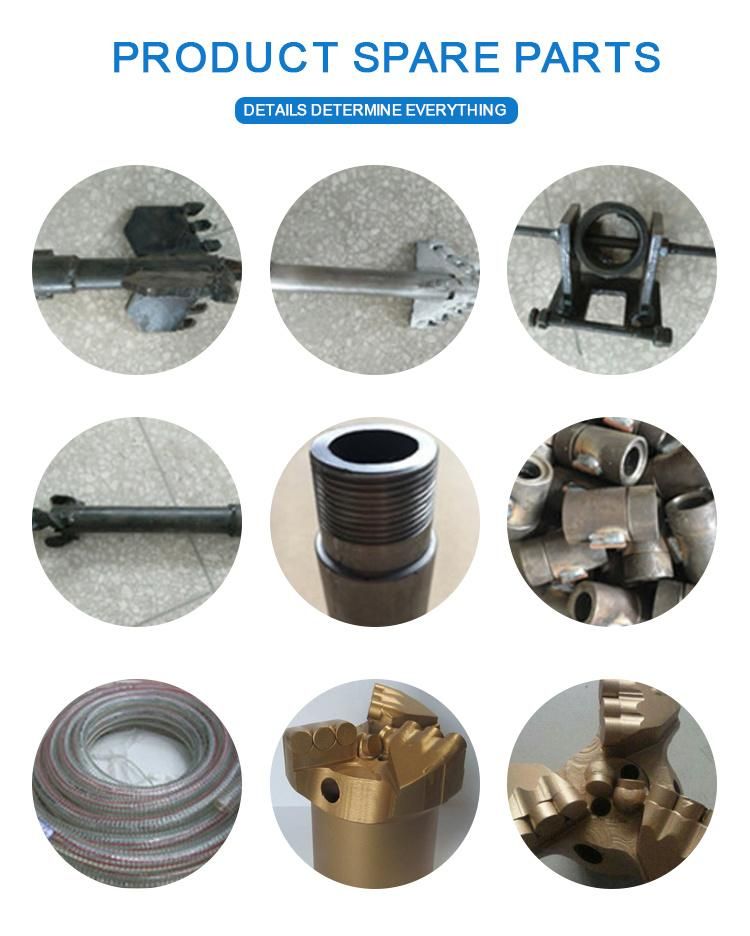

products spare parts

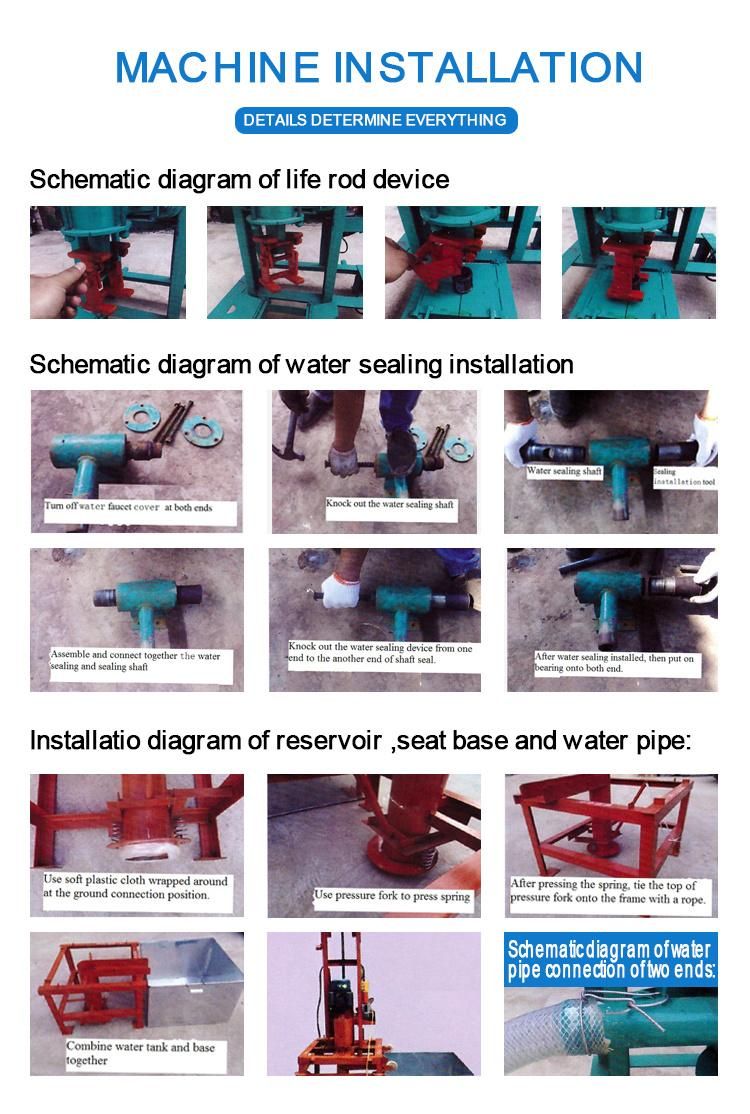

Installation Introduction:

Application for the machine:

Its advantages are: small power, large torque, small size, portable, high efficiency, easy to operate, low noise To adapt to various environmental terrain drilling machine. The machine is easy to use, simple operation, fast into the hole and 10 meters per hour, the noise is small, operation is extremely simple, single to operation, mechanical dump drill pipe, hit 100 m at Wells, for example, drill pipe removing, on average, about 10 minutes, and mobile and convenient, completion of drilling operation, a single operation to complete moving work.

1.We have more than15 years manufacture and export experience.
2.Exporting to all over the world,win high reputation among customers.
3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.
6.Factory and Competitive Price we offer.
7.Strong Research & Development technical team.
8.Various machinery to meet all your needs at our factory.
9.Engineers are available to guide the installation and take care of other problems.
10.We offer OEM&ODM service to meet all your requirements.
