20 Ton Horizontal Directional Drill Rig (XZ200)

Evangel Industrial (Shanghai) Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：>150m

Base Info

  • Model NO.：XZ200
  • Bit Type：Drag Bit
  • Drilling Way：Rotary
  • Type：Crawler
  • Color：Yellow
  • Pull/Push：200kn
  • Pipe Diameter：60mm
  • Transport Package：Nude
  • Specification：40 container
  • Origin：China, Xuzhou
  • HS Code：903180909
  • Production Capacity：50 Sets,Month

Description

SPECIFICATIONS FOR XZ200 HORIZONTAL DIRECTIONAL DRILLS
EngineEngine BrandCumEngine Type6BTAA5.9-C150Rate PowerkW112
Thrust-PullMax Thrust-Pull ForcekN225Max Thrust-Pull Speedm/min26
RotationTorqueN.m6350Max Spindle Speedr/min160
Mud PumpMax Flow RateL/min250Max PressureMpa8Pipemm x m73 x 3Max Inclination Angle022Max backreamer diametermm600Weightt8.5Dimentionmm5900x2020x2400Optional1. Cab                                                                         2. Air-condition
3. Full-automatic pipeloader                              4. Single automatic anchor
5. Dual automatic anchor                                    6. Mud antifreeze
7. Automatic thread oil daub                              8. Piston pump hydraulic system
9. Semi-automatic pipeloader                           10. Mud cleaning

Pictures

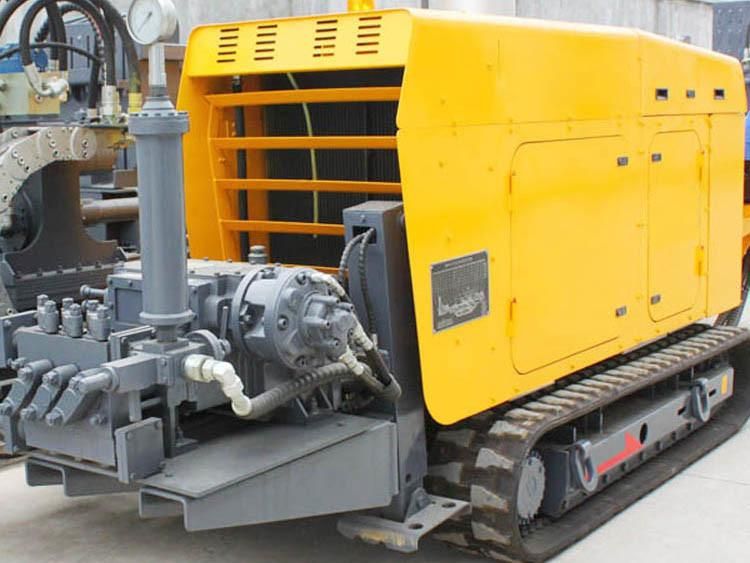

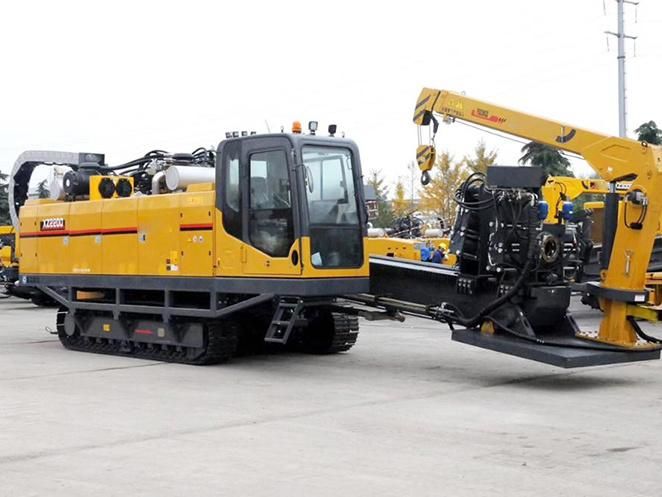

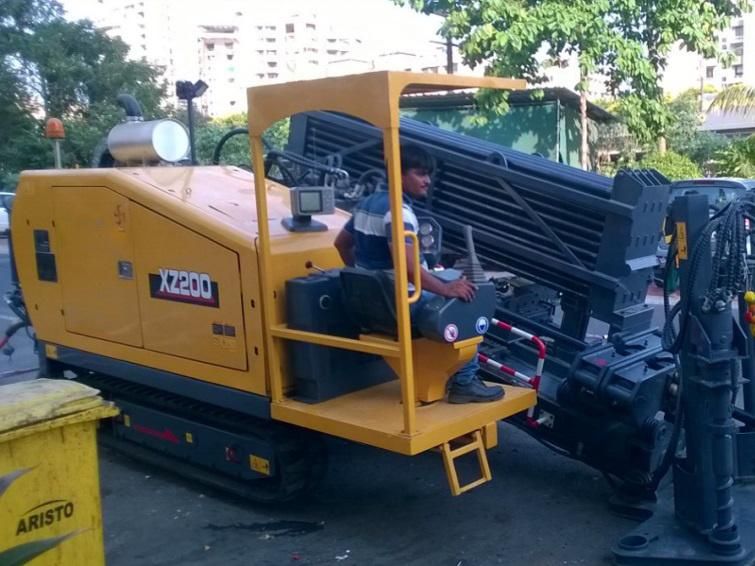

20 Ton Horizontal Directional Drill Rig (XZ200)20 Ton Horizontal Directional Drill Rig (XZ200)20 Ton Horizontal Directional Drill Rig (XZ200)
