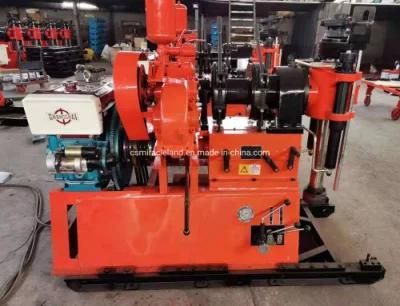

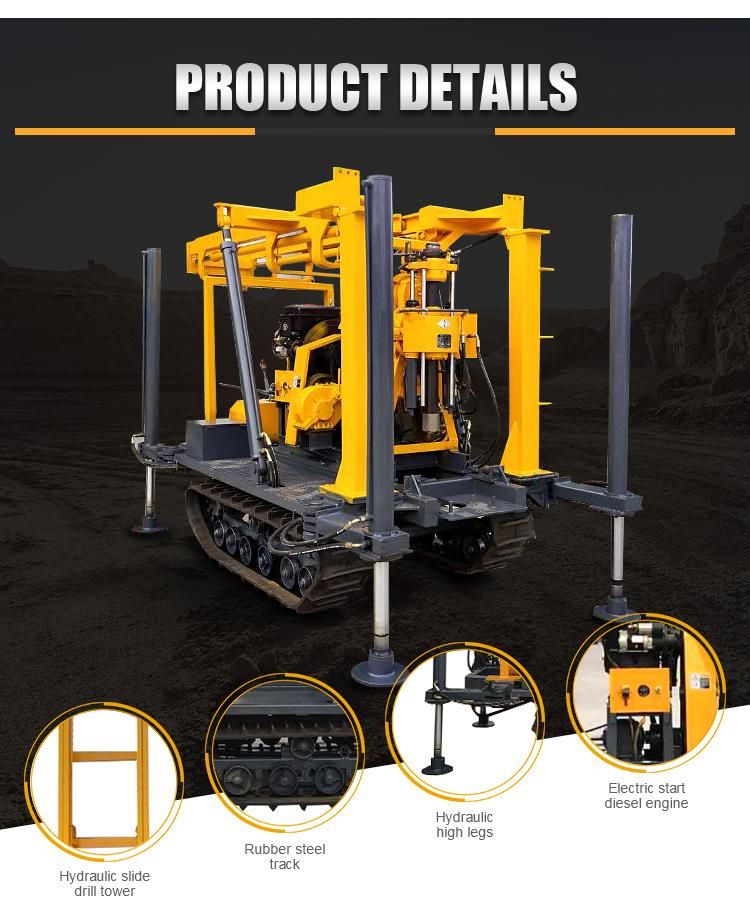

Portable Core Drilling Machine 130m Drilling Core Rig Machine Concrete

Shandong Beijun Heavy Industry Co., Ltd.
  • Certification：CE
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：150-200mm
  • Drill Hole Depth：150-200m
  • Bit Type：Cone Bit

Base Info

  • Model NO.：XYD-130
  • Drilling Way：Rotary
  • Drilling Depth：130m
  • Maximum Opening Diameter：220mm
  • Diameter of The End Hole：75mm
  • Drilling Rod Caliber：50mm
  • Drilling Angle：90°-75°
  • Drill Weight (No Include Power)：2600kg
  • Spindle Speed：142,285,570 R,Min
  • Spindle Stroke：450mm
  • Max Single Line Hoisting Capacity：1600kg
  • Single Line Lifting Speed：0.41,0.82,1.64 M,S
  • Drum Diameter：140mm
  • Transport Package：Wooden Packaging
  • Specification：2600kg
  • Trademark：Beijun
  • Origin：Shandong
  • Production Capacity：1000 Piece One Month

Description

Mud pumpTypehorizontal single urn twin-actionDisplacement95 /77L/minMaximum pressure1.2mpaWork pressure0.7mpaWater inlet caliber30mmWater to exit caliber20mmTriangle conveyer beltB1575mmPortable Core Drilling Machine 130m Drilling Core Rig Machine Concrete
