• Model NO.：SL-600
• Drilling Way：Impactor
• Type：Truck Mounted
• Usage：Water Well
• Truck Brand：Sinotruck,Dongfeng,Shacman
• Quality：High Quality
• Transport Package：Plastic Film
• Specification：200 300 400 500 600
• Trademark：SL
• Origin：China
• HS Code：8430412900
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. SL-600 Drilling Way Impactor Type Truck Mounted Usage Water Well Truck Brand Sinotruck/Dongfeng/Shacman Quality High Quality Transport Package Plastic Film Specification 200 300 400 500 600 Trademark SL Origin China HS Code 8430412900 Production Capacity 20 Sets/Month

Product Description

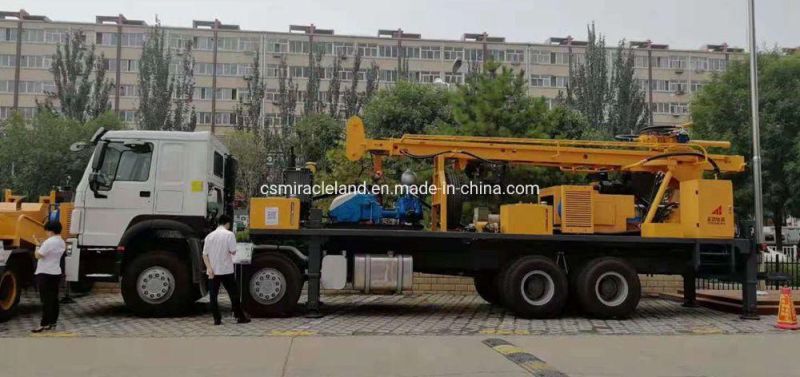

SL Series Truck mounted full hydraulic DTH well drill is a new,highly-effective ,energy-saving and multifunctional hydraulic drill and it is specialized in drilling well ,monitoring well, geothermal air-conditioning hole,grouting hole of the hydropower cofferdam ,grouting hole for dyke seepage control and grouting hole for base enforcement ,surface mining ,anchorage . national defense project and other drilling operations;The drill rig is equipped with hydraulic motor rotation with a high power,propulsion and lifting of cylinder and down-hole impacter with high blast pressure,to realize high effectiveness of drilling footage and low energy consumption.

Features:

1, The rig engine using China famous brand Yuchai turbocharged diesel engine, which is more powerful during drilling;

2, Walking devices: the rig is equipped with Dongfeng/Sinotruck/Shacman brand truck 4x2/6x2/6x4 chassis per customer's requests, which is more convenient for movement and transportation, long working life;

3, The mud pump/air compressor can be mounted on the truck chassis per customer's request;

4, The hydraulic pump: Well-known brand gear pump can meet the requirements of the hydraulic system for the working flow of the drilling rig, unique hydraulic system design, maintenance is simple with lower costs;

5, The power head device: gearbox casting, double motor to provide power, large torque, durability, maintenance cost is lower;

6, The lifting force: patented design compound arm, arm in small size, long stroke, double-cylinder upgrade, lifting with large tonnage;

7, Lifting arms of each rig are installed limiter to protect the cylinder safety cylinder and to protect the security of the work process;

8, Each of the hydraulic oil tube are wrapped with protective jacket, which make the oil tubes have a longer service time.

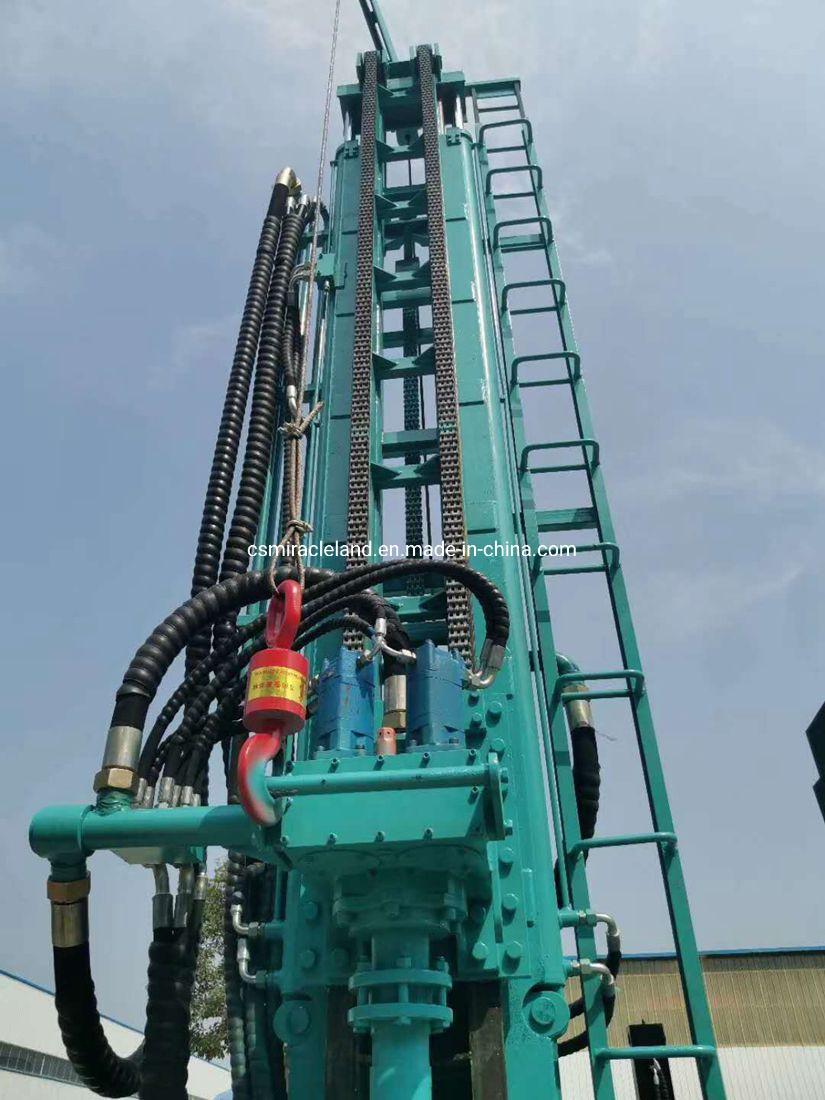

Double motor to provide power, large torque, durability, maintenance cost is lower.

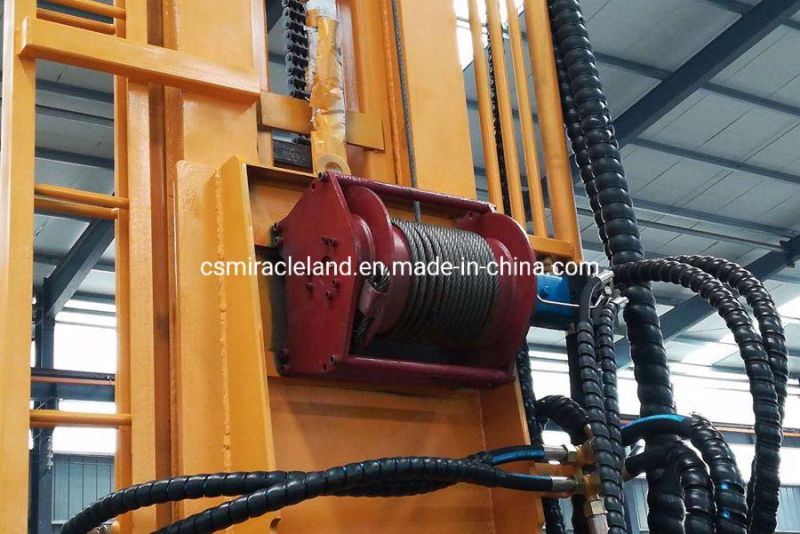

Large lifting capacity hydraulic winch is equipped on the rig, which is convenient to lift the drill pipe, casing tubes, drilling tools and etc.


The welding machine can be equipped on the rig, which is used to weld the single use casing tubes during drilling.

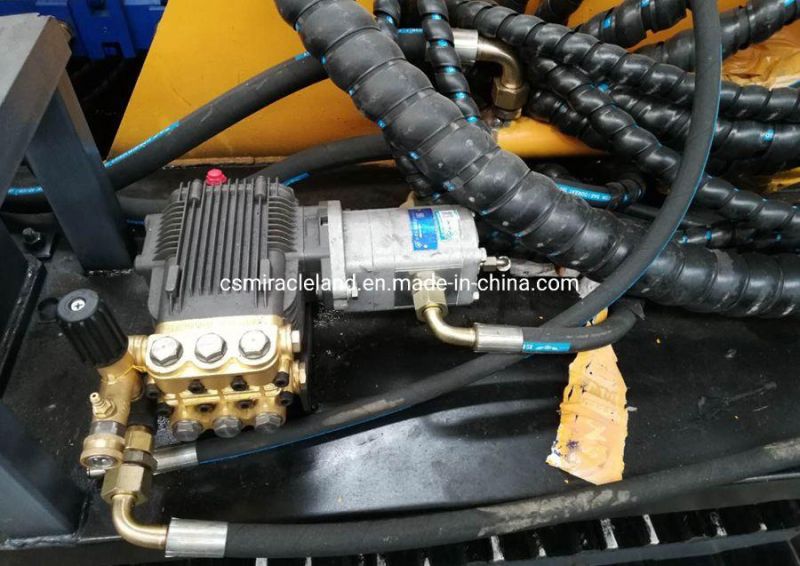

Hydraulic water pump is the optional configuration for the customers, the hydraulic water pump can be used to clean the rig and for foam drilling.

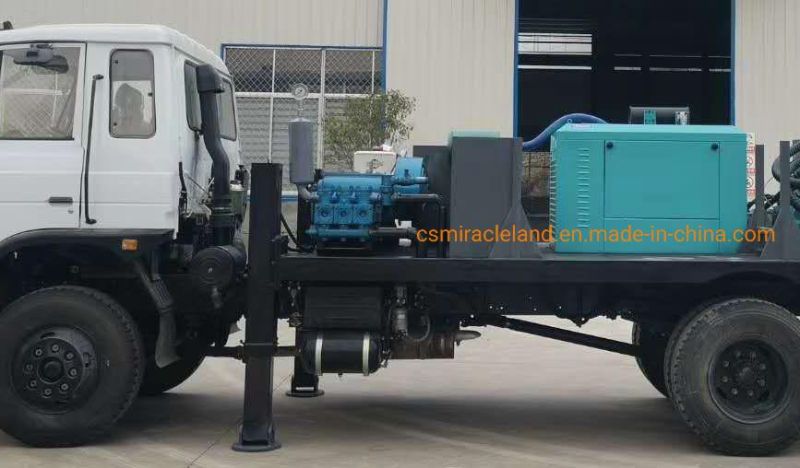

The mud pump is installed on the truck, it is very convenient to use

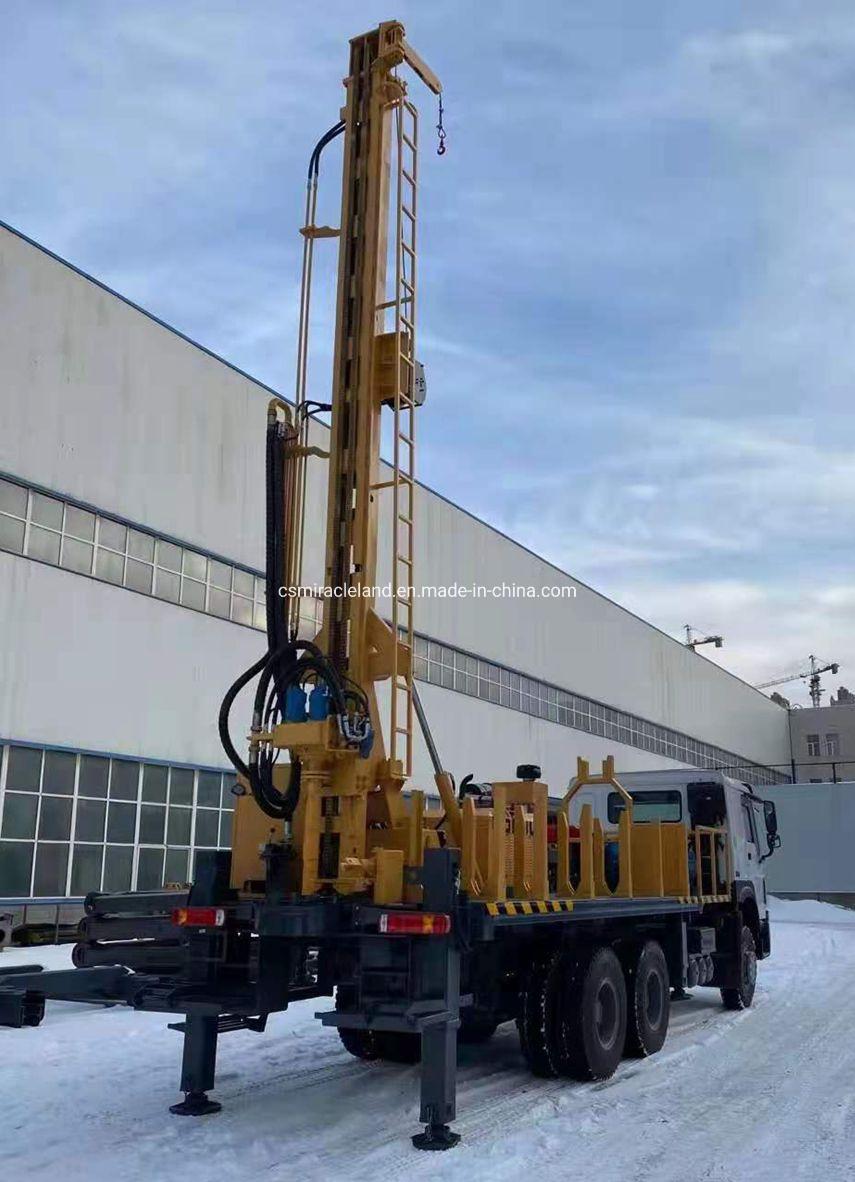

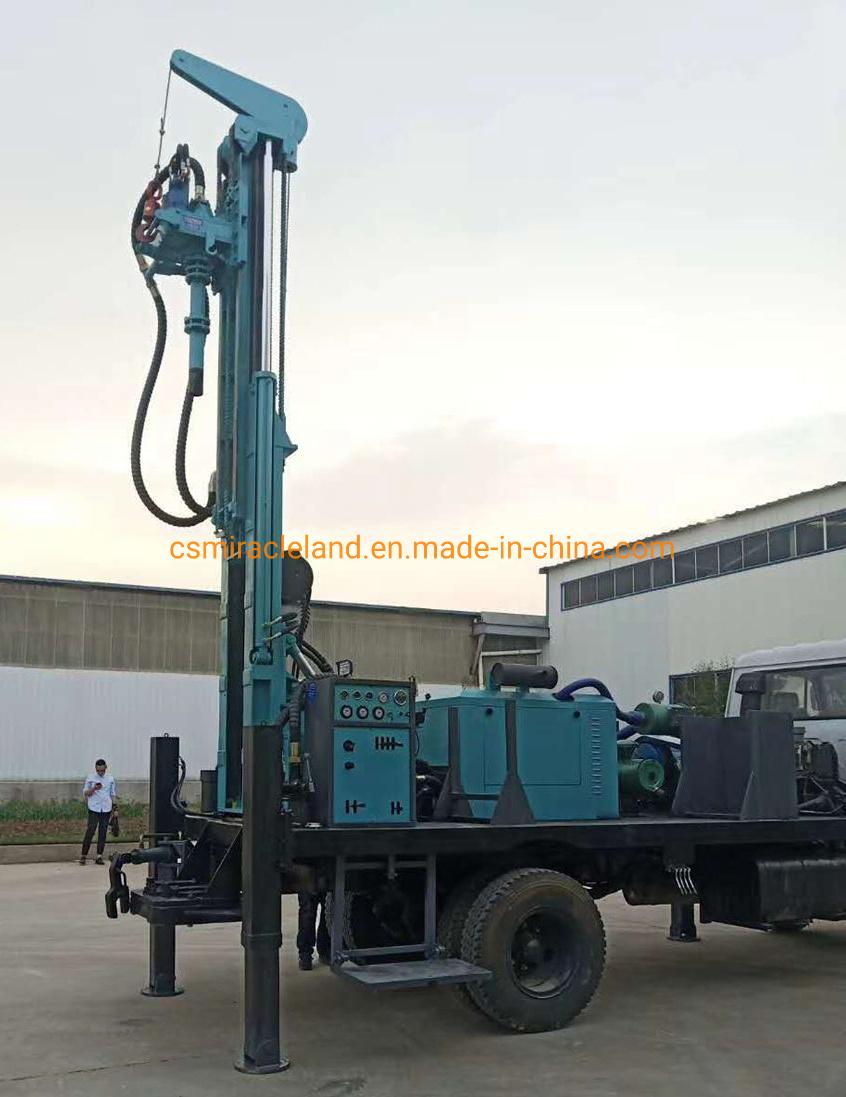

6.6m height hydraulic drill tower, which is convenient for pushing 6m length casing tube, improve drilling efficiency.

Technical parameters:


Model	SL-600
Drilling depth	600m
Drilling diameter	Φ146-Φ450mm
Working air pressure	1.6-6.0MPa
Air consumption	17-75m3/min
Drilling pipe diameter	Φ102
Rig Length of drill pipe	3.0m/6.0m
Rig One push length	6.6m
Truck tramming speed	85-90km/h
Truck brand	Sinotruck/Dongfeng/Shacman
Truck chassis	6x2   6x4  8x4
Fuel type	Diesel oil
Truck power	118-279kw
Rig Rotation speed	105-210 rpm
Rig Rotation torque	5500-12000 N.m
Rig power	1320 KW
Rig Weight	13.5T
Mud pump model	BW-250/BW-320/BW-450/BW-600
Pump flow	250-600L/min
Pump diesel engine model	15-75kw
