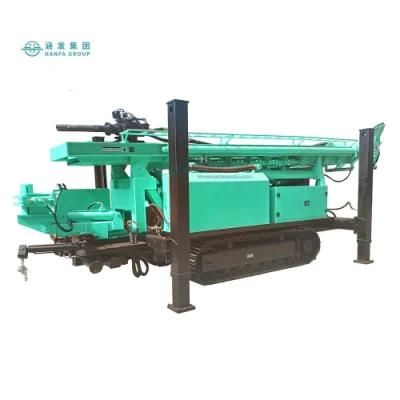

200m Diesel Engine Water Well Drilling Rig Machine

Shandong JK Machinery Co., Ltd.
  • Certification：CE, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：140-305mm
  • Drill Hole Depth：200m
  • Bit Type：Diamond Bit
  • Drilling Way：Rotary

Base Info

  • Model NO.：JK-DR200
  • Type：Crawler
  • Usage：Water Well
  • Voltage：24V
  • Weight：5.8t
  • Warranty：1 Year
  • Power Type：Diesel
  • Product Name：Water Well Drilling Rig

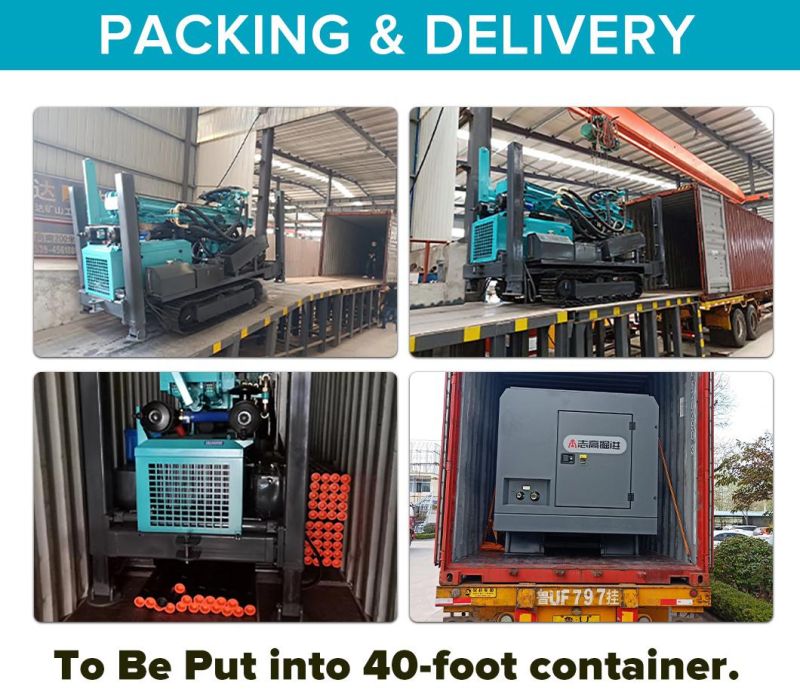

  • Transport Package：20gp
  • Specification：4000*1750*2450mm
  • Trademark：SDJK
  • Origin：Shandong
  • HS Code：8430412100
  • Production Capacity：100sets,Month

Description

The Main Parameters  ModelJK-DR200Weight5.8T Bore diameter140-305mm Drilling depth200m Stroke3.4m Travelling speed2.5km/h Gradeability30% Power 70KW Rated pressure1.7-3.0mpa Air consumption17-30m³/min Drill rod diameterΦ76, Φ89    Drill rod length1.5m 2.0m 3.0m Elevating capacity15T Swing speed45-70-115rpm Swing torque3500-4800N.M Dimensions4000*1750*2450mm200m Diesel Engine Water Well Drilling Rig Machine
