• Model NO.：YGD-100
• Drilling Way：Impactor
• Power Type：Electrical Air Compressor
• Working Pressure：0.5 to 0.8MPa
• Application：Soil Rock
• Drillin Pipe：50~60mm
• Rated Speed：3200r,Min
• Weight：450kg
• Air Consumption：12m3,Min
• Cylinder Diameter：140mm
• Propulsion Stroke：1070mm
• Max Propelled Force：9600n
• Transport Package：Export Wooden Box According to Your Needs
• Specification：2230*380*550mm
• Trademark：Yugong,OEM
• Origin：China
• HS Code：8431499900
• Production Capacity：5000 Sets,Month

Basic Info.

Model NO. YGD-100 Drilling Way Impactor Power Type Electrical Air Compressor Working Pressure 0.5 to 0.8MPa Application Soil Rock Drillin Pipe 50~60mm Rated Speed 3200r/Min Weight 450kg Air Consumption 12m3/Min Cylinder Diameter 140mm Propulsion Stroke 1070mm Max Propelled Force 9600n Transport Package Export Wooden Box According to Your Needs Specification 2230*380*550mm Trademark Yugong/OEM Origin China HS Code 8431499900 Production Capacity 5000 Sets/Month

Product Description

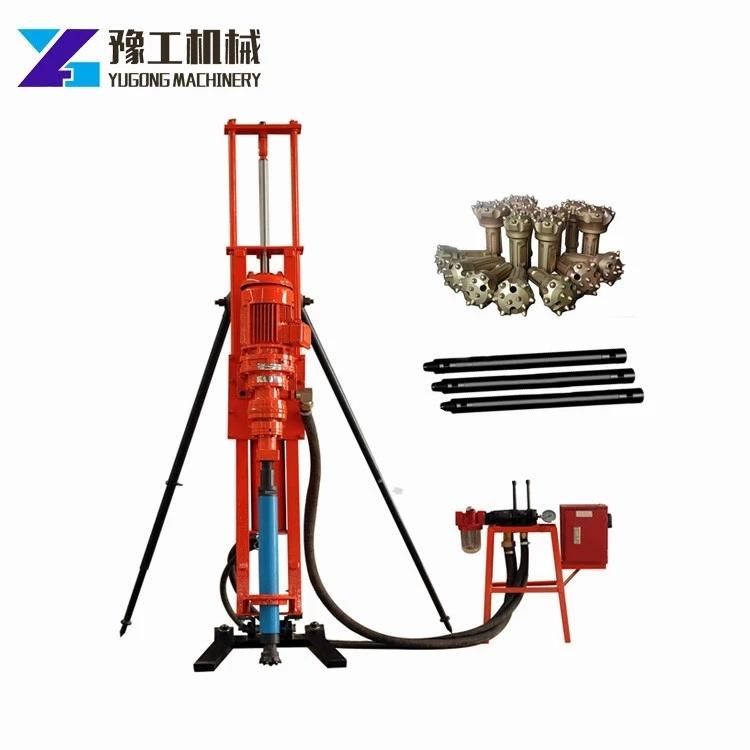

Small Portable Light Weight Road Construction Anchor Drilling Rig Machine
 Product Description Of DTH Drilling Rig

Portable DTH Mining Machinery Drilling Rig is designed for these highway, railway, water conservancy, mine construction engineers which road inconvenient in the earlier projects stage.The auxiliary equipment for supplying power is lighter and easier to relocation and transfer.In the case of utmost reduce the main machine weight can still meet the needs of drilling large diameter and deep hole operations.

But also is suitable for the slope support and other projects.So the machine is a kind of portable and economic model.

Performance Advantages Of DTH Drilling Rig

1.Full hydraulic anchor drilling rig

This type of drilling rig is rotary power and propulsion power and auxiliary action are based on hydraulic power, hydraulic Station by the motor or internal combustion engine drive.
The adjustment range of this kind of drilling rig is wider, and it is Suitable for large hole diameter and hole depth.The opening and anti-jamming ability are good, and the operation is flexible. And convenient.It is the most used type of domestic manufacturers.

2.An electric hydraulic anchor drilling rig

This type of drilling machine to rotate the motor-driven, propulsion and auxiliary action to hydraulic power.

Technical Parameters Of DTH Drilling Rig

Model	YGD 70           YGD80	YGD 100	YGQ 100	YGB100-4   YGB120-5.5
Drilling diameter (mm)	50-90/90-120	90-130	90-130	90-130
Rock ruggedness coefficient	>20	>20	>20	>20
Drilling depth (m)	15	25	25	30-40
Rotate speed (r/min)	110	110	110	110
Working  air pressure (Mpa)	0.5-0.7	0.5-1.0	0.5-1.0	0.5-1.0
Air comsumption (m3/min)	4	6	12	10
Propulsion stroke (mm)	90	140	140	140
Max propelled force ( N)	3600/8000	9600	9600	9600
Electric motor power (kw)	3/4	4	-----	4/5.5
Electric Motor Voltage( V)	380	380	-----	380
Rated speed (r/min)	1440	1440	3200	1440
Drilling rod (mm)	42	50/60	50/60	60
Drilling rod length (mm)	1025	1025	1025	1025
Dimension (mm)	1740*260*420	2280*440*550	2230*380*550	2230*380*550
Weight (kg)	280/320	470	450	460/480

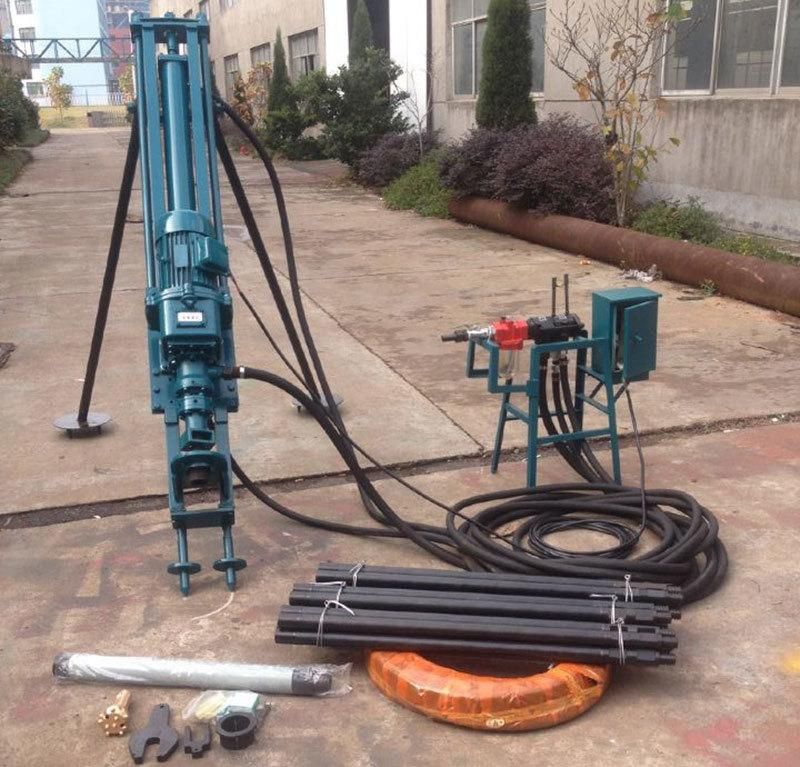

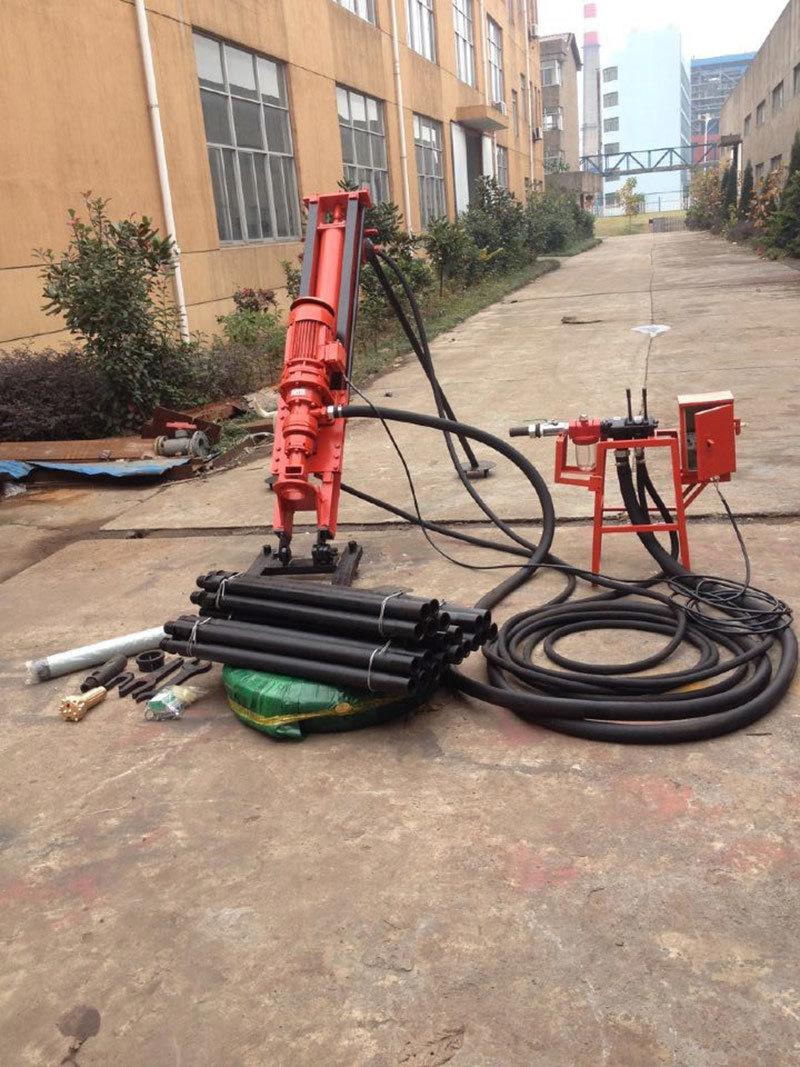

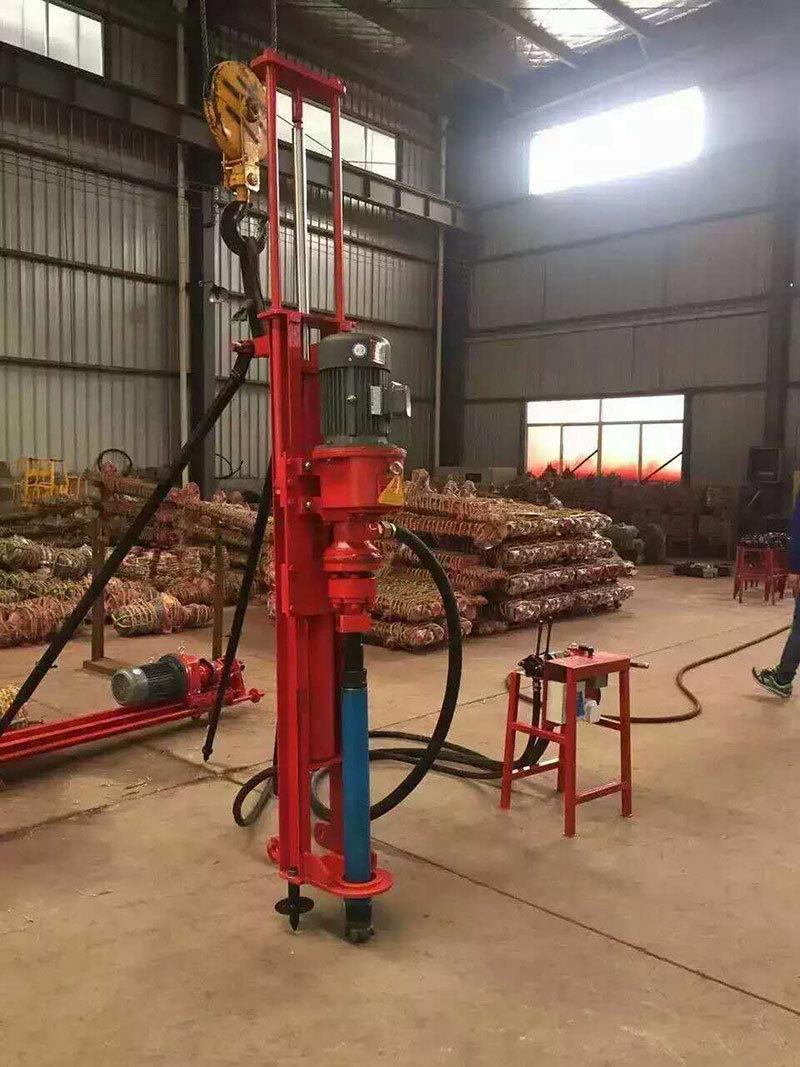

Real Picture Of DTH Drilling Rig




Packaging Details
1.Wrapped by protective film;
2.Packed by standard import & export wooden cases or carton boxes;
3.Customized according to your requirement.

Delivery Time
Within one week.

Shipping
Port: Tianjin, Qingdao, Shanghai or other ports according to your requirements.
Sea freight: FOB/CIF/DDU quotation are all available.
Transport method: By logistics; by automobile; by train; by shipping; by air etc.

Company Information

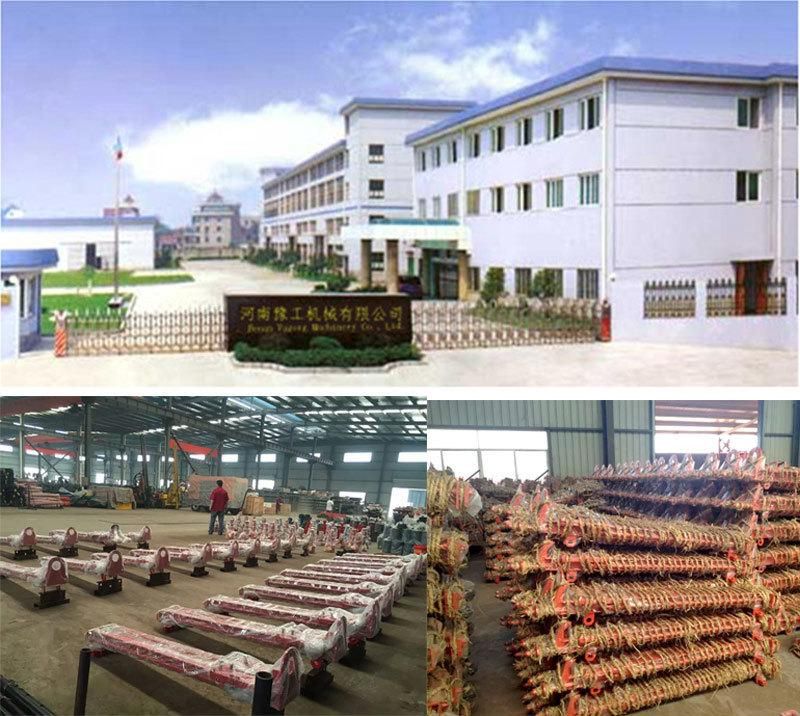

Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipment and so on.

We believe that good quality can give us survival, thus we only provide?you with?top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.

All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!


Our Services
1. Reply within 24 hours, professional answers.
2.We provide free video guidance and telephone guidance.
3.During the warranty period, any quality appears, we refund it for free.
