• Model NO.：DFQ-100W
• Application：Hard Rock, Water Well and Rock Core Drilling Rig
• Usage：Coal, Ore, Water Well
• Power Type：Diesel
• Transport Package：Container
• Specification：SGS, BV
• Trademark：DEFY
• Origin：China Henan
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. DFQ-100W Application Hard Rock, Water Well and Rock Core Drilling Rig Usage Coal, Ore, Water Well Power Type Diesel Transport Package Container Specification SGS, BV Trademark DEFY Origin China Henan Production Capacity 200 Sets Per Month

Product Description

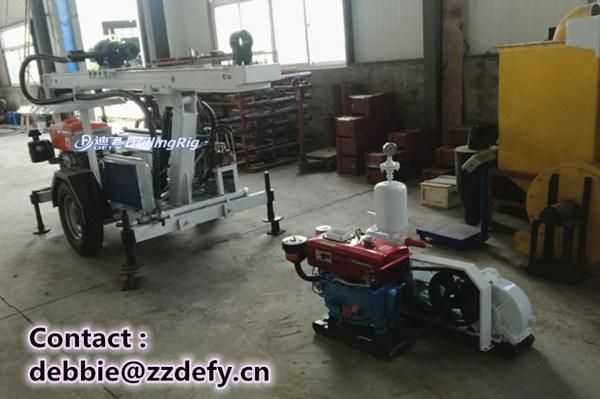

      DFQ-100W DTH hammer water well drilling machine


Brief Introduce
100m deep DFQ-100W rock drilling machine is widely used for water well drilling, geothermal
air-conditioning project and other boreholes, especially applicable to mountain area and
 rock formation water engineering.


Features:
1. Air operated, working with air compressor,DTH hammer and DTH bits, high efficiency when drilling very hard rock, such as granite, limestone, marble. 30-40m per hour.

2. Hydraulic control system, easy to operate, one person is ok.

3. Integrative drill tower, and four support legs.

4. Trailer type, very easy to transport.

5.Much higher efficient than the traditional rotary drill rigs, creating the considerable economic benefit for users.

6. 24Kw/2300rpm diesel engine, sufficient power for drilling.


Technical Parameter:

No.	Item	DFQ-100W
1	Drilling caliber	Φ105-203mm
2	Max. drilling depth	100m
3	Work pressure	1.05-2.0 MPa
4	Gas consumption	15-18 m³/min
5	Impacter	DHD340350
6	Apply to rock hardness	f=6-12
7	Power	24Kw/2300rpm
8	Rotary torque	1050N.m
9	Weight	2200 Kg
10	Dimension	3200x1770x2050mm


Our service:
Delivery time : depends on the quantity, usually it is 10 working days.
Quality control : we have QC department, before shipping, goods will be strictly checked.
Tech support :
- 24 hours * 7 days online pre & after sale service ;
- Factory site training or engineers go to overseas to train the workers ;
- Manual and DVD operation video.
