• Model NO.：DFQ-200C
• Gas Consumption：16~55 M³,Min
• Chassis：Truck, Crawler, Trailer
• Usage：Water Well
• Power Type：Diesel
• Transport Package：Standard Export Package
• Trademark：defy
• Origin：Henan, China
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. DFQ-200C Gas Consumption 16~55 M³/Min Chassis Truck, Crawler, Trailer Usage Water Well Power Type Diesel Transport Package Standard Export Package Trademark defy Origin Henan, China Production Capacity 100 Sets Per Month

Product Description

Product Description
It is much more efficient than the traditional rotary drilling rigs, can create very considerable economic benefit for users. It solves the problems to drill very hard rocks, gravel, pebble stratum that the traditional drilling rigs are difficult to drill, Also can work efficiently under all kinds of geological structure.
Besides, it is a kind of light weight, high efficiency and multifunction drilling equipment, it is suitable for drilling waterwells, agricultural irrigation well, geothermal air-conditioning hole and other uses, especially for water engineering in mountainous and rock areas.

1. It is applied to different drilling conditions, like soil , gravel, soft rocks, hard rocks,etc.

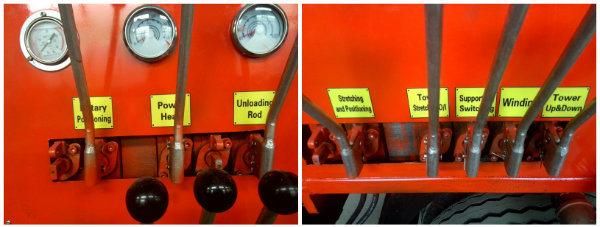

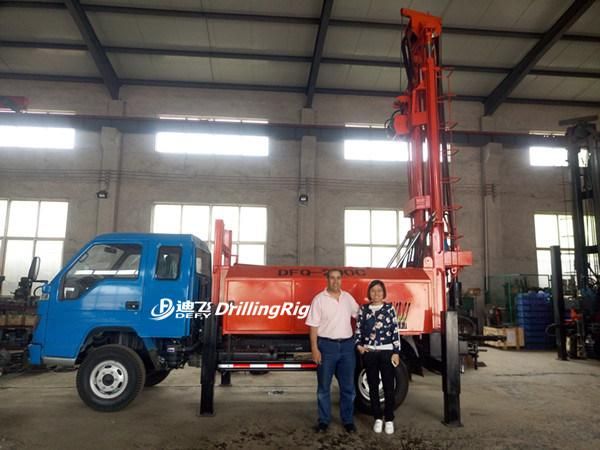

2. Fully hydraulic control, mounted on truck, with easy operation and transportation.
3. Four hydraulic standing legs for stable working.
4. Automatic loading and unloading drill rods, automatic clearing wells.

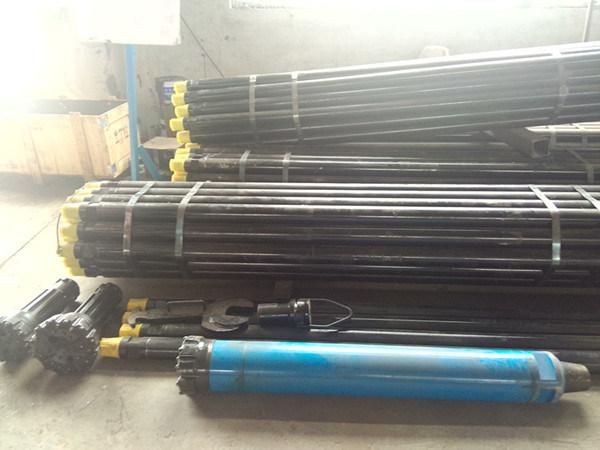

5. Using Air compressor , mud pump, DTH hammer drilling tools, highly efficient for hard rocks.
6. Move base: Six-wheel type, Crawler type and Truck mounted type for your Choice.

Specification

No.	Item	Specification
1	Drilling caliber	Φ100-400mm/Φ4"-15.7"
2	Max. drilling depth	200m
3	Diameter of drill pipe	Φ89
4	Unit Length of drill pipe	3000mm
5	Work pressure	1-3.45 MPa
6	Gas consumption	16~55 m³/min
7	DTH Hammer	DHD380
8	Apply to rock hardness	f=6-12
9	Power	50Kw/2200rpm
10	Gradeability	20°
11	Walking speed	60 Km/h
12	Rotary torque	2000-4000N.m
13	Weight	6500 Kg
14	Dimension	6000×1900×2800mm

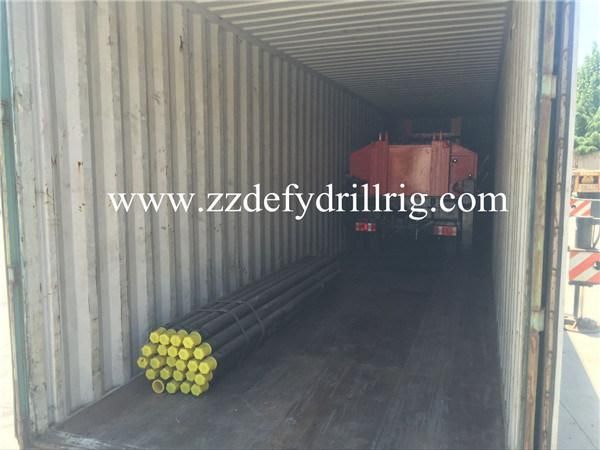

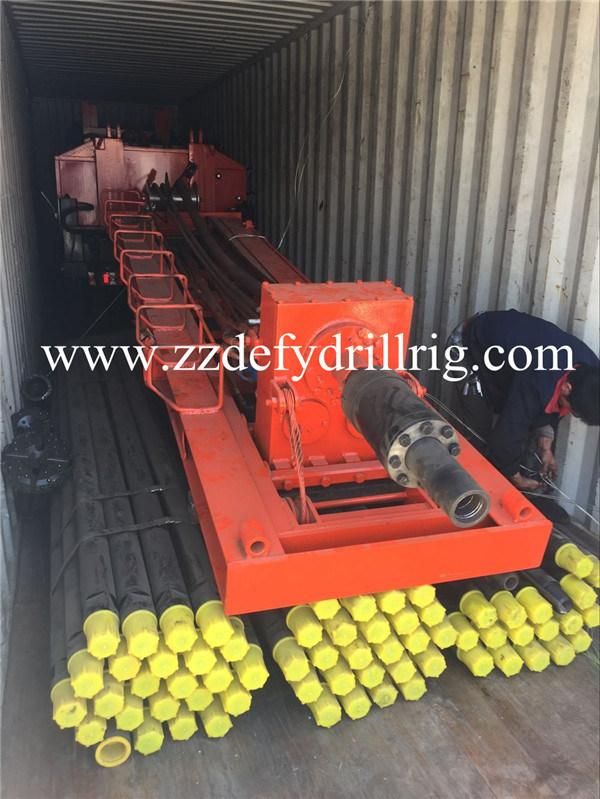

Packaging & Shipping



Company Information

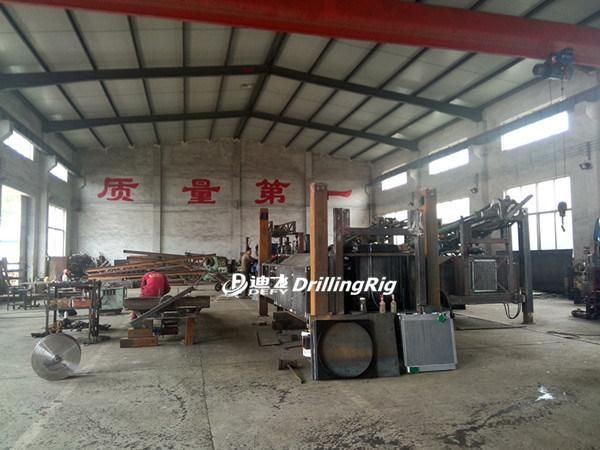

 Our factory dedicates to manufacturing drilling rigs since 1970s, more than 40 years experience
of production and development makes our drilling rig quality rank in the leading position at home
 and abroad.
We are always seeking for ever greater perfection,our R&D teamkeeps improving the Production
Technology, offering Better User Experiencewith customers' feedback


Our Services
 We offer portable air drilling rigs for 100m, 200m, 300m, 400m, 500m, 600m, etc. Our engineer will help to design a complete set of drilling rig and drilling tools at Good Price, ensuring direct use.
we are a company with a work schedule of 24 x 7 x 365 . We are where, when and how the customer needs us.
