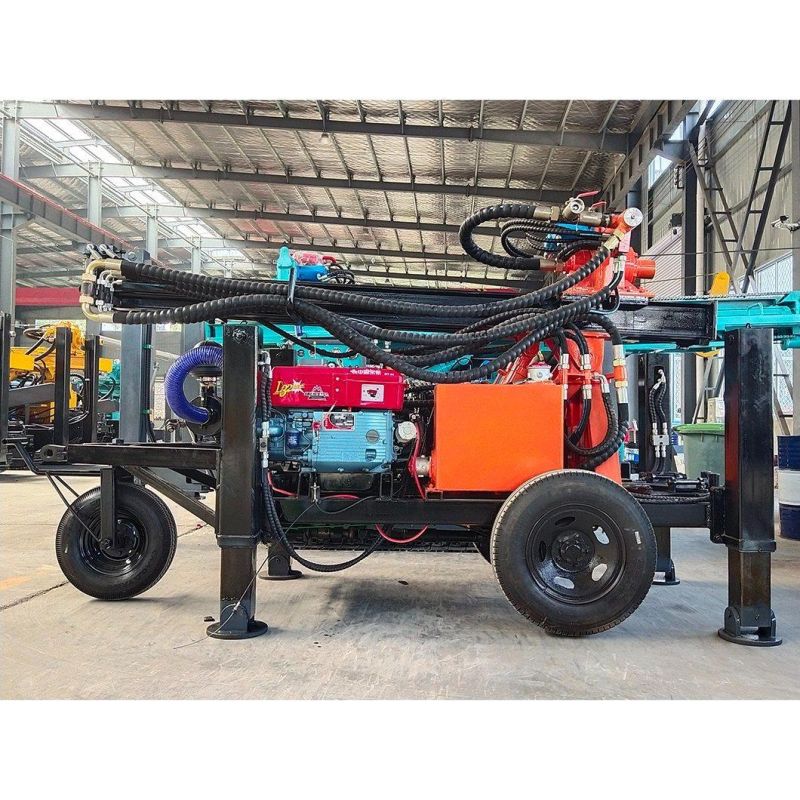

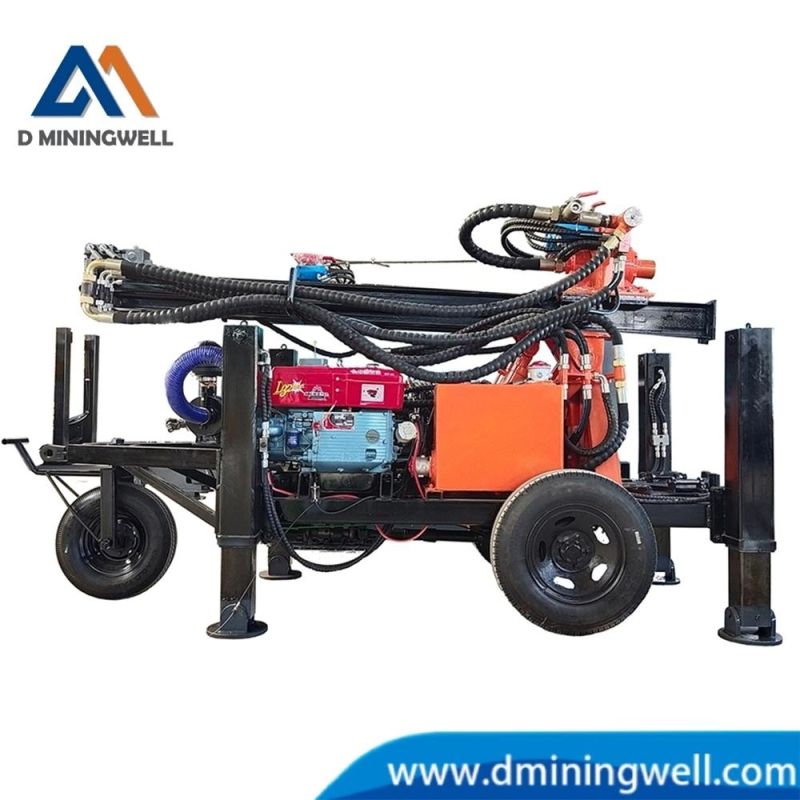

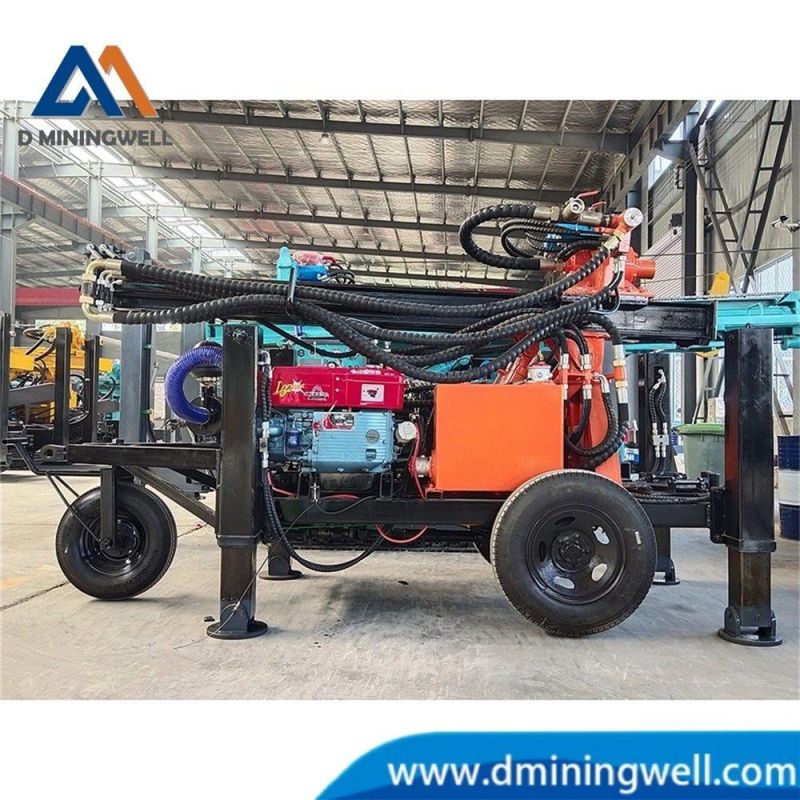

MW130 Water Well Drilling Rig Wheel Hydraulic Drilling Rig for Water Well

Zhejiang Miningwell Supply Chain Management Co., Ltd.
  • After-sales Service：Video Technical Support, Online Support, Spare PAR
  • Warranty：1 Year
  • Certification：ISO9001,CE
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：100-219mm

Base Info

  • Model NO.：MW130
  • Drill Hole Depth：130m
  • Bit Type：DTH Bit,Diamond Bit, Cone Bit, Drag Bit
  • Drilling Way：Impactor
  • Type：Crawler
  • Dimension(L*W*H)：3850*1560*2050mm
  • Air Capacity：15-29m3,Min
  • Swing Speed：40-65rpm
  • Drilling Pipe Length：1. 5 M,2.0 M
  • Key Selling Points：Low Maintenance Cost
  • Equipped Capacity：23kw
  • Diameter of Drill Rod：76mm,89mm.
  • Transport Package：Carton
  • Specification：4100*1950*2600mm
  • Trademark：MININGWELL
  • Origin：Zhejiang, China
  • Production Capacity：45PCS Per Month

Description

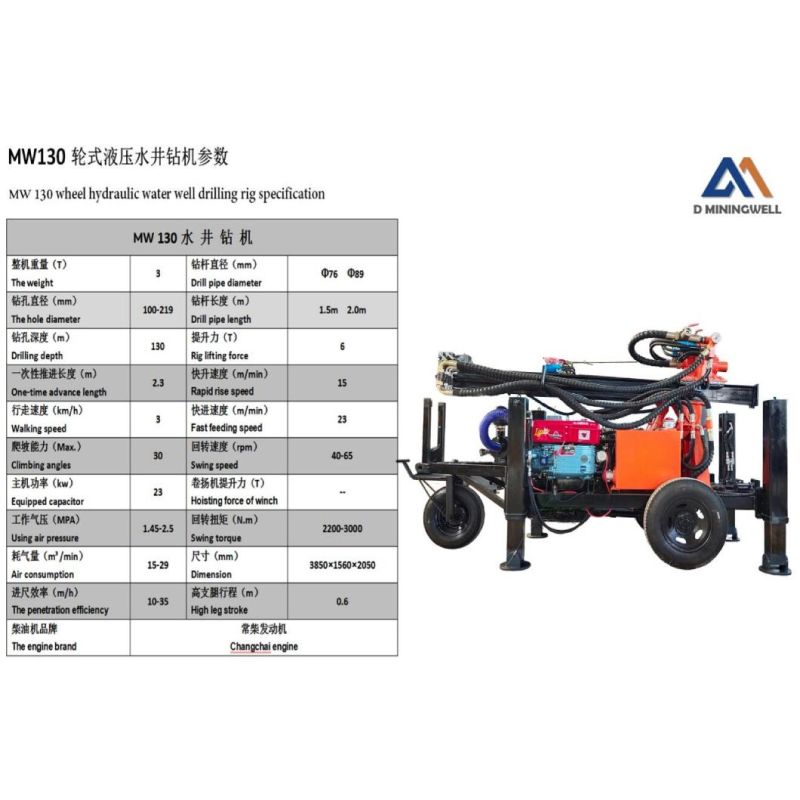

Technical Parameters of MW130 water well drilling rig

type

MW130

The weight

3T

Dimension

3850*1560*2050mm

The hole diameter

100-219mm

Drilling depth

130m

One-time advance length

2.3m

Walking speed

3KM/H

Climbing angles

30

Power

23KW

Using air pressure

1..45-2.5MPA

Air consumption

15-29M3/Min

Drill pipe length

1.5m  2.0m

Drill pipe diameter

76mm,89mm,

Rig lifting force

6T

Swing speed

40-65rpm

Swing torque

2200-3000N.m
