Mineral Prospecting Drilling Rig with Hydraulic Tower (HGY-1500T)
Changsha Miracleland Import & Export Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：ISO 9001:2008
- Condition：New
- Motor：Diesel Engine
- Drill Hole Diameter：Bq, Nq, Hq, Pq
Base Info
- Model NO.：HGY-1500T
- Drill Hole Depth：1500m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
- Usage：Ore, Water Well, Coal, Mineral Prospecting
- Type：Core Drilling Rig
- Transport Package：in Plywood Case
- Specification：1500T
- Trademark：FLYDISC
- Origin：Changsha, Hunan, China
- HS Code：8430691900
- Production Capacity：20 Sets,Month
Description
Basic Info.
Model NO. HGY-1500T Drill Hole Depth 1500m Bit Type Diamond Bit Drilling Way Rotary Usage Ore, Water Well, Coal, Mineral Prospecting Type Core Drilling Rig Transport Package in Plywood Case Specification 1500T Trademark FLYDISC Origin Changsha, Hunan, China HS Code 8430691900 Production Capacity 20 Sets/MonthProduct Description
Drilling Rig :Max depth 1200-1500m
Wide range of suitable rotary speed
Utility patent
Full hydraulic chuck

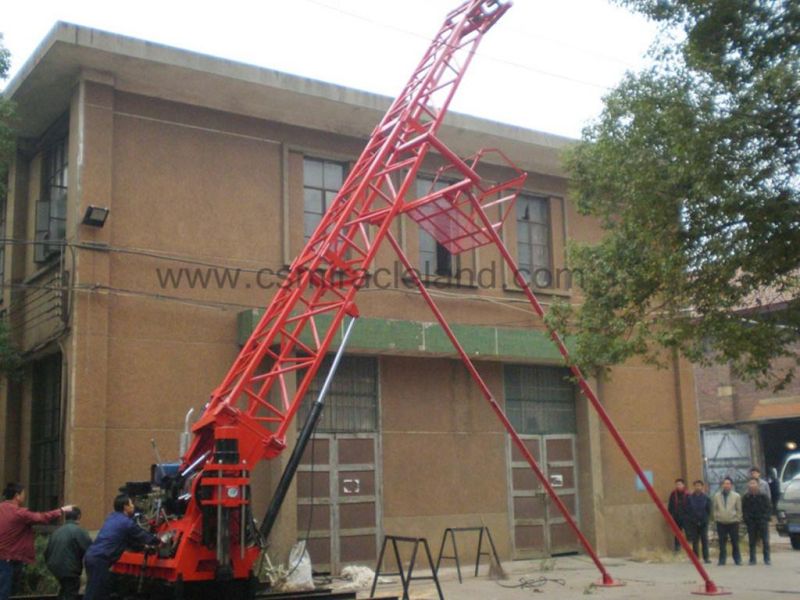

HGY-1500T Drilling Rig:
This machine is widely used in construction work such as exploration, railway, highway, port, bridge, hydropower, tunnel, water well, building, engineering geological prospecting, heavy caliber drilled pile and minor-caliber diamond core drilling.
Features of HGY-1500T Drilling Rig:
1) Wide range of suitable rotary speed to meet various needs.
2) Adopted from the 'jiefang"CA151 auto parts, such as clutch and gear-Box.
3) Reasonable design of the transmission and shift on the principle of bevel gear.
4) A good grip with the disk spring on the Chuck.
5) Convenient to lift up and down the tower, all the work are performed by the hydraulic system.
Technological Data of Rotary Core Drilling Rig (HGY-1500T)
| Model | HGY-1500T Drilling Rig |
| Drilling depth( m) | 1500~1200 |
| Rod diameter( mm) | Φ42~Φ50 |
| Spindle speed( r/min) | Positive rotation rate: 54 86 145 219 310 378 415 570 808 1081 Reverse rotation rate: 58 152 |
| Spindle stroke(mm) | 600 |
| Lifting power max( KN) | 80 |
| Driving force max(KN) | 60 |
| Spindle output torque max(N.M) | 7150 |
| Spindle hole diameter( mm) | Φ95 |
| Cable diameter(mm) | 17.5 |
| Drum circumferential velocity (9 layers) | 130 |
| Lifting speed( m/s) | 0.51 0.81 1.37 2.06 2.92 3.91 |
| Lifting capacity(single) max(KN) | 40 |
| Movable cylinder stroke (mm) | 400 |
| Gear oil pump model | 2CB-FA32/10-FL |
| Nominal displacement( ml/r) | 40 |
| Nominal pressure( MPa) | 14 |
| Electric motor model | Y225S-4 or Y225M-4 |
| Power( kw) | 37 or 45 |
| Speed( r/min) | 1480 |
| Diesel engine model | R4105ZD1 |
| Power( kw) | 56 |
| Speed( r/min) | 2800 |
| Diesel engine weight(Kg) | 385 |
| Overall dimensions(mm) | 2460*1150*1888 |
| Weight(power unit excepted)(Kg) | 4100 |
| Head angle range | 0~90 |
| Tower load(t) | 10 |
| Tower height(m) | 9.5 |
| Tower pedestal(m) | 4*4.5 |
