• Model NO.：HF038
• Type：Crawler
• Track Length：3646mm
• Track Width：500mm
• Walking Speed：1.8(Low), 2.95(Heigh)Km,H
• Max. Tractive Force：170kn
• Rated Power：335,2100Tkw,Rpm
• Fuel Tank Capacity：760L
• Working Pressure：20(Medium) 25(High)Bar
• Max. Air Delivery：25.4mm³,Min
• Rotation Rate：0-70rpm
• Max. Rotation Torque：3900nm
• Transport Package：Standard Export Packing
• Specification：CE, ISO
• Trademark：HANFA
• Origin：Zhengzhou City, China
• HS Code：843041
• Production Capacity：30sets,Month

GeneralWeightkg25000Lengthmm9785Widthmm3200Heightmm3500UndercarriageTrack lengthmm3646Ground contact lengthmm2875Track center distancemm2200(whole width 2700)Track widthmm500Ground clearancemm≥400Track oscillation°±10Walking motorEatonWalking speedkm/h1.8(low), 2.95(heigh)Max. tractive forcekN170Grade ability°20EngineModelQSZ13-C450-30(Cummins)TypeWater-cooled six-cylinder EFI diesel engineRated powerkw/rpm335/2100Fuel tank capacityL760Hydraulic pump/valveMain pumpVariable load-sensing plunger pimpMain valveLoad-sensing valveManufacturerRexrothAir compressor ModelAtlas CopcoType

Two-stage rotary screw air compressor

Working pressure

bar

20(medium) 25(high)Max. air deliverymm³/min25.4Rotary motor



 Hydraulic rotation unit

Dual motors (Eaton)

Rotation rate

rpm

0-70Max. rotation torque

Nm

3900Feeding method

Motor-driven planetary gearbox + Chain

Fast feeding/lifting rate

m/min

30Feeding rate

m/min

4.7Max. lifting rate

m/min

5.5Feeding force

KN

0-30(adjustable)Lifting force

KN

30Feed



 Length

mm

8500Feeding stroke

mm

5500Feed extension

mm

1600Swing angle

°

Left 95°, right 35°BoomType

mm

Telescopic single straight boom (length 570mm)Tilt angle

°

30°(up), 10°(down)Swing angle

°

Left(cabin side)10°, right 35°Drill pipe changerPipe diameter

mm

102/114Pipe length

m

5Drilling diameter

mm

Φ138-Φ235Drilling depth

m

30Pipe capacity

piece

5+1Hammer specs

5''/6''/7''

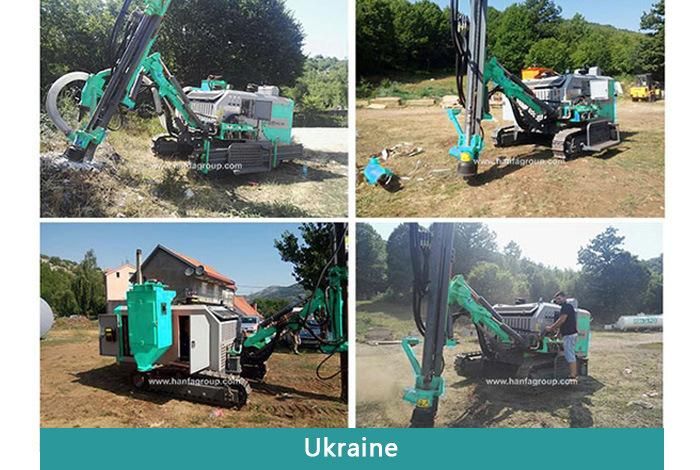

Dust collectorFilter20Collecting methodHydraulic dust collectingDust coverSlidingWorking Site
Company Introduction
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig, horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.

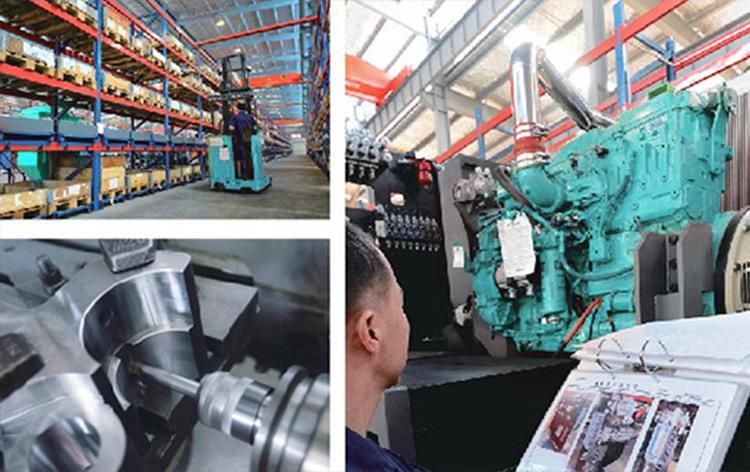

1. More than 30 years of experience

The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.


FAQ
1,Are you trading company or manufacturer?We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.

2,Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.

3,How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.

4,Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.

5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.

6,How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.Our Customers
