Hf054 114-219mm DTH Separated Crawler Mine Drilling Rig
Zhengzhou Hanfa Prospecting Machinery Co., Ltd.- Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Drill Hole Diameter：Ф114-219mm
- Drill Hole Depth：40m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
Base Info
- Model NO.：HF054
- Type：Crawler
- Drilling Diameter：Down-Hole :Ф105-Ф200mm
- Drilling Depth：Down-Hole :200m
- Air Consumption：11 -25mm³,Min
- Propulsion Power：6000kgf
- Moving Speed：2km,H
- Power：Internal Combustion 70kw
- Outer Size(L*W*H)：6900*2200*2200
- Weight：6200kg
- Dust Removol：Wet Type(Optional)
- Gradeability：24°
- Transport Package：Standard Export Packing
- Specification：CE, ISO
- Trademark：HANFA
- Origin：Zhengzhou City, China
- HS Code：843041
- Production Capacity：30sets,Month
Description
Drilling diameter
follow-pipe :Ф114-Ф219mm
Down-hole :Ф105-Ф200mm
Drilling depth
follow-pipe :40m
Down-hole :200m
Working air pressure
1.2-2.4Mpa
Air consumption
11 -25mm³/min
The biggest pipe-rod changing length
3m
Propulsion power
6000kgf
Moving speed
2km/h
Gradeability
24°
Power
internal combustion 70kw
Electric 30kw
Outer size(L*W*H)
(transportation state)6900*2200*2200
Weight
6200kg
Dust removol
Wet type(optional)
Company IntroductionHanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig, horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
1. More than 30 years of experience

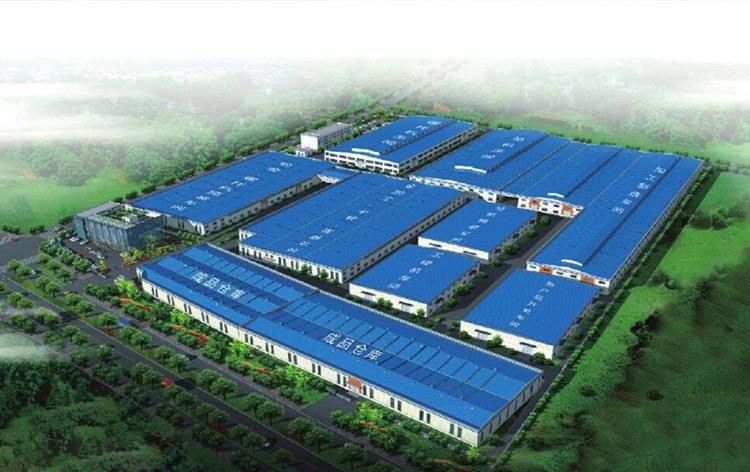

The factory is located in Henan Province, China. We are very welcome to visit our factory. Ifyou need it, we will arrange a pick-up.

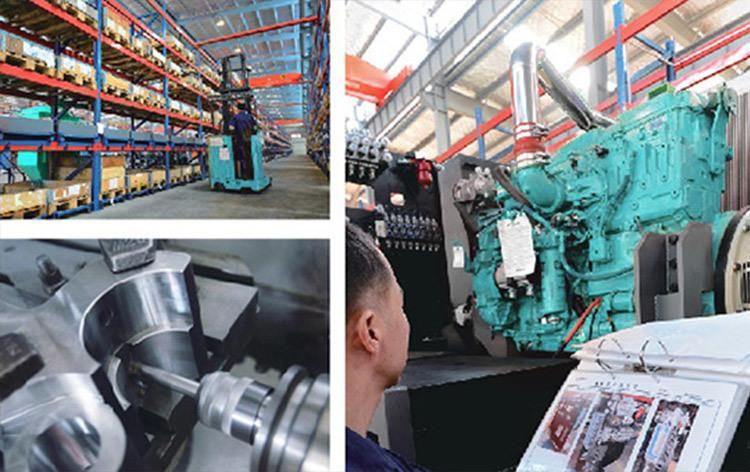

2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
FAQ
1,Are you trading company or manufacturer?We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2,Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6,How long can you deliver the machine?

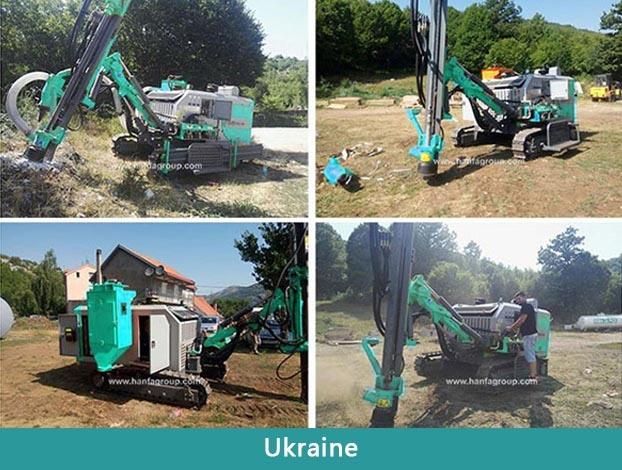

Generally, we can deliver the machine in 7 days.Our Customers
