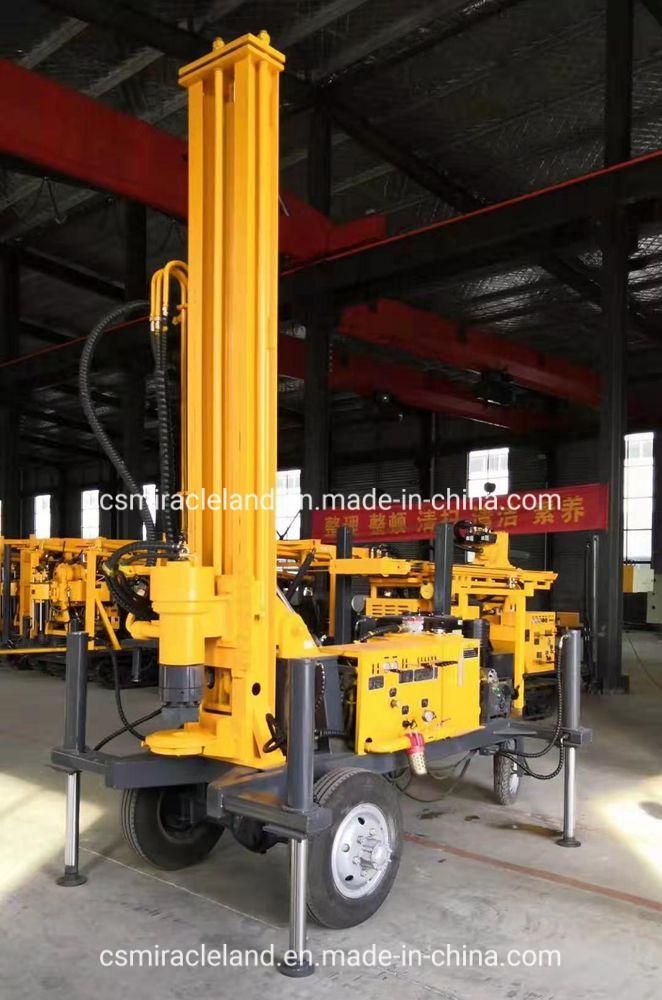

150m Three Wheels Mobile DTH Hydraulic Water Well Drilling Rig

Changsha Miracleland Import & Export Co., Ltd.

Certification：CE, ISO 9001:2008
Condition：New
Motor：Diesel Engine
Drill Hole Diameter：130-219mm
Drill Hole Depth：150m
Bit Type：DTH Bit

Base Info

Model NO.：QY-150
Drilling Way：DTH Drill
Type：Three Wheels Mobile
Structure：Compact Type
Stability：Good
Transport Package：Plastic Film
Specification：150
Trademark：csmiracleland
Origin：Changsha, Hunan, China
HS Code：8430691900
Production Capacity：20 Sets,Month

Description

QY-150 Multi-function crawler hydraulic water well drilling rig technical figuresDrilling depth150mDrilling diameterΦ130-Φ219mmWorking air pressure1.45-2.5MPaAir consumption15-27m3/minDrilling pipe diameterΦ76Length of drill pipe1.5mOne push length1.8mTramming speed0.8km/hRotation speed40-65 rpmRotation torque2600-4000 N.mPower30 HPWeight3 TDimension4000x1450x2050mm Related Products
