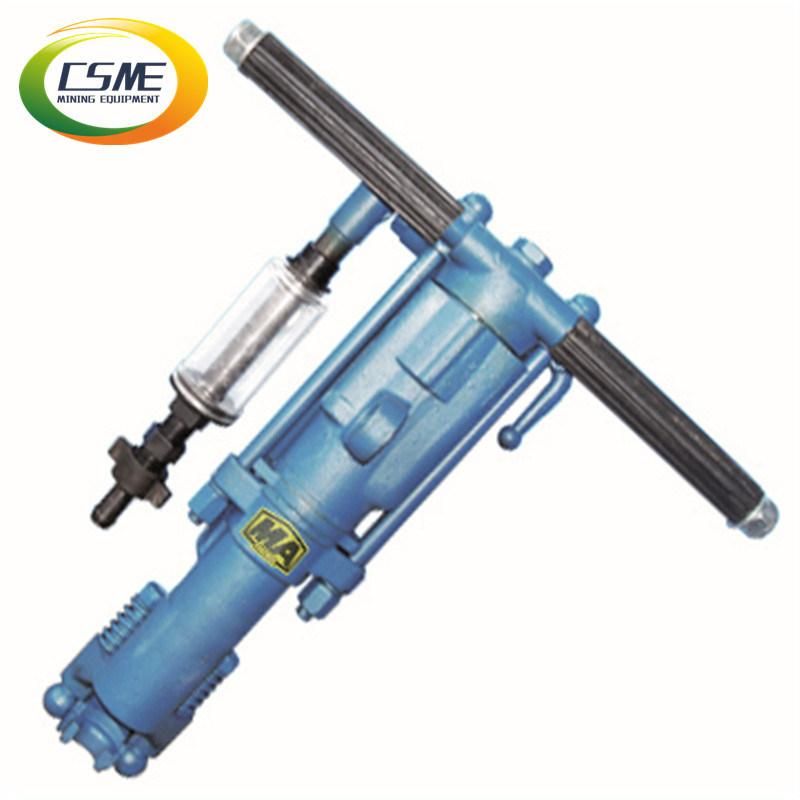

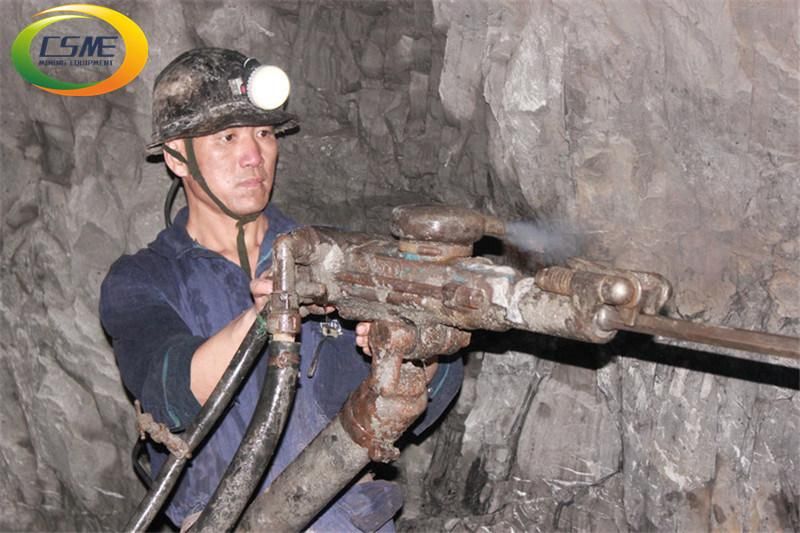

Yt24 Air Leg Rock Drills

Changsha Mining Equipment Co., Ltd.

Warranty：6 Months
Certification：ISO 9001:2000
Condition：New
Bit Type：Cone Bit
Drilling Way：Rotary
Power Type：Pneumatic

Base Info

Model NO.：YT24
Dimension(L*W*H)：Length:678mm
Weight：24kg
Specification：Rotary Drilling Rig
Trademark：CSME
Origin：Changsha, China (Mainland)
HS Code：8467190000
Production Capacity：5000 Piece,Pieces Per Month

Description

YT24 Pneumatic Rock DrillWeight≈24 kgLength678 mmWorking Air Pressure0.4~0.63 MPaCylinder Diameter70 mmPiston Structure Stroke70 mmDrilling Impact Frequency≥31 HzAir Consumption≤ 66.7 L/sAir Hole Inner Diameter19 mmWater Hole Inner Diameter13 mmShank Size22x108±1 mm FY200B Oil InjectorOil Reserve200 L Air Leg TypeFT140BFT140DWeight≈15.6 kg≈13.9 kgLength1687 mm1400 mmMax. Extension Length1250 mm965 mmCylinder inner diameter60 mm60 mm Yt24 Air Leg Rock Drills
