• Model NO.：d100
• Drill Hole Depth：100-150m
• Bit Type：PDC Bits,Alloy Bit
• Drilling Way：Rotary
• Type：Wheels
• Name：Water Well Drill Rig
• L*W*H：80*800*2450mm(Foldable)
• Weight：200~350kg
• Feature：Portable, High Drilling Efficiency
• Transport Package：Wooden
• Specification：SPD-E100, SPD-E150, SPD-E200
• Trademark：speedmade
• Origin：China
• HS Code：8430419000
• Production Capacity：5000pieces,Year

Basic Info.

Model NO. d100 Drill Hole Depth 100-150m Bit Type PDC Bits,Alloy Bit Drilling Way Rotary Type Wheels Name Water Well Drill Rig L*W*H 80*800*2450mm(Foldable) Weight 200~350kg Feature Portable, High Drilling Efficiency Transport Package Wooden Specification SPD-E100, SPD-E150, SPD-E200 Trademark speedmade Origin China HS Code 8430419000 Production Capacity 5000pieces/Year

Product Description

 -PRODUCT BRIEF-

SPD-E100/E150/E200m household electric water well drilling rig
Customizable high-power drilling rigs.
1.It is Civilian electric well drilling rigs are widely used in household/factory domestic water well drilling, farmland irrigation wells, installation of water air conditioners, construction site piling, etc.
2. Technical parameters of folding frame small civil electric drilling rig
Punching range: 60-400 mm;
Drill pipe diameter: 50mm
Drilling depth: 100mm-150mm hole diameter can be punched 70-80 meters; 250mm hole diameter can be punched 30 meters;
Voltage: 220V; /380v
Rotary motor: 4000W;
Speed: 80r/min, can be forward and reverse;;
Overall dimensions of the machine: length 800mm*width 800mm*height 2450mm (foldable)
Weight of the whole machine: 200KG-350KG (including drilling frame/rotating motor/lifting motor).

Product parameters
The new SPD-E100 electric drilling rig two-phase electric three-phase electric model

Rig model	SPD-E100	Drill pipe diameter	42mm
Dimensions	80cm*80cm*245cm	Drill pipe length	1.5m
Weight	200KG	Drill pipe replacement method	Thread button (automatic double thread)
Applicable voltage	220V/380V	Motor Power	4KW
Drilling and crushing method	Impact Rotary	Drilling depth	100M
Pump power	2.2KW	Drilling diameter	0~400mm
lift height	2M	Lifting force	1000KG

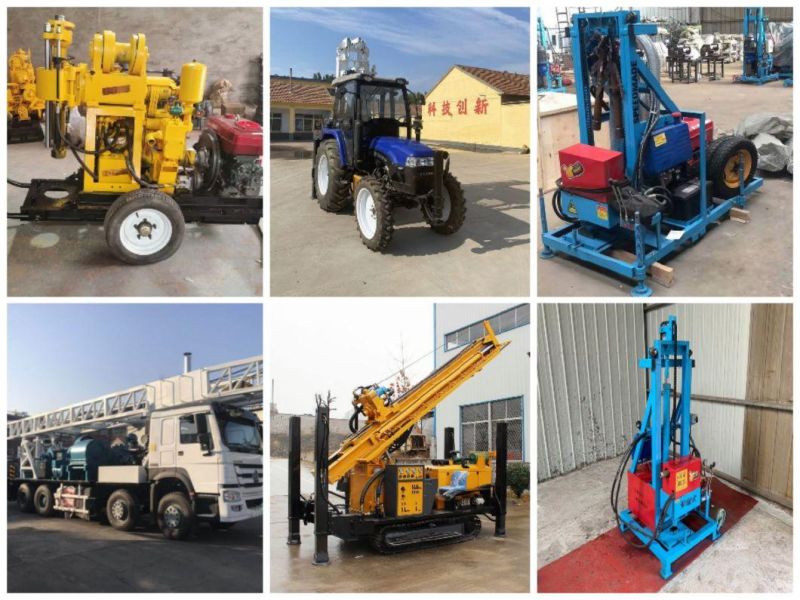

Major equipment

What we offer:

1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4)Our well drilling rig sales in China first, China's largest well drilling rig manufacturer
5) Smooth communication

-COMPANY BRIEF-

We provide high-quality and complete drilling equipment including drilling rigs, drilling tools, mud pumps, DTH drilling tools, rock drilling tools, etc. They are widely used in water wells, farmland irrigation, geological exploration, small pile holes, geothermal, rope coring, Mining etc. Our products are the products of choice for drilling engineers in many countries due to their precise design and efficient drilling in use.

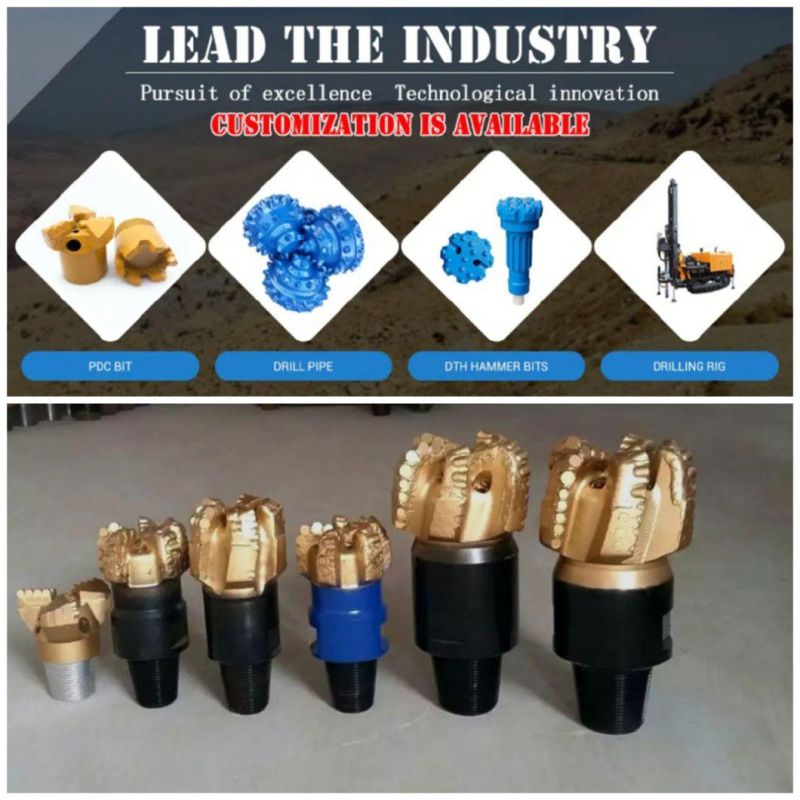

Main product

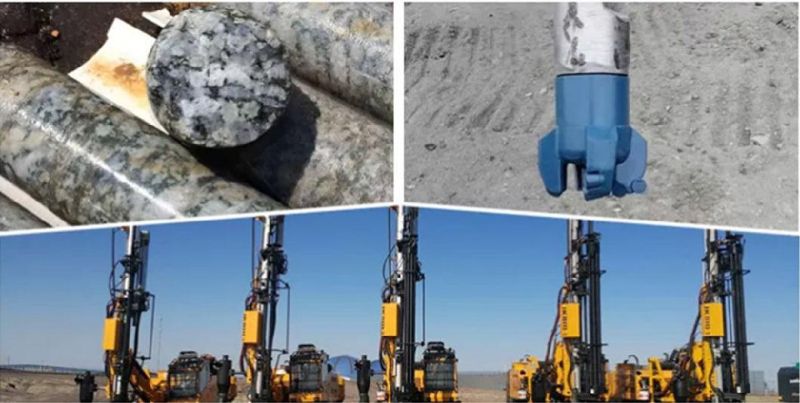

Application

Borehole drilling, Civil Infrastructure, civil engineering, and infrastructure, for rock core drilling, Soil Testing and sampling, geophysical survey companies, Pile foundation drilling, bridge drilling, wind power generation, large-mouth engineering drilling, oil field, metallurgy, mining, geological mineral exploration, water conservancy and hydropower construction, coal mine, mine tunnel drilling, grouting reinforcement engineering, highway, subway, high-speed rail, concrete core sampling, etc, Coring exploration, drilling.

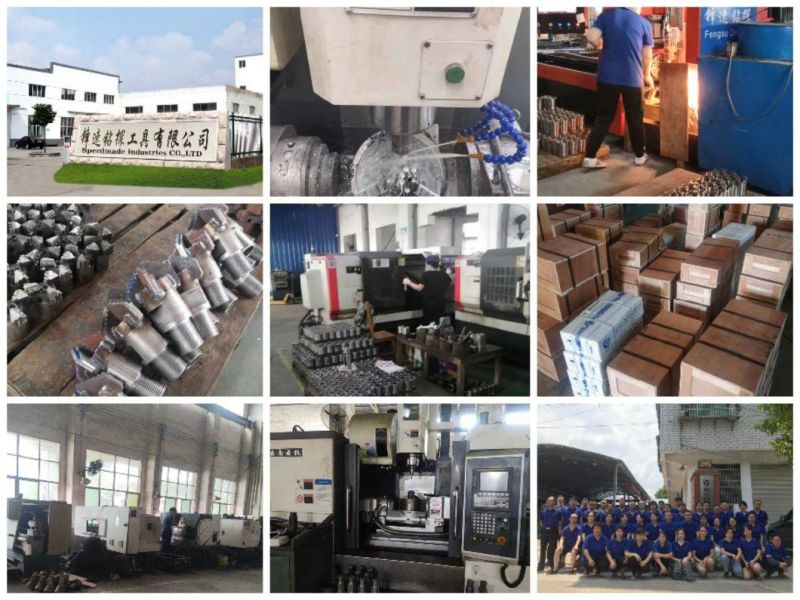

Workshop
Why we achive today′s achievements is because we are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients. Speedmade Industries Co., Ltd will continue committing to provide low cost Rock Drills, Drilling tools, well drilling rigs, high efficiency drilling tools, energy saving and environmental product for domestic and international clients.

-WHY CHOOSE US-

--The first-class engineers of tricone bits and PDC bits
--Advanced technology and Equipment, International standard.
--R&D center for rock drilling tools, high precision CNC machines, SGS&ISO Certified.
--10+ Years & 40+ Countries of service experience.
--Optimized solutions for the various requirements.

DIY customization: please provide your rock formation information or detailed size drawings.

Free samples: some samples can be provided free of charge.

Payment:T/T L/C,D/A,D/P,Western Union,MoneyGram.

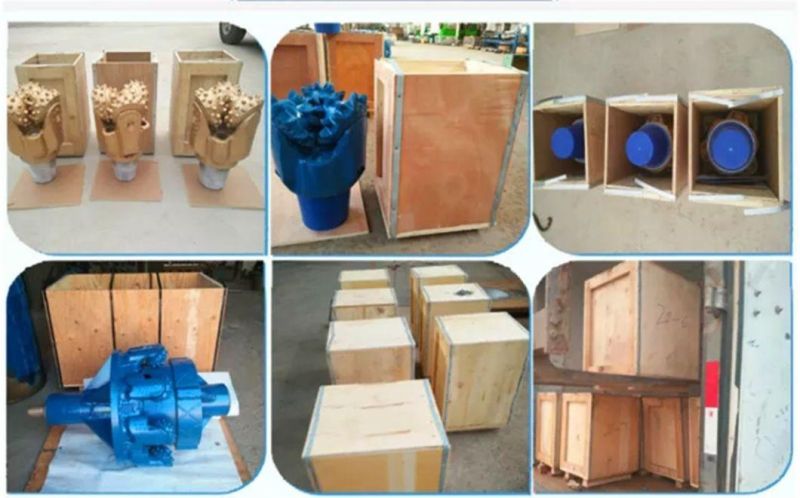

Packaging

Wood Box Fumigation Tray if necessary Other special package can be applied according to customer's need

Delivery

Prepared to deliver within 1 week, if in stock Depends on order quantity, when out of stock Transportation:By sea or air
