Yahe Dl-360 Model Hydraulic Portable Core Drilling Rig for Water Well for 20m Depth

Shandong Yahe Construction Machinery Co., Ltd.
  • After-sales Service：Video
  • Warranty：1 Year
  • Certification：ISO CE
  • Condition：New
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：10-30m

Base Info

  • Model NO.：DL-360
  • Bit Type：Drag Bit
  • Drilling Way：Rotary
  • Type：Crawler
  • Drilling Depth：10-30m
  • Chassis Length：4700
  • Power Type：Electric
  • Power(W)：110kw
  • Color：Yellow Green
  • Usage：Water Well, Ore, Hydraulic Rotary Drilling Ri
  • Product Name：Hydraulic Rotary Drilling Rig of Wheel 360
  • Weight：14t
  • MOQ：1 Set
  • Keyword：Wheel Drilling Rig
  • Drill Diameter：500-1400mm
  • Voltage：380V
  • Application：Building Foundation
  • After-Sales Service Provided：No Overseas Service Provided
  • Tire：825-16
  • Transport Package：According to The Customer′s Requirements
  • Specification：9600*2200*3100mm
  • Trademark：YAHE HEAVY INDUSTRY
  • Origin：Shandong, China (Mainland)
  • HS Code：8430509000
  • Production Capacity：10 Sets,Month

Description

Basic Info.

Model NO. DL-360 Bit Type Drag Bit Drilling Way Rotary Type Crawler Drilling Depth 10-30m Chassis Length 4700 Power Type Electric Power(W) 110kw Color Yellow Green Usage Water Well, Ore, Hydraulic Rotary Drilling Ri Product Name Hydraulic Rotary Drilling Rig of Wheel 360 Weight 14t MOQ 1 Set Keyword Wheel Drilling Rig Drill Diameter 500-1400mm Voltage 380V Application Building Foundation After-Sales Service Provided No Overseas Service Provided Tire 825-16 Transport Package According to The Customer′s Requirements Specification 9600*2200*3100mm Trademark YAHE HEAVY INDUSTRY Origin Shandong, China (Mainland) HS Code 8430509000 Production Capacity 10 Sets/Month

Product Description

Product Details

It is widely praised by customers for its compact size, powerful functions and high cost performance. The drilling rig is equipped with a four-drive power transmission system and a hydraulic expansion center of gravity. The upper body can be rotated 360 degrees stably, which increases the working range and area. The maximum drill rod depth of the drilling rig can reach 20 meters, and the drilling radius is 500-1500MM.
Yahe Dl-360 Model Hydraulic Portable Core Drilling Rig for Water Well for 20m Depth

Parameter
modelDL-360
Working modehydraulic oil cylinder pressure
Drilling diameter (mm)Φ500-Φ1500
drilling depth (m)5-20m
Kelly bar diameter (mm)315
Diamension (mm)9800X2350X3300mm
Total weight (t)13t
Power head max output torque (KN.m)24000N.m
Rotary speed (r/min)10-30RPM
Pressurized oil cylinder max pressure80KN
Pressurized oil cylinder max lifting force80KN
Pressurized oil cylinder max stroke13-20m
Mast sidewards inclination±4°
Mast forwards inclination4°
Max working pressure20Mpa
pilot pressure12Mpa
Travelling speed (km/h)40 km/h
Diesel engine power (KW)85KW,weichai,water cooling ,turbo charger
Is it customizable?Yes

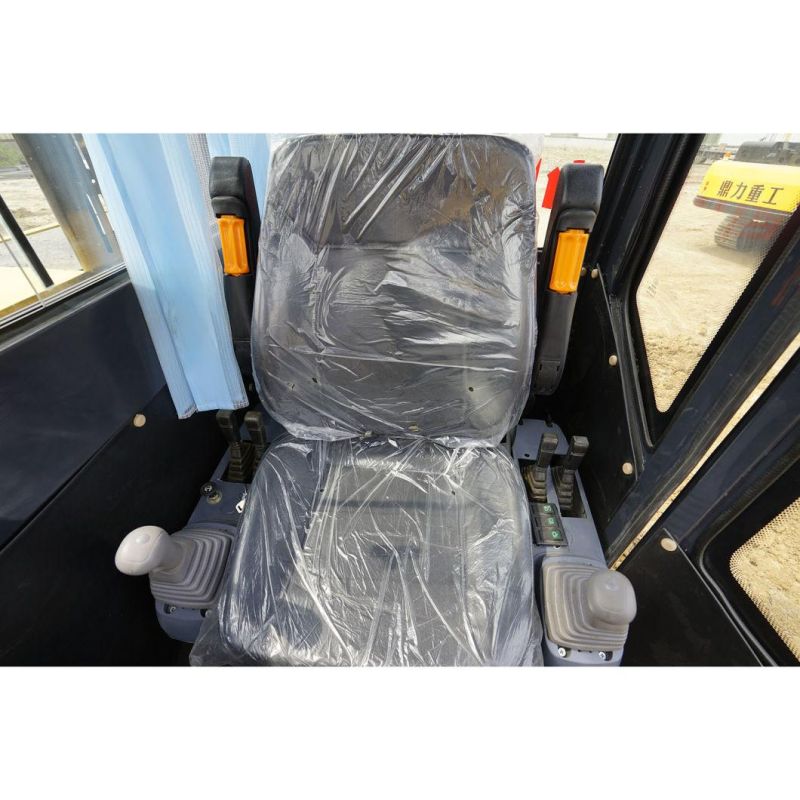

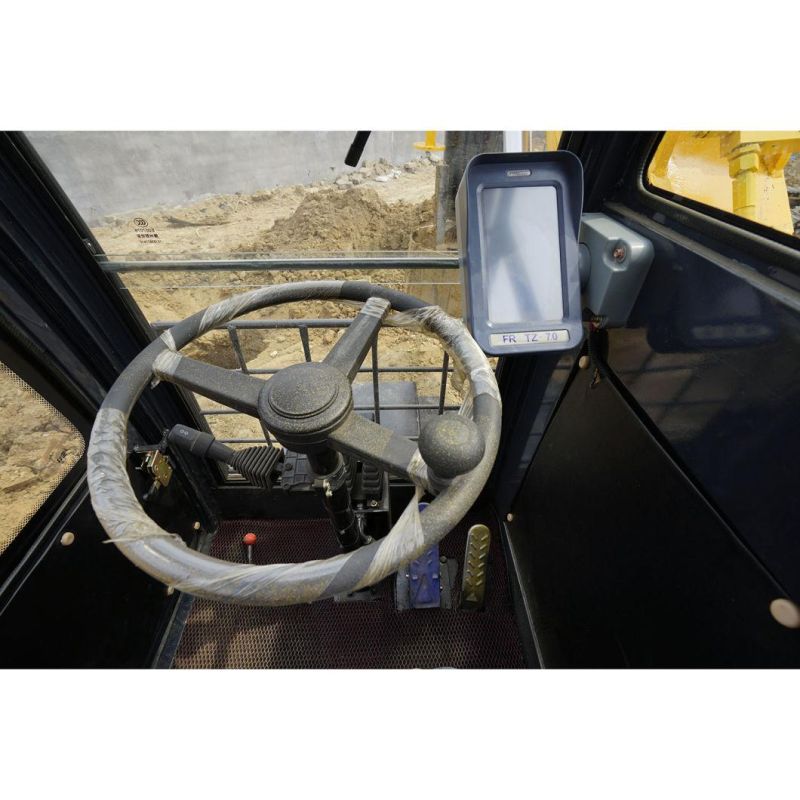

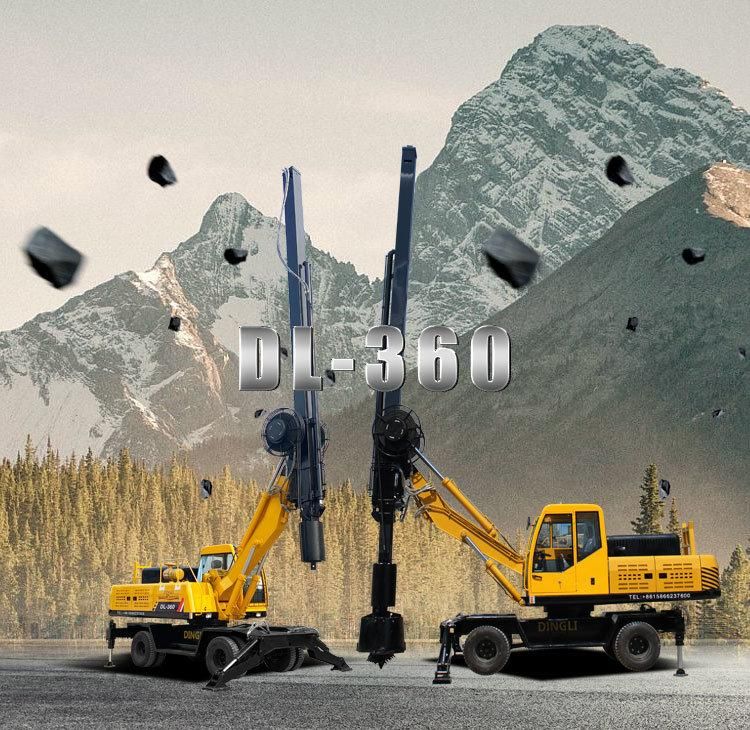

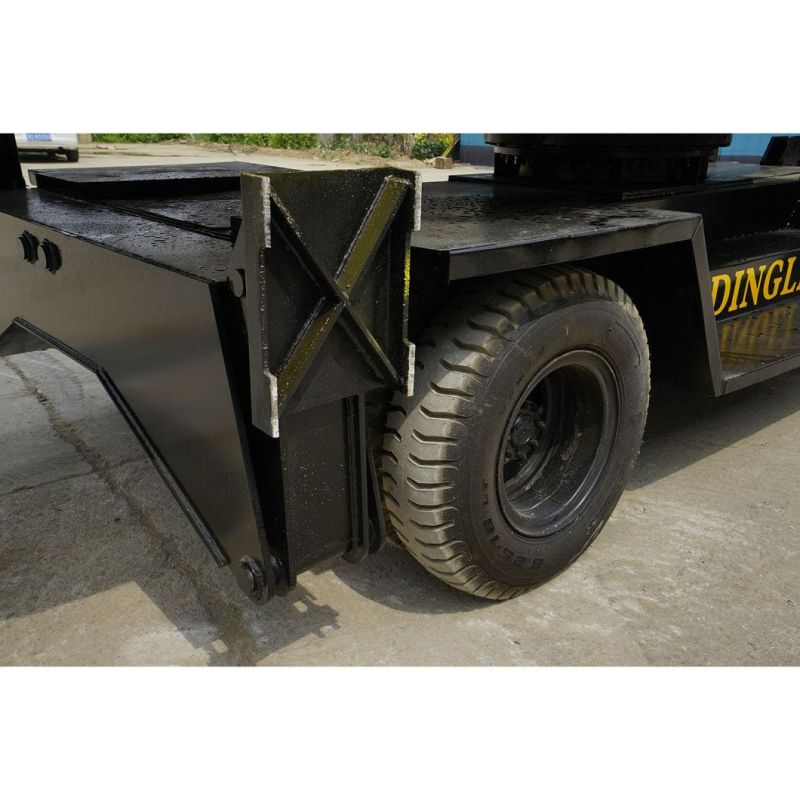

Machine Photos

Yahe Dl-360 Model Hydraulic Portable Core Drilling Rig for Water Well for 20m DepthYahe Dl-360 Model Hydraulic Portable Core Drilling Rig for Water Well for 20m DepthYahe Dl-360 Model Hydraulic Portable Core Drilling Rig for Water Well for 20m DepthYahe Dl-360 Model Hydraulic Portable Core Drilling Rig for Water Well for 20m DepthCertification

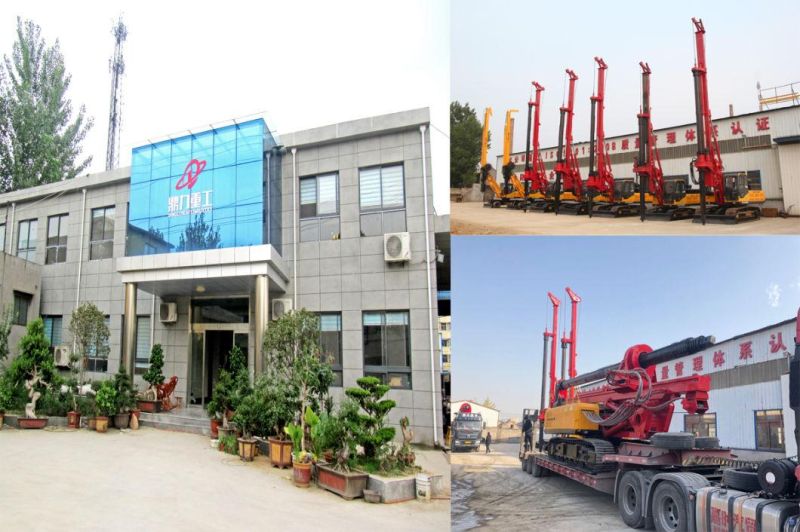

Yahe Dl-360 Model Hydraulic Portable Core Drilling Rig for Water Well for 20m DepthCompany profile

   Shandong Yahe Construction Machinery has been devoted to the development and improvement of rotary drilling rigs for many years, and has passed the CE certification of the European Union. It is widely used in the construction projects of urbanization, metro, viaduct, high-rise buildings, residential buildings and other fields. Rotary drilling rig is highly praised by customers at home and abroad for its high construction efficiency, energy saving, environmental protection and reliable performance. The equipment has been exported to more than 10 countries and regions overseas, such as Australia, Saudi Arabia, Myanmar, Bangladesh and Sudan, and has become a pile foundation facility serving global engineering construction and "new urbanization". Optimum equipment for engineering.

Yahe Dl-360 Model Hydraulic Portable Core Drilling Rig for Water Well for 20m Depth
Exhibition
Yahe Dl-360 Model Hydraulic Portable Core Drilling Rig for Water Well for 20m Depth
Customer photo
Yahe Dl-360 Model Hydraulic Portable Core Drilling Rig for Water Well for 20m Depth

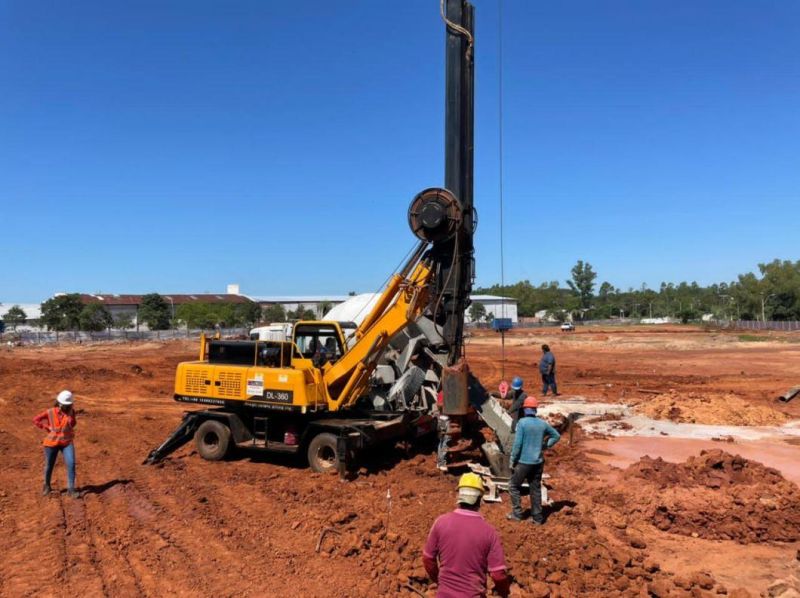

 Working photo
Yahe Dl-360 Model Hydraulic Portable Core Drilling Rig for Water Well for 20m Depth
 FAQ

1.Q: Are you a manufacturer?
 A: Yes, we are a professional rotary drilling rig  manufacturer.
2.Q: What does your company produce?
 A: The main products of our company include rotary drilling rig.
3.Q: How about your delivery time?
 A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.
4.Q: What methods of payment do you accept?
A: We accept T/T, L/C.
5.Q: Do you offer any deals or discounts?
 A: Yes, price depends on different quantity, different quantity will give you different price
