Fy-400 Crawler Full Hydraulic Top Drive DTH Hammer Water Well Drilling Rig
Changsha Miracleland Import & Export Co., Ltd.- Certification：CE, ISO 9001:2008
- Condition：New
- Motor：Diesel Engine
- Drill Hole Diameter：146-350mm
- Drill Hole Depth：400m
- Bit Type：DTH Bit
Base Info
- Model NO.：FY-400
- Drilling Way：DTH Drill
- Type：Crawler
- Usage：Coal, Ore, Water Well
- Quality：High Quality
- Transport Package：Plastic Film
- Specification：400
- Trademark：FY
- Origin：China
- HS Code：8430412900
- Production Capacity：10 Sets,Month
Description
FY-400 Multi-function crawler hydraulic water well drilling rig technical figuresDrilling depth 400m Drilling diameter Φ140-Φ350mm Working air pressure 1.7-3.5MPa Air consumption 17-35m3/min Drilling pipe diameter Φ89, Φ102 Length of drill pipe 1.5m,2.0m,3.0m,6.0m One push length 6.6m Tramming speed 2.5km/h Climbing ability (Max.) 30° Ground clearance (Min.) 250mm Machine lifting capacity 24T Rotation speed 45-115 rpm Rotation torque 8500-10000 N.m Power 95 KW Weight 10T Dimension 5200x2000x2780mm
Related images

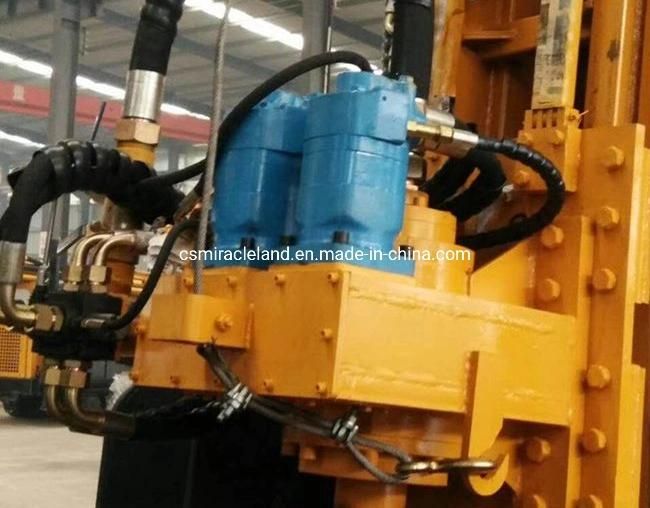

Double motor to provide power, large torque, durability, maintenance cost is lower.
Large lifting capacity hydraulic winch is equipped on the rig, which is convenient to lift the drill pipe, casing tubes, drilling tools and etc.
The welding machine can be equipped on the rig, which is used to weld the single use casing tubes during drilling.
Hydraulic water pump is the optional configuration for the customers, the hydraulic water pump can be used to clean the rig and for foam drilling.

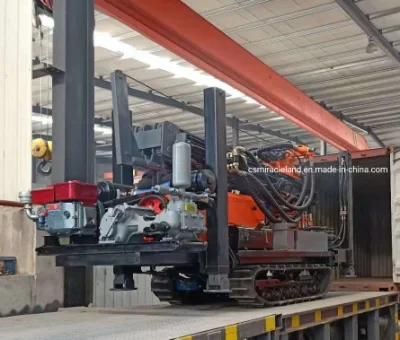

Large stroke hydraulic legs for rig transport makes loading and unloading without lifting equipment, equipment can be seif-loading.

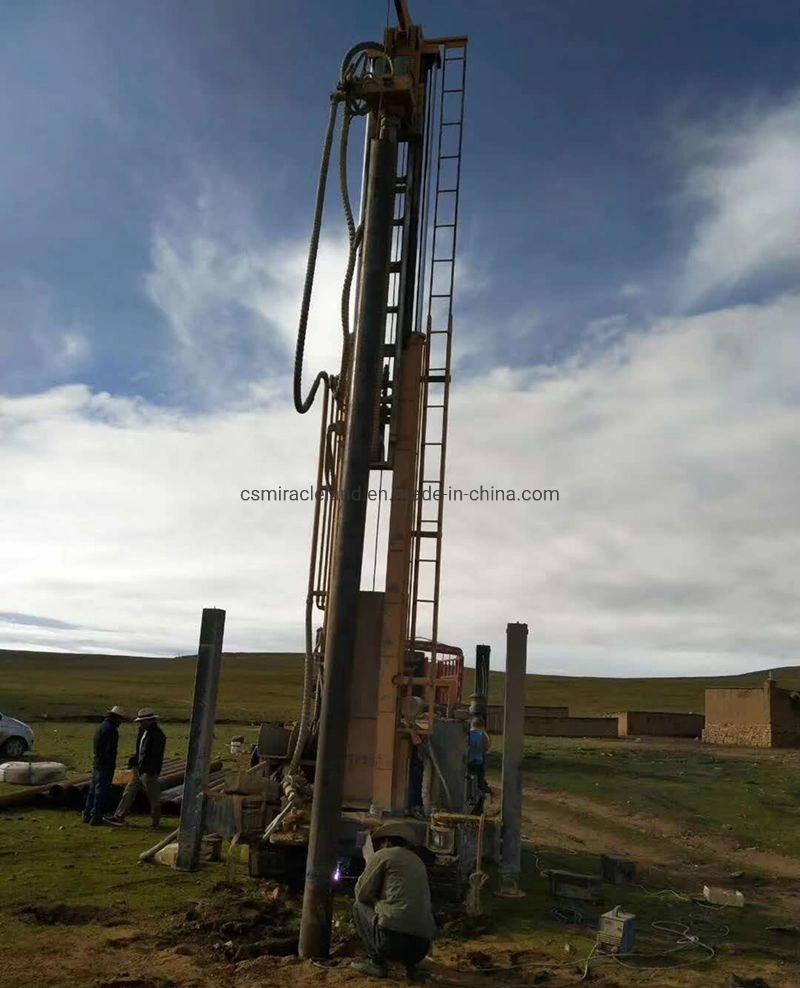

6.6m height hydraulic drill tower, which is convenient for pushing 6m length casing tube, improve drilling efficiency.

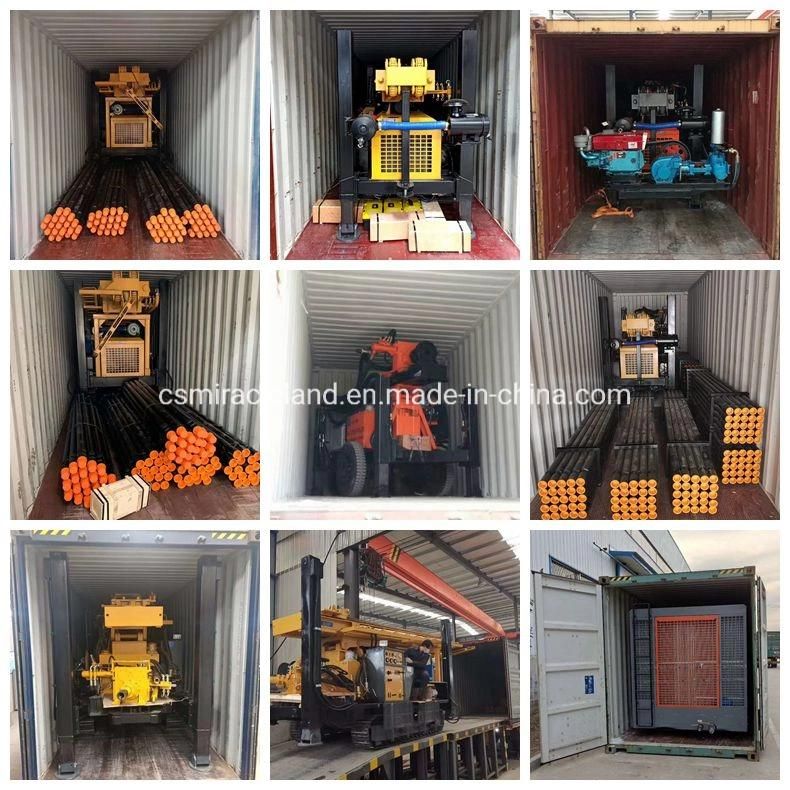

Packaging & Shipping:
