Portable Crawler DTH Air Hammer Rock Water Well Drilling Rig with Mud Pump Integrated

Changsha Miracleland Import & Export Co., Ltd.
  • Condition：New
  • Motor：Diesel Engine

Base Info

  • Model NO.：FYX-180
  • Drill Hole Diameter：130-254mm
  • Drill Hole Depth：180m
  • Bit Type：DTH Bit
  • Drilling Way：DTH Drill
  • Type：Crawler
  • Power：55kw
  • Stability：Good
  • Transport Package：Plastic Film
  • Specification：180
  • Trademark：csmiracleland
  • Origin：Changsha, Hunan, China
  • HS Code：8430412900
  • Production Capacity：30 Sets,Month
  • Package size per unit product：380.00cm * 150.00cm * 240.00cm
  • Gross weight per unit product：4500.000kg

Description

FYX-180 Multi-function crawler hydraulic water well drilling rig technical figuresDrilling depth180mDrilling diameterΦ130-Φ254mmWorking air pressure1.7-2.5MPaAir consumption15-27m3/minDrilling pipe diameterΦ76, Φ89Length of drill pipe3mOne push length3000mmTramming speed2.5km/hClimbing ability (Max.)30°Ground clearance (Min.)250mmRotation speed48-70 rpmRotation torque4200-5600 N.mPower55 KwWeight4.5 TDimension3800x1500x2350mm

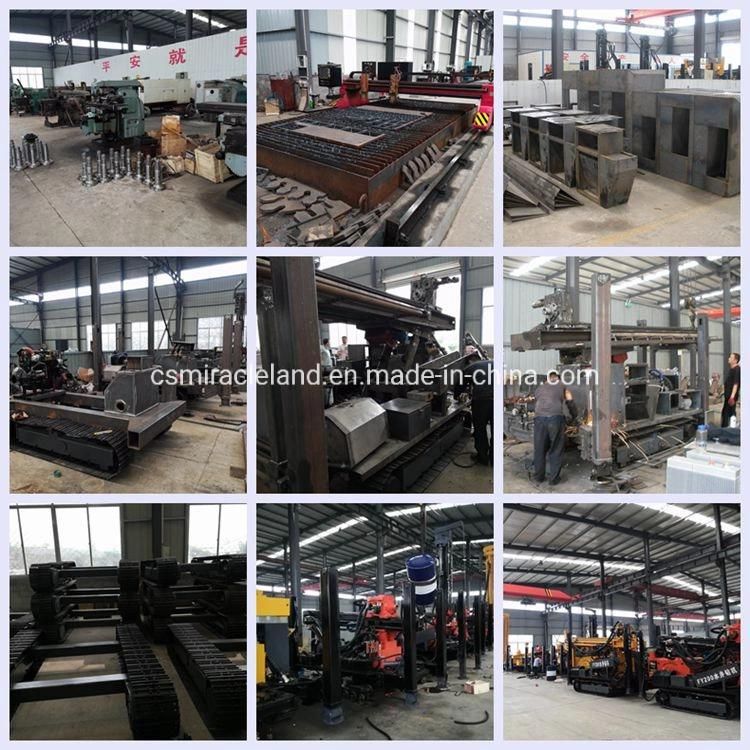

Production Flow:

Portable Crawler DTH Air Hammer Rock Water Well Drilling Rig with Mud Pump Integrated

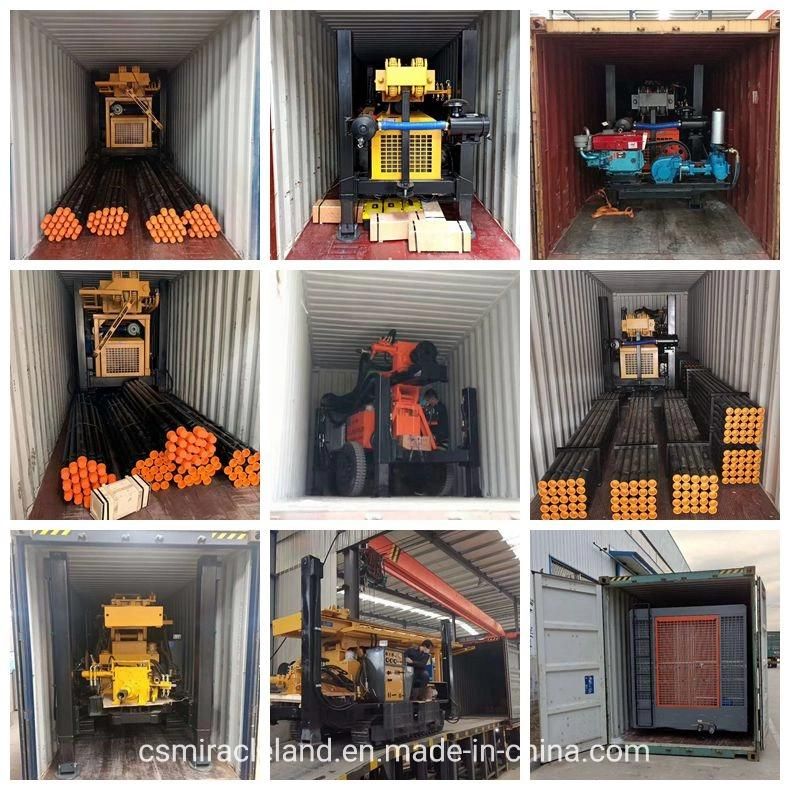

Packaging & Shipping:

Portable Crawler DTH Air Hammer Rock Water Well Drilling Rig with Mud Pump Integrated
