• Model NO.：DFS-80
• Type：Rotary Drilling Rig
• Power：56kw
• Drilling Hole Diameter：800mm
• Stratum：Soil, Gravel, Weathered Stone, Concrete
• Dimension：7700*2000*2900mm
• Power Type：Diesel
• Transport Package：as Requirement
• Specification：15m drilling depth
• Trademark：DEFY
• Origin：China Mainland
• Production Capacity：50sets,Month

Basic Info.

Model NO. DFS-80 Type Rotary Drilling Rig Power 56kw Drilling Hole Diameter 800mm Stratum Soil, Gravel, Weathered Stone, Concrete Dimension 7700*2000*2900mm Power Type Diesel Transport Package as Requirement Specification 15m drilling depth Trademark DEFY Origin China Mainland Production Capacity 50sets/Month

Product Description

15 Meters depth Small auger piling machine with All-in-one structure

I. General Description
DFS-80 is designed and manufactured by our factory with latest technology, awarded by National Patent Product. It is very well received by customers for high efficiency and excellent performance.

II. Features:
1. Full Hydraulic controlling system.
2. Hydraulic stabilizer legs.

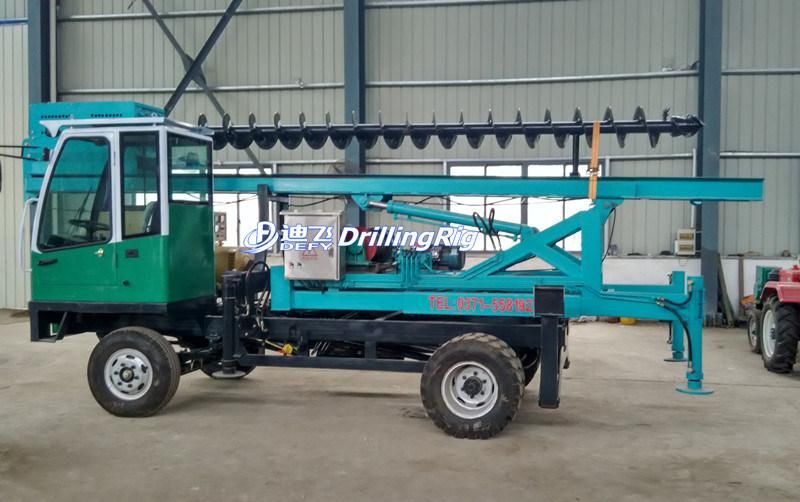

3. People can drive to move like a car, as you can see in the picture.
4. Easy operation, people without experience can handle it in short time.
5. Reasonable structure, flexible transport, remote control.


 III. Technical Parameters:

Drilling diameter(mm)	200-800
Max. Drilling depth(m)	15
Wheel tread(mm)	2000
Wheel base(mm)	3400
Walking way	Rear Wheel Drive/Four Wheel Drive
Brake method	Air brake
Turnaround mode	Mechanical/Hydraulic
Running speed(Km/h)	40
Power(Kw)	56
Nominal Voltage(V)	380
Generator power(Kw)	30
Power supply(V)	Tractor&External 380V
Hydraulic working pressure(Mpa)	20
Frame Rotation Angle	270°
Weight(T)	7.1
Dimension(mm)	7700*2000*2900


Complete list of drilling rig and drilling tools for your project. For more details, please kindly send us an inquiry or contact our sales people directly. Thank you!
