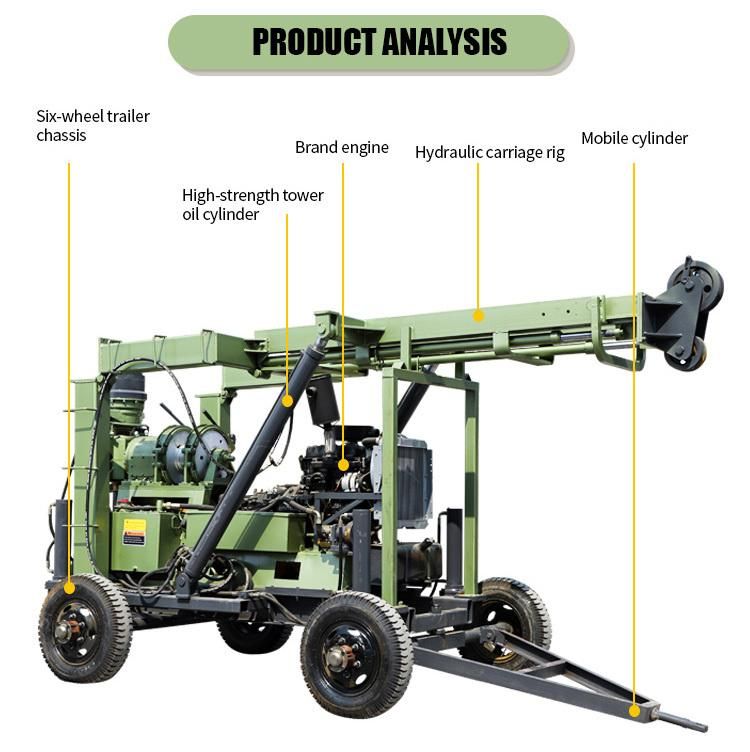

600m Depth Trailer Mounted Bore Well Drilling Machine Price (XY-3)
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Support
- Warranty：1 Year
- Certification：ISO 9001:2000
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：250-300mm
Base Info
- Model NO.：XY-3
- Drill Hole Depth：150-200m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
- Type：Crawler
- Part Name：Water Well Drilling Rig
- Model Number：Xy-3
- Drilling Depth：600m
- Maximum Open Hole Caliber：300mm
- End Hole Caliber：75mm
- Drill Rod Caliber：60mm
- Drilling Angle：90~65
- Diesle Engine Power：76 HP
- Price：Factory Price
- Dimension：2500*900*1800mm
- Drill Weight (Without Power)：1600kg
- Spindle Stroke：600mm
- Spindle Inner Diameter：96mm
- Lifting Capacity：6000kg
- Spindle Speed：Forward 30-1050r,Min
- Transport Package：Wooden Case
- Specification：SGS
- Trademark：HW
- Origin：Shandong, China
- HS Code：8430412100
- Production Capacity：1000-2000 Sets,Month
