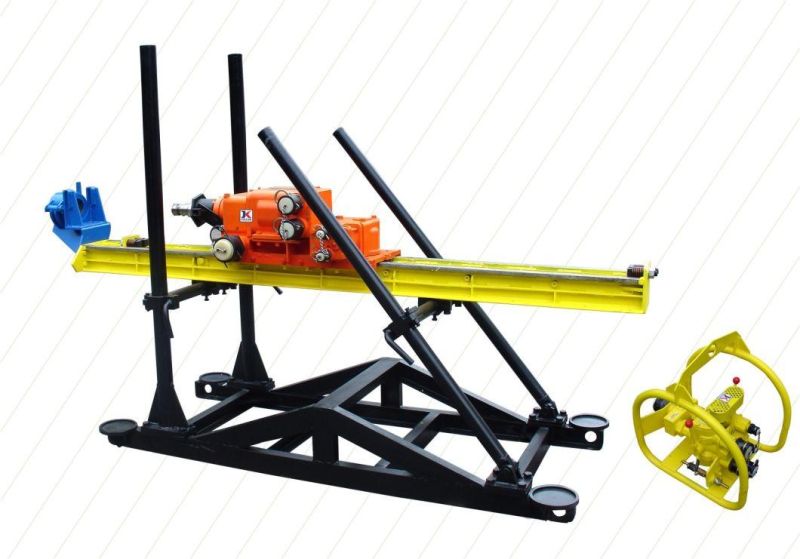

Zqj-300/6 Pneumatic Bracket Drilling Machine Is Widely Used in Coal Mine Projects The Feeding Device Take Independent Motor, Stronger Feeding Power
Jikai(Hebei)Mechatronics Technology Co., Ltd.- After-sales Service：Quick After-Sales Service
- Warranty：1 Year
- Certification：CE, ISO 9001:2000, ISO 9001:2008, Atex
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：<100mm
Base Info
- Model NO.：ZQJ-300,6
- Drill Hole Depth：>300m
- Bit Type：Cone Bit
- Drilling Way：Rotary
- Transport Package：International Carton
- Specification：ISO 9001: 2000, Atex
- Trademark：JIKAI
- Origin：Shijiazhuang City Hebei Province China
- Production Capacity：5000pieces ,Year
Description
Performance Parameters of The Machine
Parameter ZQJ-300/6 Rated torque (N.m) 300 Rated rotate speed (r/min) 195 Max. drilling depth (m) 75 Rated output power (kW) 6 Idle rotate speed (r/min) 500 Stall torque (N.m) 510 Driving force (kN) 14 Drilling speed(mm/min) 500 Idle Pushing Speed(mm/min) 5500 Idle back speed(mm/min) 5500 Driving stroke (mm) 1200 Guide rail length(mm) 1550 Idle pushing resistance(N) 56.5 Drilling Inclination( degree) ±30 Min. working height(mm) 910 Max. working height(mm) 1450 Loading Air consumption (m3/min) 10 Noise (dB(A)) 110 Main frame Weight(kg) 150 Machine weight (with bracket )(kg) 465 OUTSIDE SIZE:(L×W×H)(mm) 2540×845×1775
At present, our company has built an advanced R&D system:Since 2007, the company has realized the network and digitization of R&D and design work;3D solid design and finite element analysis;Implemented product data lifecycle management (PLM);project workflow management; the integration of PLM system and ERP system;the paperless application of drawings and all technical data.
For example: 3D integral casting scraper conveyor not only greatly improves the service life of the scraper, but also promotes the intelligent construction of fully mechanized mining;Anti-gas and anti-groundpressure automatic drilling rig, equipped with remote control and video monitoring system, with real-time data collection functions, with one-key drilling function and anti-stucking functions, suitable for groundpressure prevention;The national III standard explosion-proof diesel engine monorail crane locomotive realizes multi-point direct transportation of hydraulic supports (48T); the drilling and bolting jumbo can drill with one key, and realize the automatic construction of anchor rods and anchor cable holes.
All products have corresponding quality control standards, which are completed simultaneously with design drawings and processes, and are recorded in the information management system.
Each product is marked with a unique permanent laser identification code when it is submitted for inspection. The inspection items and records correspond to each identification code, which realizes:1. Unique product quality identification; 2. Traceability of product quality problems; 3. Lifelong responsibility for product quality; 4. The basis for improvement is accurate and sufficient, and the improvement effect is tracked in place.
In recent years, we have been rated as Hebei Provincial Enterprise Technology Center, Shijiazhuang Coal Mining Machinery Engineering Technology Research Center, Hebei Coal Mine Safety Equipment Engineering Technology Research Center (in preparation), Hebei Coal Mine Safety Equipment Inspection and Testing Platform (in preparation), The public technology research and development platform for coal mining machinery and equipment of the Ministry of Commerce has been fully affirmed by relevant departments in terms of product research and development, quality inspection, engineering technology transformation, and public services.
In the future, the engineering laboratory will obtain income through technical patents and paid use of new products, undertaking technical engineering research and development tasks for coal mine safety equipment industry, government scientific research funding, technical training and technical services, etc. "The virtuous cycle operation mode, and strive to achieve the sustainable development of the laboratory.
At present, our company has built an advanced R&D system:Since 2007, the company has realized the network and digitization of R&D and design work;3D solid design and finite element analysis;Implemented product data lifecycle management (PLM);project workflow management; the integration of PLM system and ERP system;the paperless application of drawings and all technical data.For example: 3D integral casting scraper conveyor not only greatly improves the service life of the scraper, but also promotes the intelligent construction of fully mechanized mining;Anti-gas and anti-groundpressure automatic drilling rig, equipped with remote control and video monitoring system, with real-time data collection functions, with one-key drilling function and anti-stucking functions, suitable for groundpressure prevention;The national III standard explosion-proof diesel engine monorail crane locomotive realizes multi-point direct transportation of hydraulic supports (48T); the drilling and bolting jumbo can drill with one key, and realize the automatic construction of anchor rods and anchor cable holes.
All products have corresponding quality control standards, which are completed simultaneously with design drawings and processes, and are recorded in the information management system.Each product is marked with a unique permanent laser identification code when it is submitted for inspection. The inspection items and records correspond to each identification code, which realizes:1. Unique product quality identification; 2. Traceability of product quality problems; 3. Lifelong responsibility for product quality; 4. The basis for improvement is accurate and sufficient, and the improvement effect is tracked in place.
In recent years, we have been rated as Hebei Provincial Enterprise Technology Center, Shijiazhuang Coal Mining Machinery Engineering Technology Research Center, Hebei Coal Mine Safety Equipment Engineering Technology Research Center (in preparation), Hebei Coal Mine Safety Equipment Inspection and Testing Platform (in preparation), The public technology research and development platform for coal mining machinery and equipment of the Ministry of Commerce has been fully affirmed by relevant departments in terms of product research and development, quality inspection, engineering technology transformation, and public services.In the future, the engineering laboratory will obtain income through technical patents and paid use of new products, undertaking technical engineering research and development tasks for coal mine safety equipment industry, government scientific research funding, technical training and technical services, etc. "The virtuous cycle operation mode, and strive to achieve the sustainable development of the laboratory.
