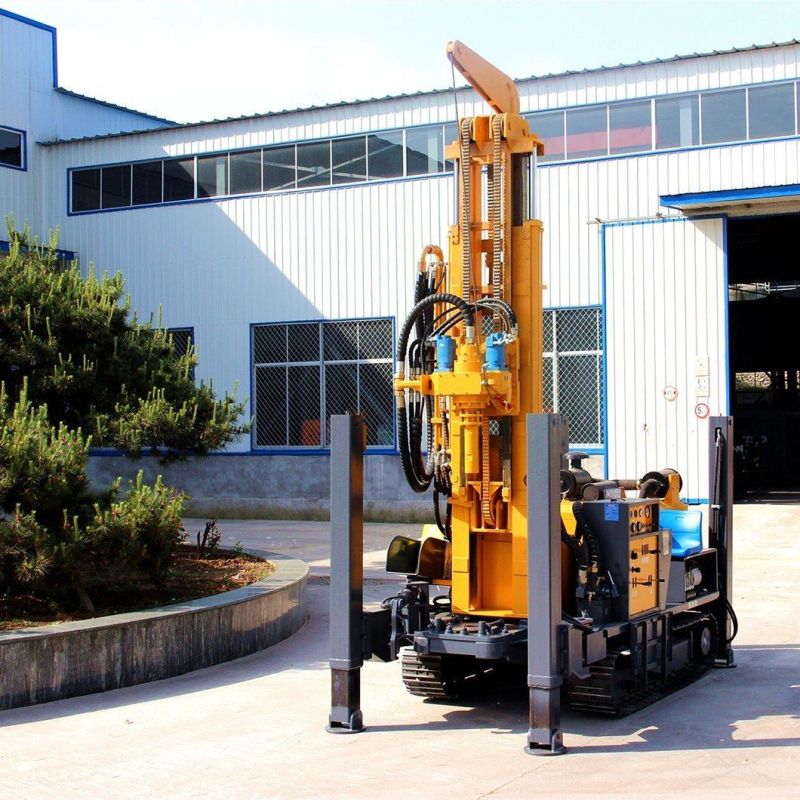

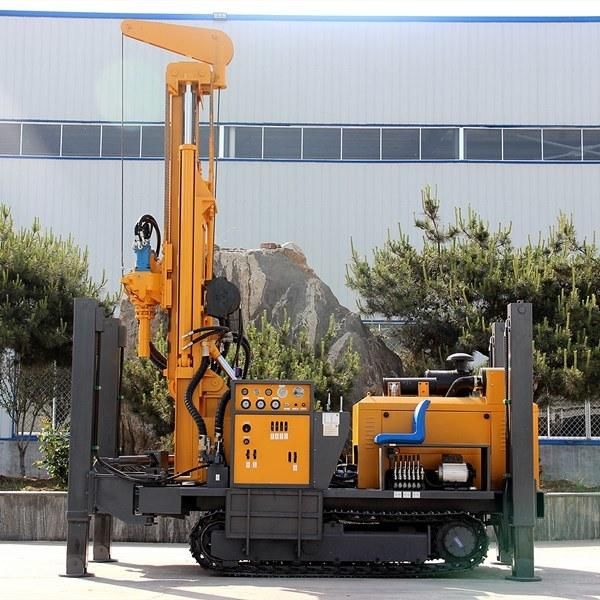

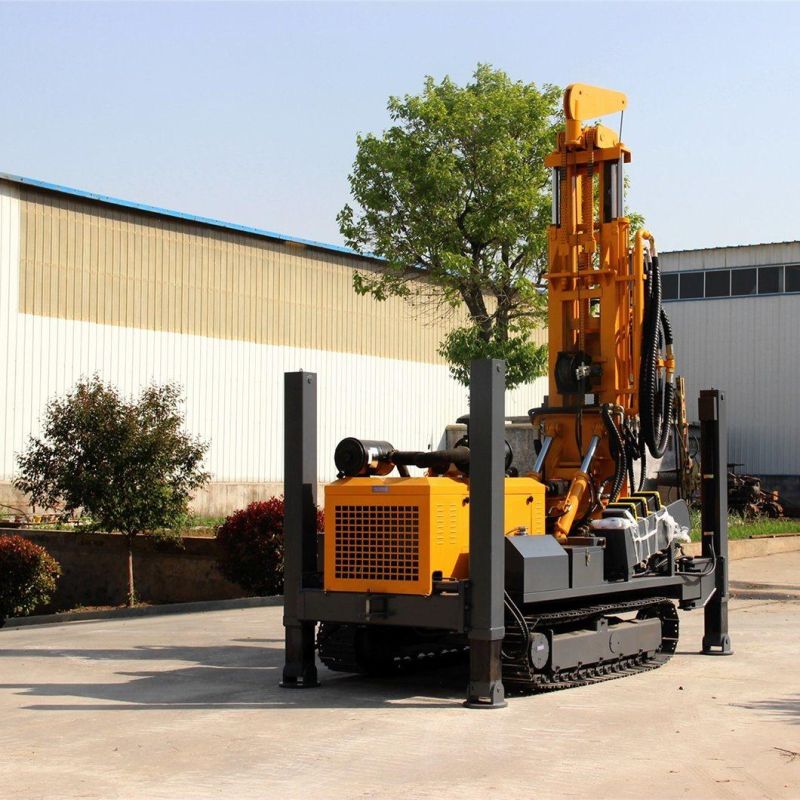

China Manufacture 300m Water Well DTH Drill Rig Machine for Sales
Zhejiang Miningwell Supply Chain Management Co., Ltd.- After-sales Service：Video Technical Support, Online Support, Spare PAR
- Warranty：1 Year
- Certification：ISO9001,CE
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：150-200mm
Base Info
- Model NO.：MW300
- Drill Hole Depth：100-150m
- Bit Type：Diamond Bit, Cone Bit, Drag Bit
- Drilling Way：Impactor
- Type：Crawler
- Dimension(L*W*H)：4100*1950*2600mm
- Air Capacity：17-35 M3,Min
- Swing Speed：40-70 Rpm
- Drilling Pipe Length：1. 5 M,2.0 M.3m
- Key Selling Points：Low Maintenance Cost
- Equipped Capacity：75.8kw
- Diameter of Drill Rod：76mm,89mm.102mm
- Transport Package：Carton
- Specification：4100*1950*2600mm
- Trademark：MININGWELL
- Origin：Zhejiang, China
- Production Capacity：45PCS Per Month
Description
Technical Parameters of FY300 Crawler type water well drilling rig
type
MW300
The weight
9T
Dimension
4100*1950*2600mm
The hole diameter
140-325mm
Drilling depth
300m
One-time advance length
6.6m
Walking speed
2.5KM/H
Climbing angles
30
Power
85KW
Using air pressure
1.7-3.3MPA
Air consumption
17-35
Drill pipe length
1.5m 2.0m 3.0m 6.0m
Drill pipe diameter
89mm,102mm,
Rig lifting force
20T
Swing speed
55-115rpm
Swing torque
6200-85000N.m
