• Drilling Way：Impactor
• Model：Q-100
• Voltage：380V
• Air Pressure：0.6-0.8MPa
• Drilling Diameter：65-130mm
• Drilling Depth： ≥30m
• Transport Package：Wood Box
• Specification：470kg
• Trademark：ZT
• Origin：China
• Production Capacity：100sets,Mouth

Basic Info.

Drilling Way Impactor Model Q-100 Voltage 380V Air Pressure 0.6-0.8MPa Drilling Diameter 65-130mm Drilling Depth  ≥30m Transport Package Wood Box Specification 470kg Trademark ZT Origin China Production Capacity 100sets/Mouth

Product Description

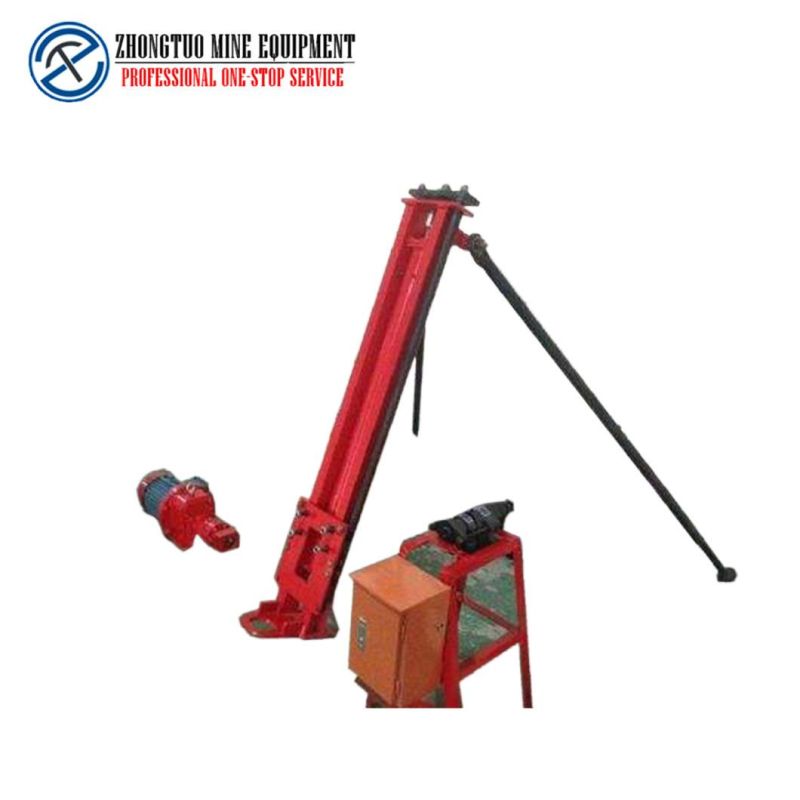

Electric DTH Water Well Rock Drill Hydraulic Drilling Rig Machine
1 aircraft structure is reasonable, the use of light.
2 auxiliary time is short, low cost characteristics.


QD-100 Electric DTH Drill is a new, efficient and semi-mechanized advanced rock drilling equipment designed by our own factory.
Application of DTH Drill:
Portable DTH Drill Widely applicable to mining, water conservancy, highway, construction, blasting and other projects, the host can be directly water injection operations, blast hole drilling machine particularly suitable for drilling when the soil tunneling, can replace ordinary stones.


model	Q-100
Voltage	380V
Air pressure	0.6-0.8mpa
Drilling diameter	65-130mm
Motor Power	4.0kw
Drilling direction	0°-90°
Hose Diameter	38mm
Drilling depth	≥30m
Cylinder advance stroke	1000

Opening, the first start the motor, to be transferred after the normal operation of the handle to pull the handle. So that it gets the appropriate propulsion, and then pull the handle to control the impactor to the working position. After drilling, you can open the water valve, so that gas and water mixture to maintain a proper ratio. The normal Electric DTH Drill  work. When the pushing work moves the lever to contact with the holder, a drill pipe is drilled. To stop the motor running and stop the blower to send air, water, the fork inserted into the drill holder drill groove, the motor reversing slide back, so that the joint and the drill pipe disconnected, then the second drill pipe, press Here you cycle to work continuously.
FAQ:
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.

Q2: What the exactly address of your factory?
A2:  No.27,Beichen Village Industrial Park, Weiyang District, Shaanxi Province China.
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equirement.

Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)

Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.

Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of freight.

Q11: What is your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.

Our Company Information:


We have been focusing on high-quality mechanical equipment and construction products for more than 20 years. Especially have rich experience at mining equipment, main products include:

Ultra Large Rock Splitter
Submersible Drilling Rig
Spraying Machine
Grinding Machine

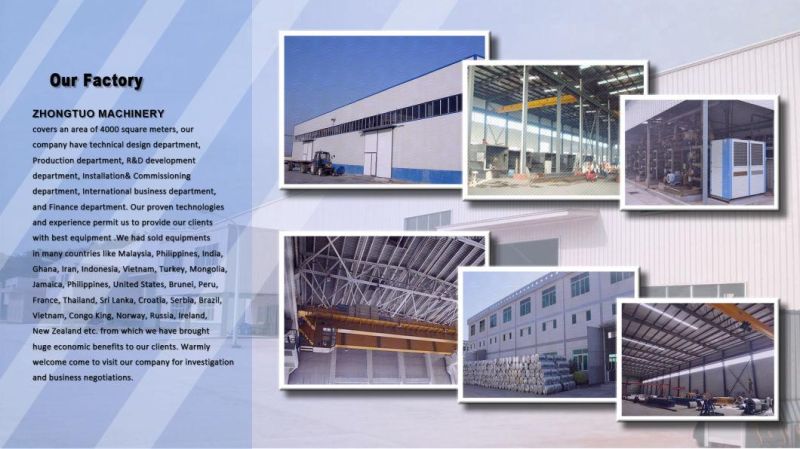

About Our Factory:


About the products:



Packing and Shipping:


Purchase Process:

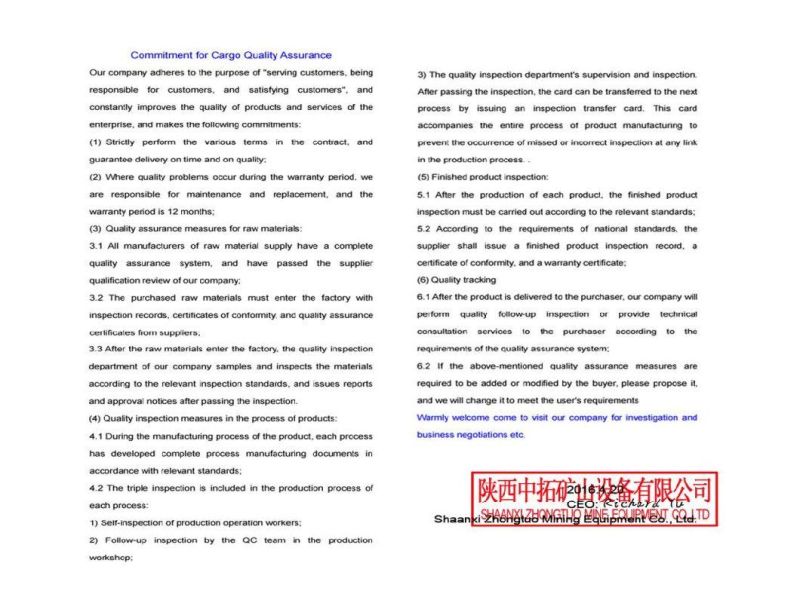

About the Quality:


Others:




Why you choose us:

1. We are a real factory offering products and provide free technical advice.
2. Company in business for many years and served Over 50 countries customers.
3. All machine with CE, ISO,SGS certificate. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
