Convenient Operation and Maintenance Mqt-85/1.8 Anchor Drilling Machine Pneumatic Roof Bolter
Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.- Certification：CE, TUV, BV
- Condition：New
- Motor：Pneumatic
- Drill Hole Diameter：<100mm
- Drill Hole Depth：<100m
- Bit Type：Rock Anchor Bolt
Base Info
- Model NO.：MQT-85,1.8
- Drilling Way：Rotary
- Working Air Pressure：0.4-0.63 MPa
- Free Running Speed：600 Rpm
- Static Torque：200nm
- Working Air Pressuretmpat0.4-0.63 Free：0.5MPa
- Rated Rotate Speed：190rpm
- Rated Torque：120nm
- Power Output：2.1-2.8kw
- Air Consumption：3.5m3,Min
- Maximum Push Force：8.2kn
- Flushing Water Pressure：0.6-1.2MPa
- Transport Package：Carton Box, Plastic Bagsor as Your Payment
- Specification：CE
- Trademark：China Coal
- Origin：China
- Production Capacity：1000 Sets Per Month
Description
Φ25-32Leg Type I II III I II III I II III I II III Leg propulsion kN 5.2 6.7 9.8 5.2 6.7 9.8 5.2 6.7 9.8 5.2 6.7 9.8 Overall Max.height mm 2450 3050 3650 2566 3046 3614 2552 3032 3600 2540 3015 3600 Overall Min.height mm 1185 1268 1418 1189 1309 1451 1175 1298 1437 1365 1725 2145 Weight Kg 44 46 49 45 47 49 48 50 52 50 52 55

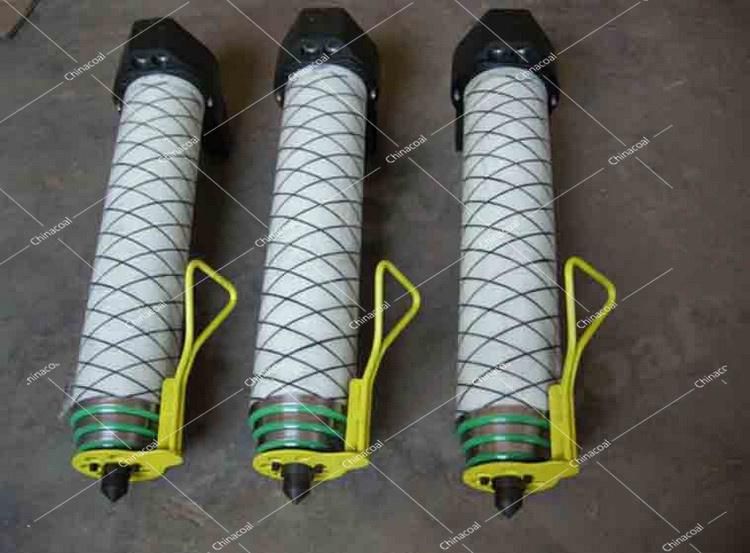

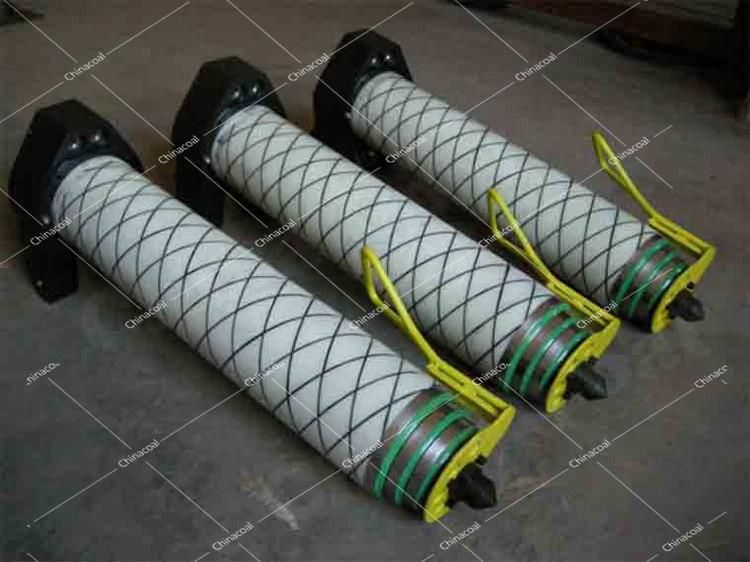

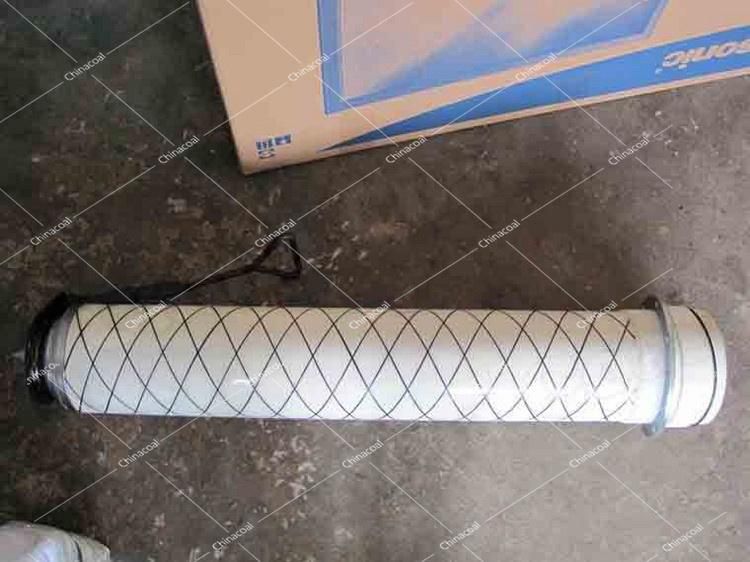

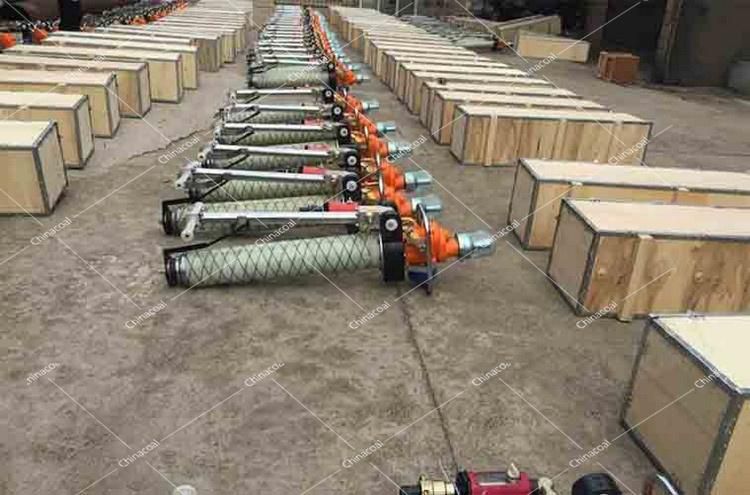

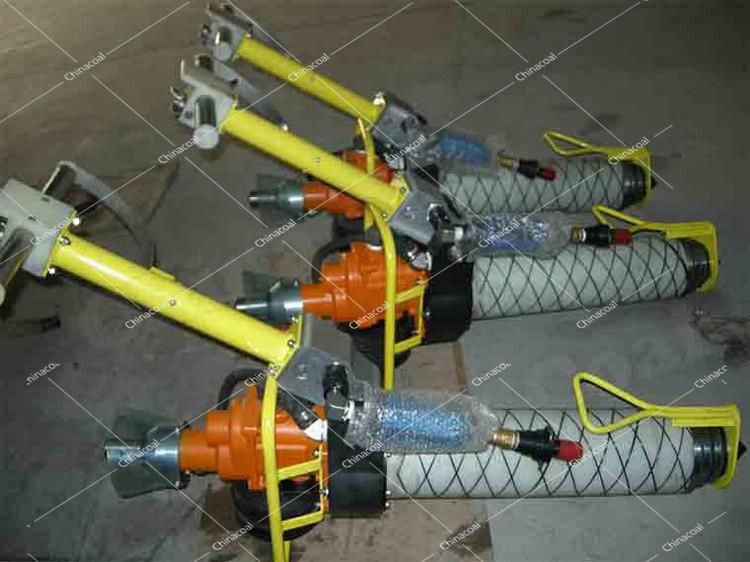

Pictures of Convenient Operation And Maintenance Mqt-85/1.8 Anchor Drilling Machine Pneumatic Roof Bolter
