Fy-260 Crawler Full Hydraulic Air Compressor Water Drilling Machine

Changsha Miracleland Import & Export Co., Ltd.
  • Warranty：1 Year
  • Certification：CE, ISO 9001:2008

Base Info

  • Model NO.：FY-260
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：140-305mm
  • Drill Hole Depth：260m
  • Bit Type：DTH Bit
  • Drilling Way：DTH Drill
  • Type：Crawler
  • Power：70kw
  • Engine Brand：FAW Liberation Xichai or Yuchai
  • Stability：Good
  • Quality：High Quality
  • Transport Package：Plastic Film
  • Specification：4000x1850x2300mm
  • Trademark：FY
  • Origin：Changsha, Hunan, China
  • HS Code：8430412900
  • Production Capacity：10 Sets,Month
  • Package size per unit product：400.00cm * 185.00cm * 230.00cm
  • Gross weight per unit product：6600.000kg

Description

FY-260 Multi-function crawler hydraulic water well drilling rig technical figuresDrilling depth260mDrilling diameterΦ140-Φ305mmWorking air pressure1.7-3.0MPaAir consumption17-30m3/minDrilling pipe diameterΦ76, Φ89mmLength of drill pipe1.5m, 2.0m, 3.0mOne push length3.3mTramming speed2.5km/hClimbing ability (Max.)30°Rig lifting force15THoisting  force of winch1.5TRotation speed45-70 rpmThe penetration efficiency10-15m/hRotation torque4000-5300 N.mPower70 KwWeight6.5TDimension4000x1850x2300mm

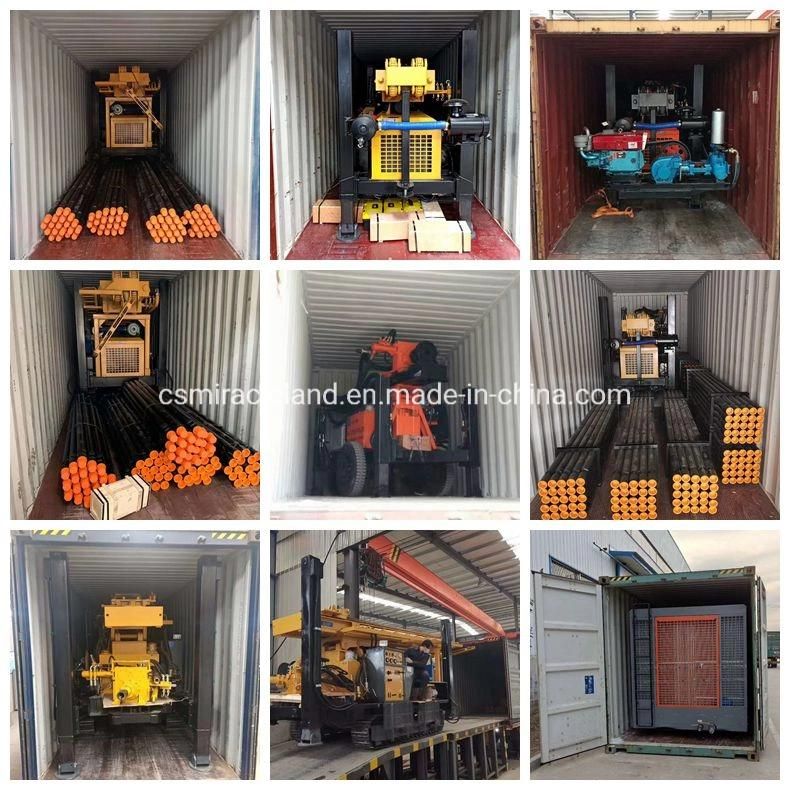

Packaging & Shipping:

Fy-260 Crawler Full Hydraulic Air Compressor Water Drilling Machine
