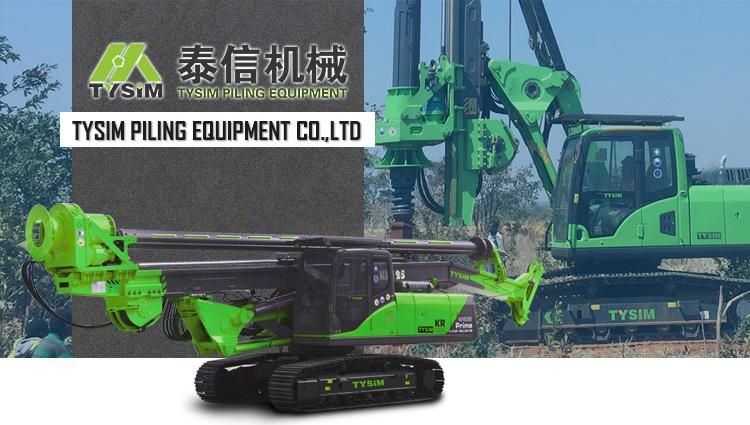

Max Drilling Diameter 1500mm Kr150c Excavator Drilling Machine Rotary Drilling Rig Bore Pile Rig

TYSIM Piling Equipment Co., Ltd.
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：50-70m
  • Drilling Way：Rotary
  • Type：Crawler

Base Info

  • Model NO.：KR150C
  • Torque：150kn.M
  • Max. Diameter：1300,1500 mm
  • Max. Drilling Depth：42m(Lock), 52 M(Friction Kelly Bar)
  • Max. Crowd Pressure：100 Kn
  • Max. Crowd Pull：150 Kn
  • Main Winch Line Pull：110 Kn
  • Operating Height：15900 mm
  • Operating Width：3180mm
  • Transport Package：Bulk Pack
  • Specification：38 t
  • Trademark：tysim
  • Origin：Jiangsu, China
  • HS Code：8431499900
  • Production Capacity：30pieces,Month

Description

Basic Info.

Model NO. KR150C Torque 150kn.M Max. Diameter 1300/1500 mm Max. Drilling Depth 42m(Lock)/ 52 M(Friction Kelly Bar) Max. Crowd Pressure 100 Kn Max. Crowd Pull 150 Kn Main Winch Line Pull 110 Kn Operating Height 15900 mm Operating Width 3180mm Transport Package Bulk Pack Specification 38 t Trademark tysim Origin Jiangsu, China HS Code 8431499900 Production Capacity 30pieces/Month

Product Description

Max Drilling Diameter 1500mm Kr150c Excavator Drilling Machine Rotary Drilling Rig Bore Pile Rig
Technical Specification
TypeKR150C
Torque150 KN.m
Max. diameter1300/1500 mm
Max. drilling depth42 m(Lock)/ 52 m(Friction kelly bar)
Speed of rotation7~26 rpm
Max. crowd pressure100 kN
Max. crowd pull150 kN
Main winch line pull110 kN
Main winch line speed78 m/min
Auxiliary winch line pull60 kN
Auxiliary winch line speed60 m/min
Stroke(crowd system)3800 mm
Mast inclination(lateral)±3°
Mast inclination(forward)5°
Max. operating pressure35 MPa
Pilot pressure3.9 MPa
Travel speed2.8 km/h
Traction force205 kN
Operating height15900 mm
Operating width3180mm
Transport height3635 mm
Transport width3180 mm
Transport length14765mm
Overall weight38 t
Max Drilling Diameter 1500mm Kr150c Excavator Drilling Machine Rotary Drilling Rig Bore Pile Rig

Max Drilling Diameter 1500mm Kr150c Excavator Drilling Machine Rotary Drilling Rig Bore Pile Rig

Max Drilling Diameter 1500mm Kr150c Excavator Drilling Machine Rotary Drilling Rig Bore Pile Rig

Max Drilling Diameter 1500mm Kr150c Excavator Drilling Machine Rotary Drilling Rig Bore Pile RigMax Drilling Diameter 1500mm Kr150c Excavator Drilling Machine Rotary Drilling Rig Bore Pile Rig
Max Drilling Diameter 1500mm Kr150c Excavator Drilling Machine Rotary Drilling Rig Bore Pile Rig
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 20 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.

FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?

The warranty period for new machine is 1 year or 2000 working hours, whichever comes first will be applied.

Please contact with us for detailed Warranty Regulation.

Q2: What's your service ?

We can offer professional technical support and good after-sale service to you.

Modification methods will be different according to different models and configurations of your owned excavators.

Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.

Before modifying, you need to confirm technical specification.
